Nozzle Cutting ANM 5/64" Capacity 70-100mm
SKU:
10025327

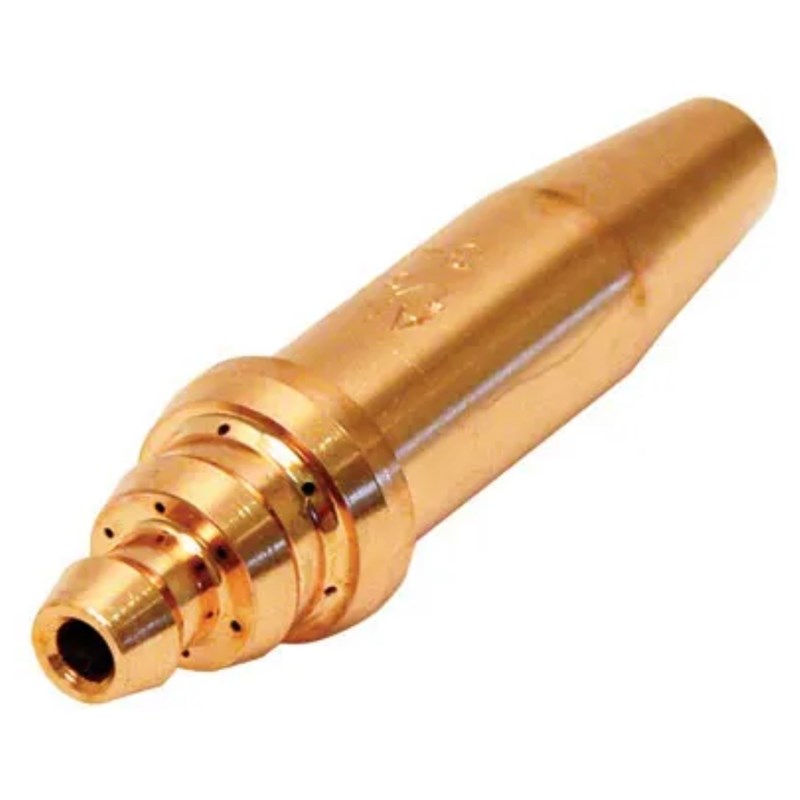

The 5/64" (2.0mm) ANM Acetylene Cutting Nozzle is a heavy-duty oxy-acetylene cutting nozzle designed for controlled cutting and profiling of thick mild steel plate. Its 2.0mm cutting orifice and robust one-piece copper construction provide the high oxygen flow and thermal durability required for demanding fabrication, structural engineering and heavy machinery repair applications.
Features & Benefits
» Designed for heavy-duty oxy-acetylene cutting and profiling of thick mild steel
» Suitable for material thicknesses from approximately 70mm to 100mm
» 2.0mm central cutting orifice delivers a powerful, concentrated oxygen stream for deep-section cutting
» Precision outer flame passages provide effective and consistent pre-heating of the workpiece
» One-piece tellurium copper construction provides excellent heat dissipation and durability under high thermal loads
» Precision metal-to-metal seating helps provide a secure, gas-tight connection with compatible torch heads
» Designed for use with high-capacity NM-style industrial cutting torches and cutting attachments
» Suitable for structural fabrication, heavy engineering, machinery repair and steel processing applications
» Available in standard ANM and extended ANME / ANM-L configurations to suit different cutting equipment
Technical Specifications
» Nozzle Type: ANM
» Nozzle Size: 5/64"
» Nominal Orifice: 2.0mm
» Cutting Capacity: 70-100mm
» Gas Compatibility: Oxy-Acetylene
» Material: Tellurium Copper
» Construction: One-Piece
» Standard Nozzle Length: 76mm
» Extended ANME / ANM-L Length: 88mm
» Seat Design: Precision-Ground Metal-To-Metal
» Recommended Oxygen Pressure: 3.5-4.5 Bar
» Recommended Acetylene Pressure: 0.20-0.28 Bar
» Torch Compatibility: NM-Style Cutting Torches And Heavy-Duty Cutting Attachments
