Nozzle Cutting ANM 3/32" Capacity 90-150mm
SKU:
10025328

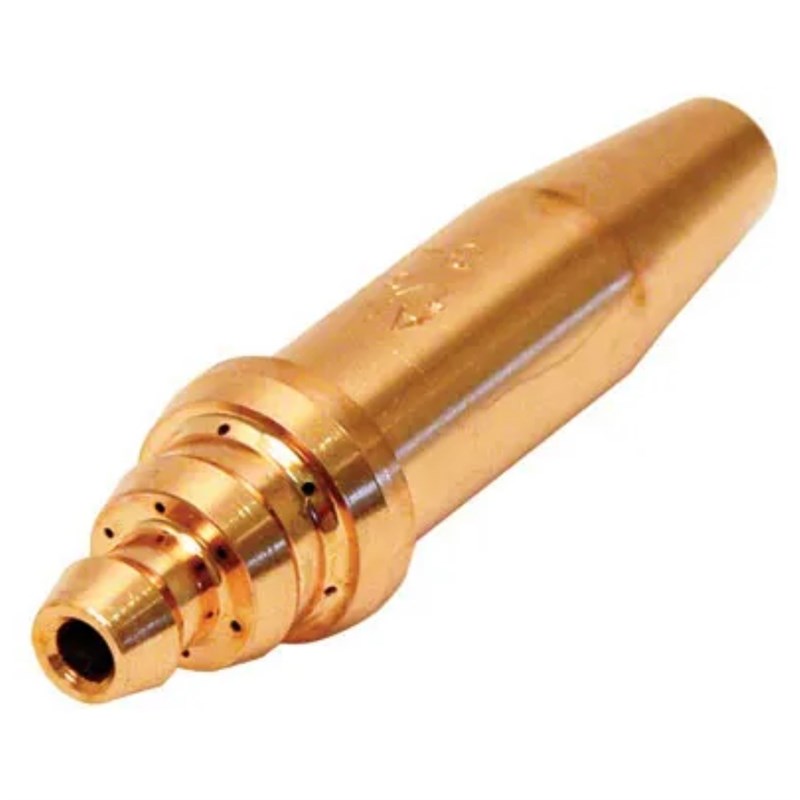

The 3/32" (2.4mm) ANM Acetylene Cutting Nozzle is a heavy-duty oxy-acetylene cutting nozzle designed for controlled cutting of thick mild steel plate, structural sections and steel blocks. Its large 2.4mm cutting orifice and robust one-piece copper construction provide the concentrated oxygen flow and thermal durability required for demanding industrial cutting applications.
Features & Benefits
» Heavy-duty nozzle designed for oxy-acetylene cutting of thick mild steel sections
» Suitable for material thicknesses from approximately 90mm to 150mm
» 2.4mm central cutting orifice delivers a powerful, concentrated oxygen stream for deep-section cutting
» Precision outer flame passages provide effective pre-heating before the cutting oxygen is introduced
» One-piece tellurium copper construction provides excellent heat dissipation and durability
» Precision metal-to-metal seating helps provide a secure, gas-tight connection with compatible torch heads
» Designed for use with high-capacity NM-style industrial cutting torches and cutting attachments
» Suitable for heavy fabrication, structural steelwork, maintenance and steel processing applications
» Available in standard ANM and extended ANME configurations to suit different cutting requirements
Technical Specifications
» Nozzle Type: ANM
» Nozzle Size: 3/32"
» Nominal Orifice: 2.4mm
» Cutting Capacity: 90-150mm
» Gas Compatibility: Oxy-Acetylene
» Material: Tellurium Copper
» Construction: One-Piece
» Standard Nozzle Length: 76mm
» Extended ANME Nozzle Length: 88mm
» Seat Design: Precision-Ground Metal-To-Metal
» Recommended Oxygen Pressure: 4.0-4.8 Bar
» Recommended Acetylene Pressure: 0.20-0.28 Bar
» Torch Compatibility: NM-Style Cutting Torches And Heavy-Duty Cutting Attachments
