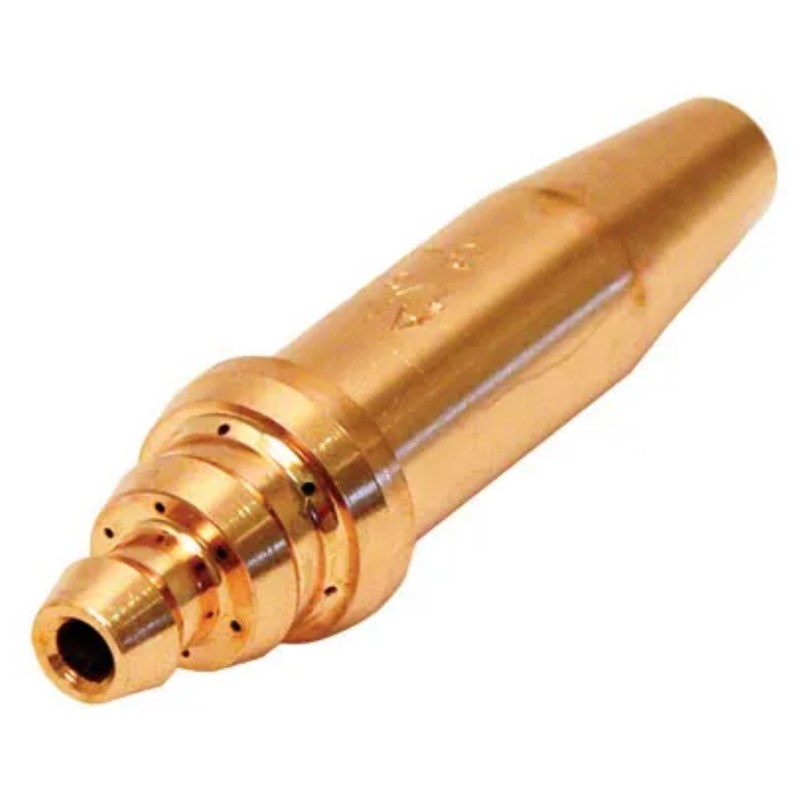

Nozzle Cutting ANM 1/8" Capacity 190-300mm
SKU:
10025329
The 1/8" (3.2mm) ANM Acetylene Cutting Nozzle is a heavy-duty oxy-acetylene cutting nozzle designed for thermal cutting of exceptionally thick mild steel and structural sections. Its large 3.2mm cutting orifice and robust one-piece copper construction make it suitable for demanding industrial cutting, heavy fabrication, foundry and scrap-processing applications.
In Stock
Typical Lead Time: 19 Days
Features & Benefits
» Heavy-duty nozzle designed for oxy-acetylene cutting of exceptionally thick mild steel
» Suitable for material thicknesses from approximately 190mm to 300mm
» Large 3.2mm cutting orifice provides the high oxygen flow required for deep-section cutting
» Outer pre-heat passages provide a powerful and stable oxy-acetylene flame for bringing heavy sections to cutting temperature
» One-piece tellurium copper construction provides excellent heat dissipation under demanding thermal loads
» Precision metal-to-metal seating provides a secure connection to compatible NM-style torch heads
» Designed for use with high-capacity industrial cutting torches and cutting attachments
» Suitable for heavy fabrication, steel processing, foundry work and scrap cutting
» Available in standard and extended nozzle configurations to suit different cutting equipment
Technical Specifications
» Nozzle Type: ANM
» Nozzle Size: 1/8"
» Nominal Orifice: 3.2mm
» Cutting Capacity: 190-300mm
» Gas Compatibility: Oxy-Acetylene
» Material: Tellurium Copper
» Construction: One-Piece
» Standard Nozzle Length: 76mm
» Extended ANME Nozzle Length: 88mm
» Seat Design: Precision-Turned Metal-To-Metal
» Recommended Oxygen Pressure: 4.5-7.0 Bar
» Recommended Acetylene Pressure: 0.28-0.35 Bar
» Torch Compatibility: Heavy-Duty NM-Style Cutting Torches And Cutting Attachments
