Nozzle Cutting PNM 1/32" Capacity 3-6mm
SKU:
10025330

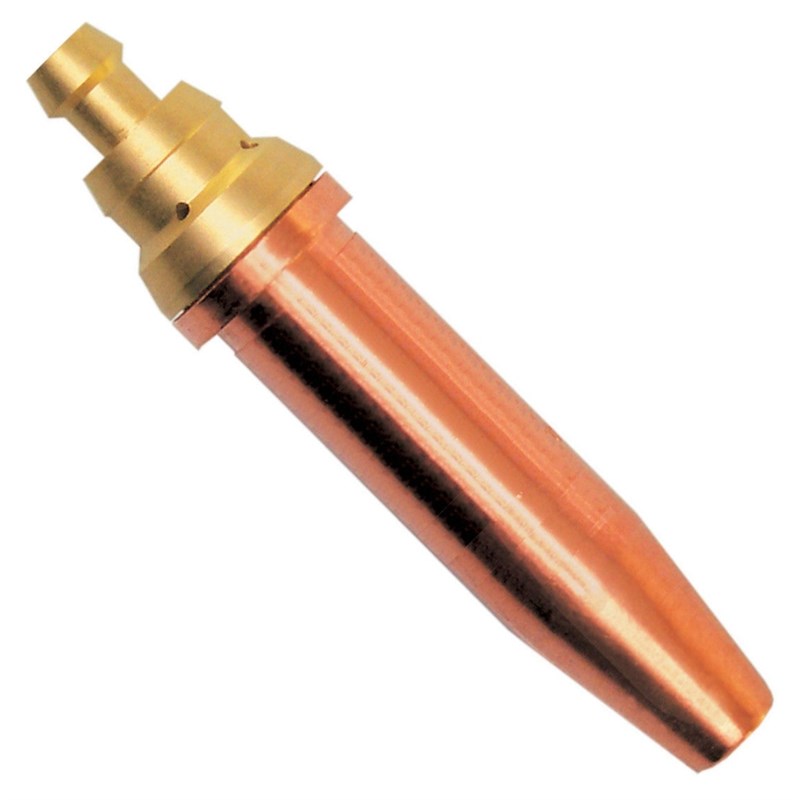

The 1/32" (0.8mm) PNM Propane Cutting Nozzle is a precision oxy-propane cutting nozzle designed for thin sheet and light mild steel applications. Its two-piece brass and copper construction provides stable pre-heating performance and controlled cutting of material from approximately 3mm to 6mm thick.
Features & Benefits
» Designed for precision oxy-propane cutting of thin mild steel plate
» Suitable for cutting material from approximately 3mm to 6mm thick
» Two-piece construction is specifically designed to provide stable flame characteristics when using propane
» Splined brass inner core promotes effective gas distribution and consistent pre-heating
» Copper outer sleeve provides excellent heat dissipation and durability during repeated cutting operations
» Small 0.8mm nozzle size supports controlled cutting with reduced heat input and distortion on thinner materials
» Precision metal-to-metal seating provides a secure connection with compatible NM-style cutting equipment
» Suitable for fabrication, sheet metal processing, maintenance and general engineering applications
» Compatible with a wide range of standard NM-style hand cutting torches and cutting attachments
Technical Specifications
» Nozzle Type: PNM
» Nozzle Size: 1/32"
» Nominal Orifice: 0.8mm
» Cutting Capacity: 3-6mm
» Gas Compatibility: Oxygen And Propane
» Construction: Two-Piece
» Inner Material: Brass
» Outer Material: Copper
» Inner Profile: Splined
» Standard Nozzle Length: 72-76mm
» Extended PNME / PNM-L Length: 88mm
» Seat Design: 3-Taper Metal-To-Metal
» Recommended Oxygen Pressure: 1.5-2.1 Bar
» Recommended Propane Pressure: 0.20-0.30 Bar
» Torch Compatibility: NM-Style Cutting Torches And Cutting Attachments
