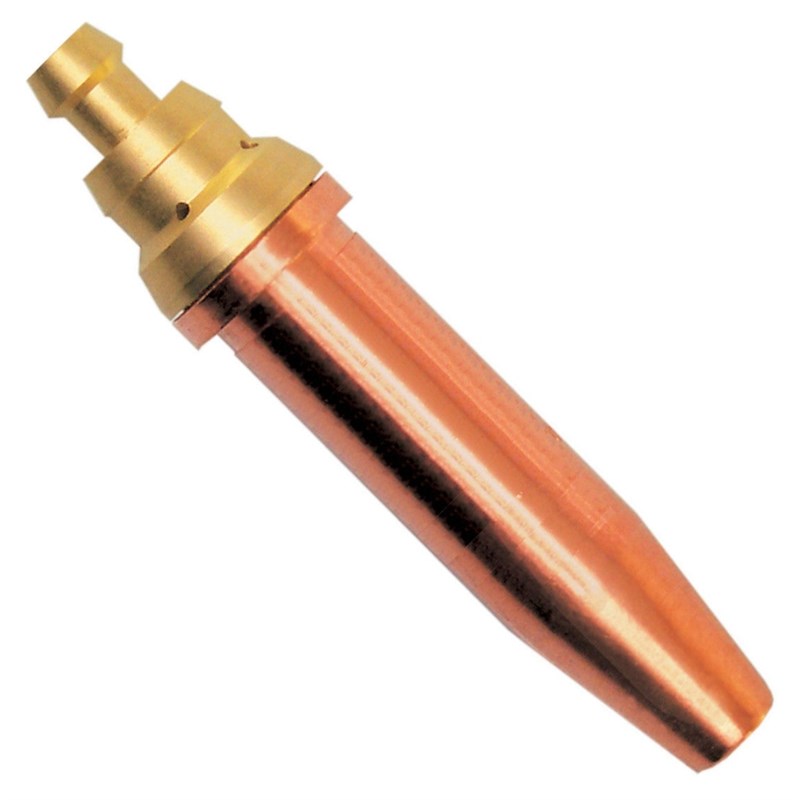

Nozzle Cutting PNM 3/64" Capacity 5-12mm
SKU:
10025331
The 3/64" (1.2mm) PNM Propane Cutting Nozzle is a precision oxy-propane cutting nozzle designed for general fabrication, workshop and automotive applications. Its two-piece brass and copper construction provides stable pre-heating and controlled cutting performance on mild steel from approximately 5mm to 12mm thick.
Features & Benefits
» Designed for precision oxy-propane cutting of light to medium mild steel plate
» Suitable for cutting material from approximately 5mm to 12mm thick
» Ideal for general fabrication, workshop maintenance and automotive repair applications
» Two-piece construction provides stable flame characteristics and effective gas mixing when using propane
» Multi-spline brass inner core promotes efficient gas distribution and consistent pre-heating
» Tellurium copper outer shell provides excellent heat dissipation and durability
» 1.2mm central orifice provides a concentrated cutting oxygen jet for controlled, narrow cuts
» Precision metal-to-metal seating provides a secure connection with compatible NM-style cutting equipment
» Compatible with a wide range of NM-style hand cutting torches and cutting attachments
» Available in standard and extended configurations for manual and mechanised cutting applications
Technical Specifications
» Nozzle Type: PNM
» Nozzle Size: 3/64"
» Nominal Orifice: 1.2mm
» Cutting Capacity: 5-12mm
» Gas Compatibility: Oxygen And Propane
» Construction: Two-Piece
» Inner Material: Brass
» Outer Material: Tellurium Copper
» Inner Profile: Multi-Spline
» Standard Nozzle Length: 76mm
» Extended PNME / PNM-L Length: 88mm
» Seat Design: 3-Taper Metal-To-Metal
» Recommended Oxygen Pressure: 2.0-2.1 Bar
» Recommended Propane Pressure: 0.20-0.30 Bar
» Cutting Speed Reference: 450-500mm/Min
» Torch Compatibility: NM-Style Cutting Torches And Cutting Attachments
