Nozzle Cutting PNM 1/16" Capacity 10-75mm
SKU:
10025332

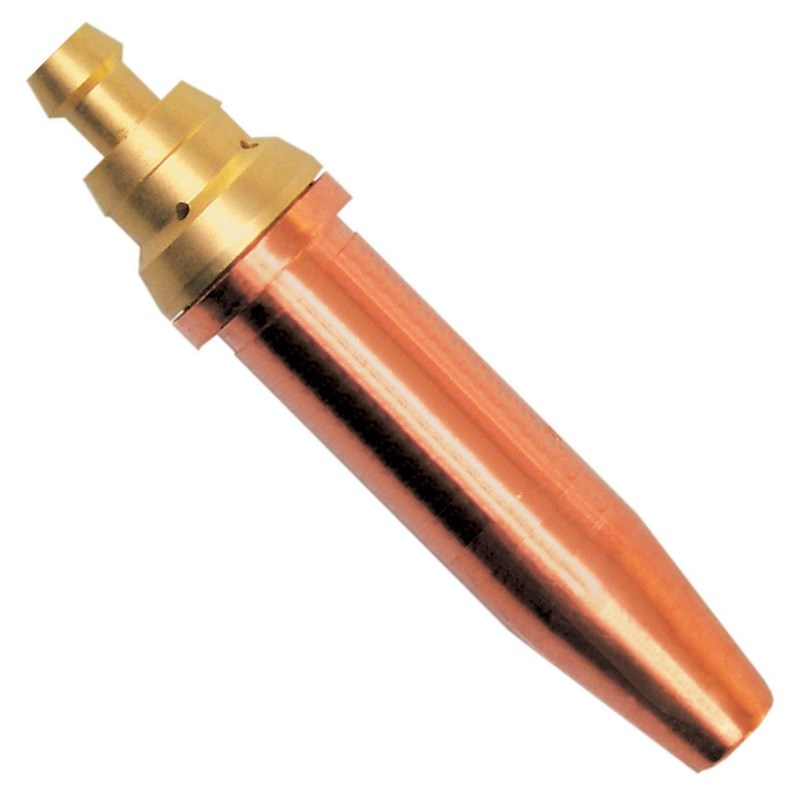

The 1/16" (1.6mm) PNM Propane Cutting Nozzle is a heavy-duty oxy-propane cutting nozzle designed for general-purpose cutting and profiling of mild steel plate. Its two-piece brass and copper construction provides stable pre-heating performance for cutting material from approximately 10mm to 75mm thick.
In Stock
Typical Lead Time: 22 Days
Features & Benefits
» Designed for professional oxy-propane cutting and profiling applications
» Suitable for cutting mild steel plate from approximately 10mm to 75mm thick
» Two-piece nozzle construction is specifically designed to provide stable flame characteristics when using propane
» Fluted brass inner core provides controlled fuel and oxygen distribution for effective pre-heating
» Tellurium copper outer shell provides excellent heat dissipation and durability under demanding cutting conditions
» Precision metal-to-metal seating provides a secure connection with compatible NM-style cutting equipment
» Suitable for structural fabrication, general engineering, steel processing and maintenance applications
» Compatible with a wide range of standard NM-style industrial hand cutting torches and cutting attachments
» Available in standard and extended configurations to suit manual and mechanised cutting applications
Technical Specifications
» Nozzle Type: PNM
» Nozzle Size: 1/16"
» Nominal Orifice: 1.6mm
» Cutting Capacity: 10-75mm
» Gas Compatibility: Oxygen And Propane
» Construction: Two-Piece
» Inner Material: Brass
» Outer Material: Tellurium Copper
» Standard Nozzle Length: 76mm
» Extended PNME / PNM-L Length: 88mm
» Seat Design: 3-Taper Metal-To-Metal
» Recommended Oxygen Pressure: 3.0-3.5 Bar
» Recommended Propane Pressure: 0.20-0.35 Bar
» Torch Compatibility: NM-Style Cutting Torches And Heavy-Duty Cutting Attachments
