Mig Torch MB36KD Evo 4Pro 4Mtr 0140530 Binzel
SKU:
10053599

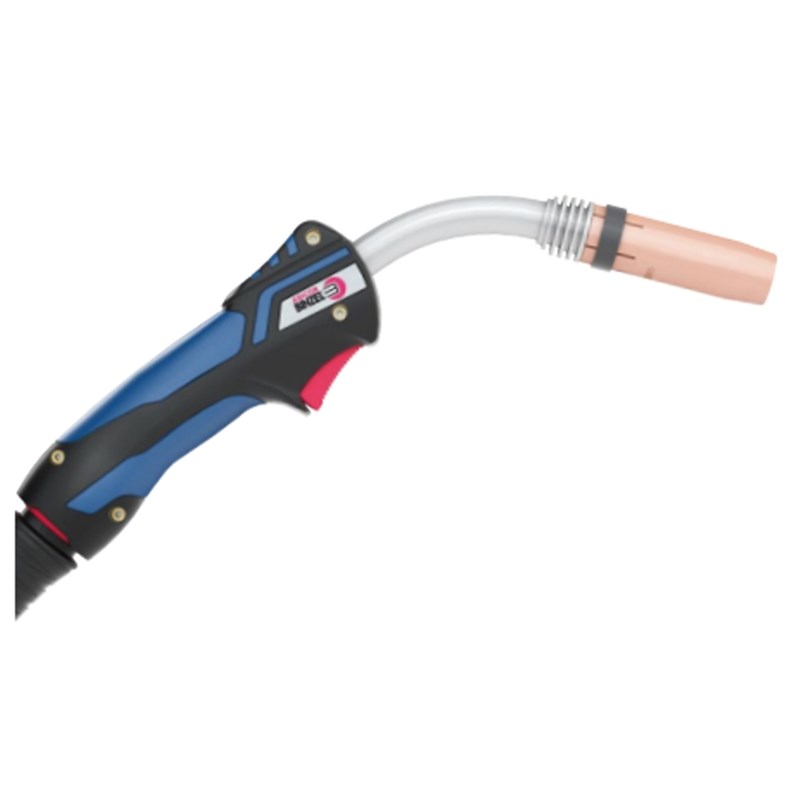

The Abicor Binzel MB EVO PRO 36 4m MIG Welding Torch is a professional air-cooled MIG/MAG torch designed for demanding fabrication applications requiring high performance and comfortable handling. Rated up to 320A with CO₂ and 290A with mixed gas at a 60% duty cycle, it supports welding wires from 0.8mm to 1.6mm. The lightweight 4m Bikox LW cable, ergonomic two-component handle and integrated ball joint help reduce operator fatigue, while the proven MB36KD front-end consumable system provides durable and dependable performance in professional welding environments.
Features & Benefits
» Professional Abicor Binzel MB EVO PRO 36 torch designed for demanding manual MIG/MAG welding applications
» Rated up to 320A with CO₂ and 290A with mixed shielding gas for heavy-duty fabrication work
» 60% duty cycle provides dependable performance during intensive professional welding operations
» Lightweight Bikox LW coaxial cable helps reduce overall torch weight and operator wrist fatigue
» 4m cable assembly provides excellent working reach around larger fabrications and workpieces
» Premium two-component handle incorporates non-slip grip zones for secure and comfortable handling
» Integrated mechanical ball joint improves cable flexibility while helping maintain balanced torch positioning
» Fixed 45° swan neck provides practical access and control across a wide range of welding positions
» Heavy-duty MB36KD consumable system provides proven durability and straightforward replacement of front-end wear parts
» Euro-Connector interface enables convenient connection to compatible professional MIG/MAG welding machines
Technical Specifications
» Brand: Abicor Binzel
» Product Type: MIG/MAG Welding Torch
» Series: MB EVO PRO 36
» Part Number: 014.0530
» Cooling Type: Air / Gas-Cooled
» Torch Type: Manual
» Neck Configuration: Fixed / Rigid 45° Swan Neck
» Rated Current With CO₂: 320A
» Rated Current With Mixed Gas M21: 290A
» Duty Cycle: 60%
» Wire Size Capacity: 0.8mm To 1.6mm
» Cable Length: 4m
» Cable Type: Bikox LW
» Machine Connection: Euro-Connector
» Handle Type: MB EVO PRO Two-Component Handle
» Contact Tip Thread: M8
» Contact Tip Length: 30mm
» Tip Holder: M8 Contact Tip Adaptor
» Tip Holder Part Numbers: 142.0020 / 142.0024
» Gas Diffuser Type: Push-On Multi-Port Radial
» Compatible Gas Diffusers: 014.0261 / 014.0021
» Gas Nozzle Type: Push-On With Retention Spring
» Consumable System: MB36KD
» Welding Process: MIG/MAG
» Standard: EN 60974-7
