Contact Tip 1.0mm M8 1400313 Binzel (Sold Ea)
SKU:
10053609

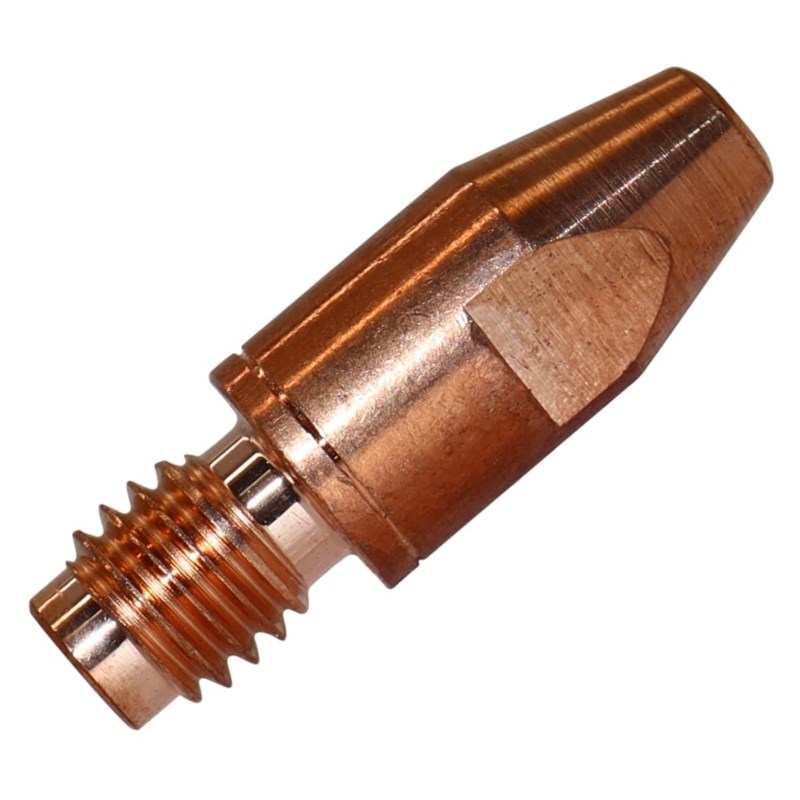

The Abicor Binzel 140.0313 M8 1.0mm MIG Contact Tip is a standard-duty E-Cu copper consumable designed to guide 1.0mm welding wire and efficiently transfer welding current through the torch. Featuring an M8 thread, 30mm length and 10mm body diameter, it is suitable for compatible higher-amperage Binzel MIG/MAG torch systems.
Features & Benefits
» Genuine Abicor Binzel contact tip designed for 1.0mm MIG/MAG welding wire
» E-Cu electrolytic copper construction provides high electrical and thermal conductivity for efficient current transfer
» Precisely sized wire bore provides consistent guidance of the welding wire towards the weld pool
» M8 threaded connection provides a robust interface with compatible contact tip holders
» 30mm length and 10mm body diameter suit compatible higher-amperage MIG/MAG torch configurations
» Suitable for common mild steel and stainless steel welding wires
» Compatible with a range of MB and ABIMIG air-cooled and water-cooled torch configurations when fitted with the appropriate M8 tip holder
» Suitable for structural steelwork, fabrication, maintenance and production welding applications
Technical Specifications
» Brand: Abicor Binzel
» Part Number: 140.0313
» Product Type: MIG/MAG Contact Tip
» Duty Type: Standard Duty
» Wire Diameter: 1.0mm
» Imperial Wire Size: Approximately 0.040"
» Thread Size: M8
» Overall Length: 30mm
» Body Diameter: 10mm
» Material: E-Cu Electrolytic Copper
» Compatible Wire Types: Mild Steel And Stainless Steel
» Compatible Air-Cooled Torch Series: MB 36 / MB 36KD / MB GRIP 36 / MB EVO PRO 36 / MB 40
» Compatible Water-Cooled Torch Series: MB 501 / MB 501D / MB EVO PRO 501 / ABIMIG W 555
» Application: MIG/MAG Welding Wire Guidance And Current Transfer
