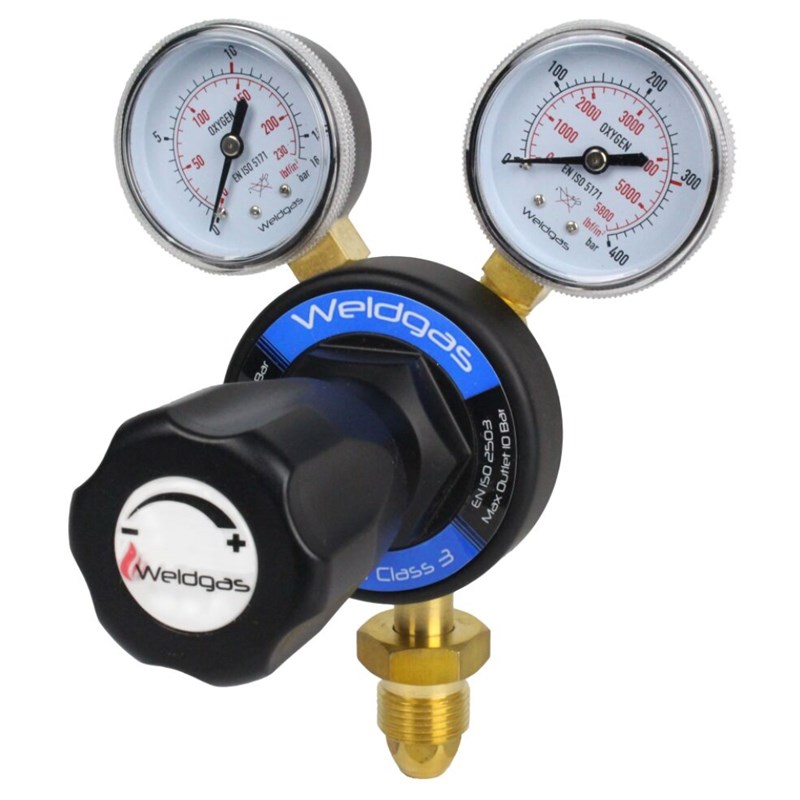

Regulator Oxygen S/Stage 2 Gauge B/Entry GAS1025
SKU:
10025243
The Weldgas GAS1025 Single Stage 2 Gauge Oxygen Regulator is a premium heavy-duty regulator designed for controlled delivery of compressed oxygen in professional welding, cutting, heating and brazing applications. Featuring twin 50mm gauges, a base-entry configuration and an adjustable 0–10bar outlet pressure range, it provides dependable pressure control for demanding industrial use.
Features & Benefits
» Premium single-stage regulator designed specifically for professional compressed oxygen applications
» Suitable for welding, cutting, heating and brazing operations in demanding workshop and industrial environments
» Rated for inlet pressures up to 300bar for use with compatible high-pressure industrial oxygen cylinders
» Adjustable 0–10bar outlet pressure range provides controlled oxygen delivery across a variety of applications
» Twin 50mm high-contrast gauges clearly display cylinder contents pressure and regulated outlet pressure
» Base-entry configuration is designed for compatible cylinders with vertically positioned outlet valves
» Encapsulated valve design with PCTFE/PTFE seating provides dependable pressure regulation
» Hot-forged brass body provides robust construction for demanding professional environments
» Fibre-reinforced neoprene diaphragm provides responsive pressure control during operation
» G 3/8in BSP outlet provides compatibility with suitable oxygen hoses and flashback arrestors
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Manufactured in accordance with BS EN ISO 2503 with gauges conforming to BS EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS1025
» Product Type: Oxygen Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Gas Type: Compressed Oxygen
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Entry Configuration: Base / Bottom Entry
» Inlet Connection: BS 341 No. 3
» Inlet Thread: G 5/8in BSP Right-Hand Female
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Regulated Outlet Pressure
» Body Material: Hot-Forged Brass
» Valve Seat Material: PCTFE/PTFE
» Diaphragm Material: Fibre-Reinforced Neoprene
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
