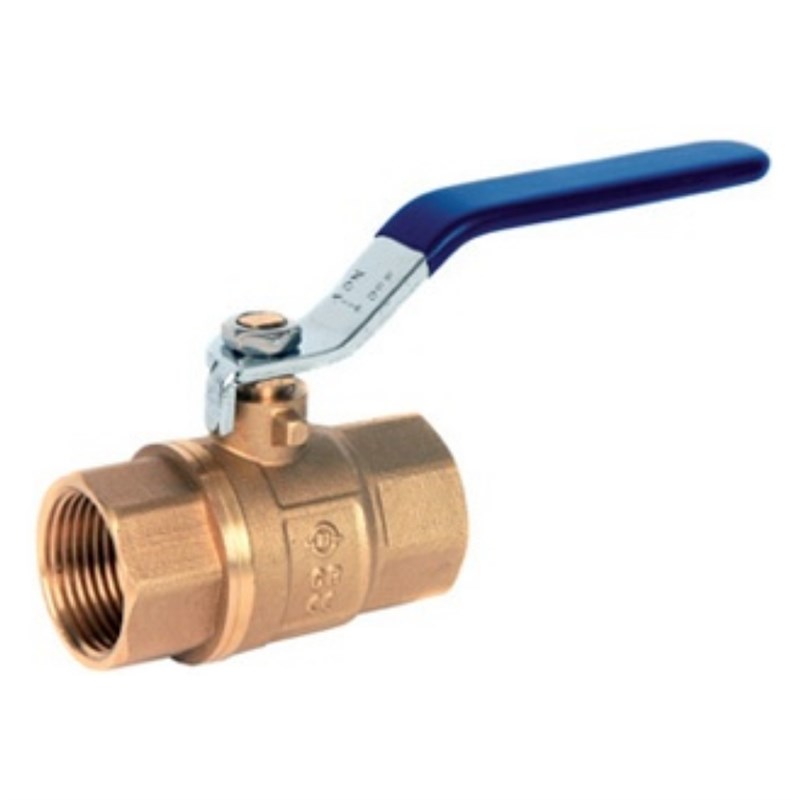

Ball Valve Brass 1/2" BSP 1515023004
SKU:
10014690
The STAUFF 1/2" BSP Brass Ball Valve is a full-bore isolation valve designed for low-to-medium pressure fluid control applications. Featuring female BSPP connections, a quarter-turn lever handle and durable PTFE sealing components, it provides reliable shut-off performance for water, compressed air, glycol mixtures, neutral fluids and light oils.
Features & Benefits
» Full-bore design maintains unrestricted flow and helps minimise pressure loss
» Female BSPP connections provide straightforward installation into compatible pipework
» Quarter-turn lever enables fast and simple fluid isolation
» Forged brass body offers excellent strength and durability
» Nickel or chrome-plated exterior improves resistance to corrosion and wear
» Chrome-plated brass ball provides smooth operation and reduced turning resistance
» Virgin PTFE seats and stem packing deliver dependable leak-resistant sealing
» Suitable for hot and cold water, compressed air, glycol mixtures, neutral fluids and light mineral oils
» PVC-sleeved steel handle improves grip and operator comfort
» Ideal for industrial processing, utility services, water distribution and general fluid routing
Technical Specifications
» Brand: STAUFF
» Part Number: 1515023004
» Product Type: Brass Ball Valve
» Product Series: Low-Pressure Ball Valve Series
» Valve Size: 1/2"
» Connection Type: Female x Female
» Thread Size: G 1/2" BSPP
» Thread Standard: ISO 228-1
» Thread Pitch: 14 TPI
» Bore Type: Full Bore
» Operation: Manual Quarter-Turn Lever
» Body Material: Forged Brass
» Body Finish: Nickel Or Chrome Plated
» Ball Material: Chrome-Plated Brass
» Seat Material: Virgin PTFE
» Stem Packing Material: PTFE
» Handle Material: Steel With PVC Sleeve
» Maximum Working Pressure: 20–25 Bar
» Operating Temperature: -10°C To +110°C
» Suitable Media: Hot And Cold Water / Compressed Air / Glycol Mixtures / Neutral Fluids / Light Mineral Oils
