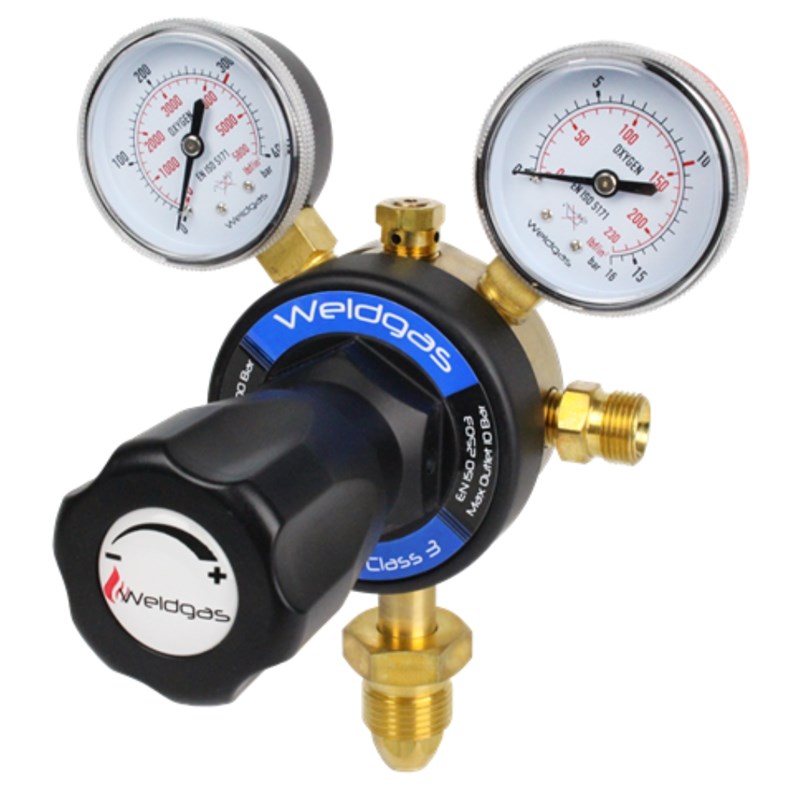

Regulator Oxygen 2 Stage 2 Gauge 10Bar GAS0022
SKU:
10025246
The Weldgas GAS0022 Multi-Stage 2 Gauge Oxygen Gas Regulator is a heavy-duty industrial regulator designed for accurate and stable control of compressed oxygen. Featuring two-stage pressure reduction, twin 50mm gauges and a 0–10bar adjustable outlet range, it provides consistent working pressure as cylinder pressure decreases.
Features & Benefits
» Heavy-duty two-stage regulator designed specifically for compressed oxygen applications
» Two-stage pressure reduction provides stable outlet pressure as cylinder contents and inlet pressure decrease
» Rated for inlet pressures up to 300bar for use with compatible high-pressure industrial oxygen cylinders
» Adjustable 0–10bar outlet pressure range supports a variety of professional gas welding and cutting requirements
» Twin 50mm high-visibility gauges display cylinder contents pressure and regulated outlet pressure
» Base-entry configuration is designed for compatible cylinders with vertically positioned outlet valves
» High-pressure piston mechanism supports dependable operation under demanding industrial service conditions
» PCTFE/PTFE valve seating provides durable and controlled pressure regulation
» Hot-forged precision-machined brass body provides robust construction for professional workshop and industrial environments
» Fibre-reinforced elastomer diaphragm provides responsive pressure control
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Manufactured and tested in accordance with BS EN ISO 2503 with gauges conforming to BS EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS0022
» Product Type: Oxygen Gas Regulator
» Regulator Type: Two Stage
» Number Of Gauges: 2
» Gas Type: Compressed Oxygen
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Entry Configuration: Base / Bottom Entry
» Inlet Connection: BS 341 No. 3
» Inlet Thread: G 5/8in BSP Right-Hand Female
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Regulated Outlet Pressure
» Body Material: Hot-Forged Brass
» Internal Mechanism: High-Pressure Piston
» Valve Seat Material: PCTFE/PTFE
» Diaphragm Material: Fibre-Reinforced Elastomer
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
