Tig Torch Body WP26FX Binzel
SKU:
10025035

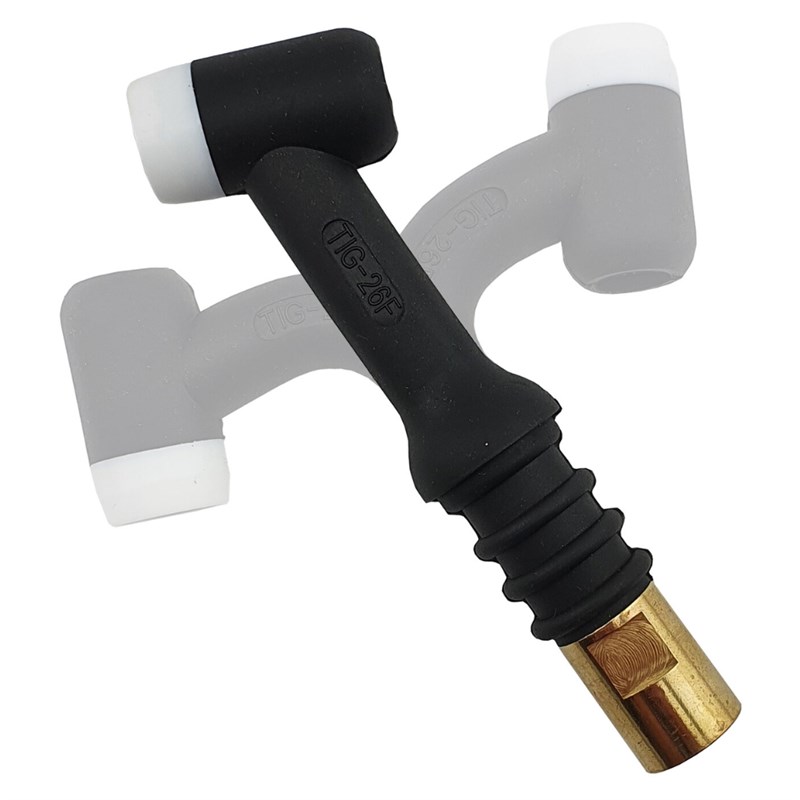

The Abicor Binzel WP26FX Flexible Air-Cooled TIG Torch Body is a heavy-duty replacement torch body designed to provide improved access and positioning in restricted welding applications. Its flexible neck can be manually adjusted to suit complex pipe joints, structural corners and awkward welding angles, while the high-temperature silicone insulation provides dependable electrical and thermal protection. Compatible with standard 17/18/26-series TIG consumables, it provides a versatile replacement or upgrade for compatible air-cooled TIG torch assemblies.
Features & Benefits
» Flexible TIG torch body designed for improved access to restricted and awkward welding positions
» Bendable neck allows the operator to adjust the torch angle to suit complex joints and workpiece geometries
» Heavy-duty air-cooled design provides dependable performance for professional TIG welding applications
» Rated up to 200A DC and 150A AC at a 60% duty cycle
» Supports tungsten electrodes from 0.5mm to 4.0mm for excellent application versatility
» High-dielectric silicone rubber insulation provides thermal protection and helps prevent electrical flash-over
» Standard 26-series front-end configuration provides compatibility with widely available TIG consumables
» Accepts compatible standard collets, collet bodies, gas lenses and threaded ceramic cups
» Screw-on gas-through-power connection provides secure integration with compatible TIG torch cable assemblies
» Field-replaceable construction allows a worn or damaged torch body to be replaced without changing the complete torch assembly
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Flexible TIG Torch Body
» Model: WP26FX / WP26F
» Torch Series: WP26
» Cooling Type: Air / Gas-Cooled
» Torch Head Style: Flexible Neck
» Maximum DC Rating: 200A At 60% Duty Cycle
» Maximum AC Rating: 150A At 60% Duty Cycle
» EN 60974-7 DC Rating: 180A At 35% Duty Cycle
» EN 60974-7 AC Rating: 130A At 35% Duty Cycle
» Electrode Diameter Capacity: 0.5mm To 4.0mm
» Connection Type: Screw-On Gas-Through-Power Threaded Connection
» Insulation Material: High-Dielectric Silicone Rubber
» Consumable Compatibility: Standard 17 / 18 / 26 Series TIG Consumables
» Welding Process: TIG / GTAW
» Standard: EN 60974-7
