Earth Cable Assembly 3Mt 50mm c/w 35-50 Plug
SKU:
10024554

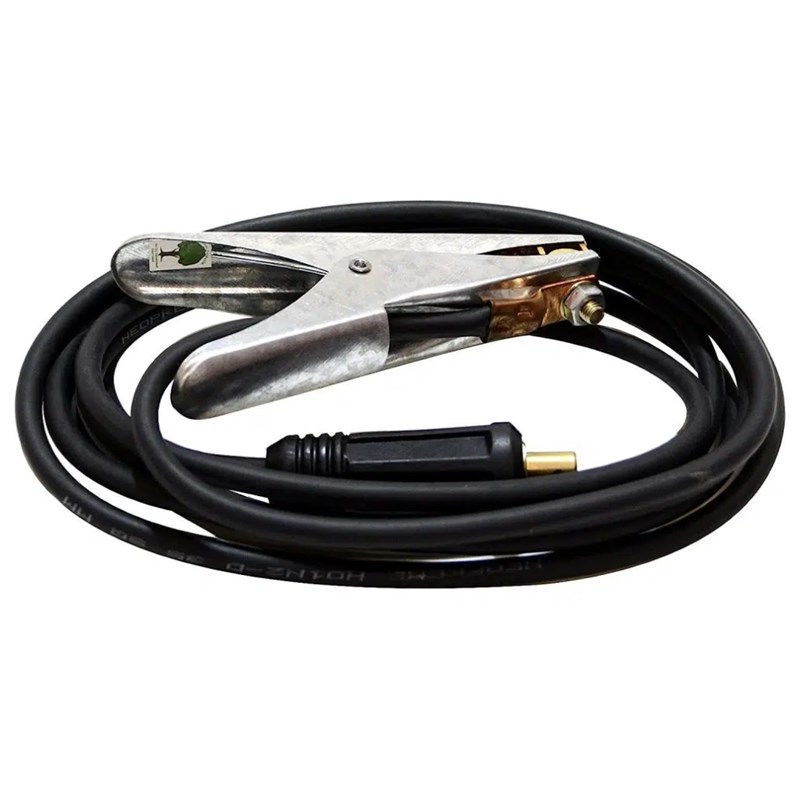

The 3-Metre 50mm² Earth Return Cable Assembly with 35-50 Dinse Plug is a heavy-duty welding lead designed to provide a secure, low-resistance electrical connection between the welding power source and workpiece. Featuring a flexible 50mm² copper cable, large-format Dinse-style machine connector and heavy-duty earth clamp, it is suitable for demanding high-amperage welding applications. The HOFR rubber cable provides excellent flexibility and resistance to heat, oil, flame and general workshop wear.
In Stock
Typical Lead Time: 12 Days
Features & Benefits
» Heavy-duty earth return cable assembly supplied ready for connection to compatible welding equipment
» 3-metre cable length provides a practical working range while helping minimise electrical resistance
» 50mm² ultra-fine stranded copper conductor provides excellent electrical conductivity and flexibility
» HOFR synthetic rubber insulation provides resistance to heat, oil and flame
» Rugged cable construction helps withstand cuts, abrasion, hot slag, ozone and demanding workshop conditions
» Large 35-50 Dinse-style male connector provides a secure machine connection
» Push-and-twist bayonet connection allows quick installation and removal from compatible welding equipment
» Heavy-duty earth clamp provides strong mechanical contact with the workpiece
» High clamping pressure helps maintain a reliable electrical return path during welding
» Low-resistance cable design helps minimise voltage drop and excessive heat build-up
» Suitable for demanding fabrication, maintenance and structural welding applications
» Suitable for high-amperage MIG, TIG and MMA welding equipment with compatible connections
Technical Specifications
» Product Type: Earth Return Cable Assembly
» Cable Length: 3 Metres
» Cable Cross-Section: 50mm²
» Conductor Material: Ultra-Fine Stranded Bare Copper
» Cable Sheathing: HOFR Synthetic Rubber
» Sheathing Properties: Heat / Oil / Flame Retardant
» Machine Connection: Male 35-50 Dinse-Style Plug
» Dinse Pin Diameter: Approximately 12.8mm / 13mm
» Connector Mechanism: Push-And-Twist Bayonet
» Workpiece Connection: Heavy-Duty Crocodile / Grip Earth Clamp
» Typical Earth Clamp Rating: 400A To 500A
» Approximate Current Capacity At 60% Duty Cycle: 345A
» Approximate Current Capacity At 100% Duty Cycle: 290A
» Suitable Welding Processes: MIG / TIG / MMA
» Cable Standard: BS EN 50525-2-81
» Connector Standard: EN 60974-12
