Regulator Inert S/St 2G 4Bar Nevoc Side GAS1038
SKU:
10071788

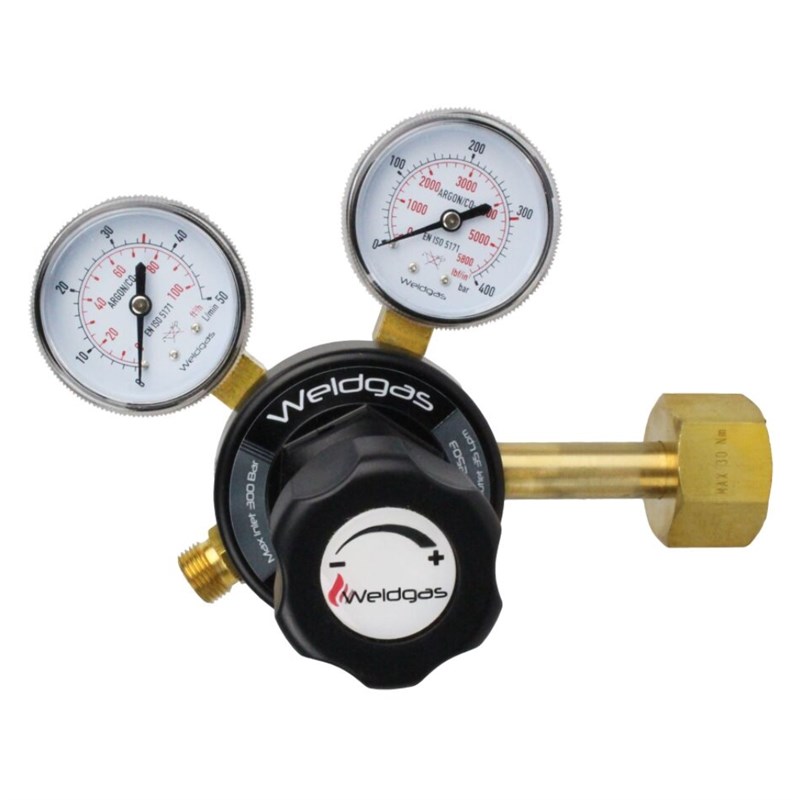

The Weldgas GAS1038 Single Stage 2 Gauge Argon NEVOC Regulator is a heavy-duty industrial gas regulator designed for controlled delivery of argon and Argon/CO2 shielding gases. Featuring a 300bar-rated NEVOC inlet, twin 50mm gauges and a side-entry configuration, it is suitable for high-pressure industrial cylinders used in professional MIG and TIG welding applications.
Features & Benefits
» Professional single-stage regulator designed for demanding MIG and TIG shielding gas applications
» NEVOC inlet connection is designed for compatible high-pressure industrial gas cylinders operating up to 300bar
» Suitable for argon and compatible Argon/CO2 shielding gas mixtures
» Encapsulated valve design with PCTFE/PTFE seating provides controlled and dependable pressure regulation
» Twin 50mm high-contrast gauges provide clear indication of cylinder contents and gas delivery
» Side-entry configuration is designed for compatible cylinders with horizontally positioned outlet valves
» Provides a controlled shielding gas flow of up to 35L/min for professional welding applications
» Hot-forged precision-machined brass body provides robust construction for demanding industrial environments
» Ergonomic adjustment handwheel allows straightforward control of the shielding gas output
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Suitable for professional fabrication, production, maintenance and repair welding environments
» Manufactured in accordance with BS EN ISO 2503 with gauges conforming to BS EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS1038
» Product Type: Argon NEVOC Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Compatible Gases: Argon And Argon/CO2 Mixtures
» Maximum Inlet Pressure: 300bar
» Maximum Outlet Pressure: 4bar
» Outlet Flow Range: 0–35L/min
» Entry Configuration: Side Entry
» Inlet Connection Type: NEVOC
» Inlet Thread: W30 x 2 Right-Hand Male
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents And Gas Delivery
» Body Material: Hot-Forged Brass
» Valve Seat Material: PCTFE/PTFE
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
