Bush 1" x 3/8" BSPT Brass
SKU:
10013113

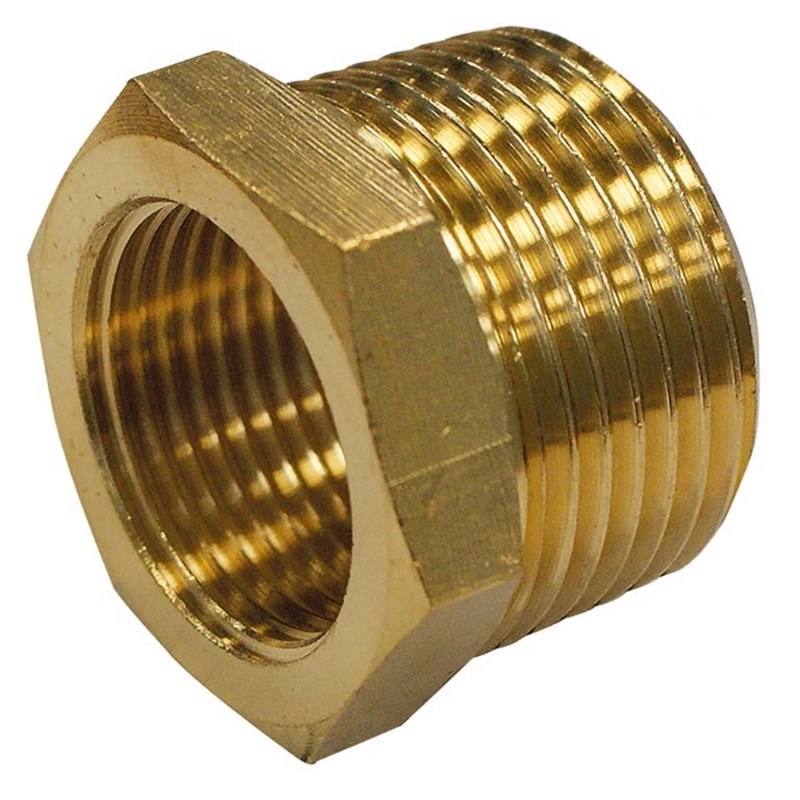

The Tom Parker 1" Male x 3/8" Female BSPT Brass Reducing Bush is a compact threaded adaptor designed to reduce a 1" BSPT port to accept a 3/8" BSP threaded fitting. Manufactured from high-quality brass, it provides a durable, corrosion-resistant solution for compressed air, water, pneumatic and general fluid transfer systems.
Features & Benefits
» Reduces a 1" BSPT threaded port to a 3/8" BSP female connection
» Hexagonal body allows quick installation using standard spanners or sockets
» Manufactured from high-quality forged brass for strength and durability
» Excellent resistance to corrosion and thread wear
» Suitable for compressed air, water, glycol, inert gases and light oils
» Compact design minimises additional pipework length
» BSPT tapered male thread provides a secure pressure-tight connection with suitable thread sealant
» Suitable for plumbing, pneumatic, hydraulic and industrial fluid systems
Technical Specifications
» Brand: Tom Parker
» Part Number: UP3-38-1
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 1" BSPT
» Female Thread Size: 3/8" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 11 TPI
» Female Thread Pitch: 19 TPI
» Male Thread Diameter: Approx. 33.25 mm
» Hex Size: Approx. 36–38 mm A/F
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
» Typical Applications: Pipework / Pneumatic Systems / Hydraulic Equipment / Manifolds / Pumps / Air Receivers / Industrial Fluid Systems
