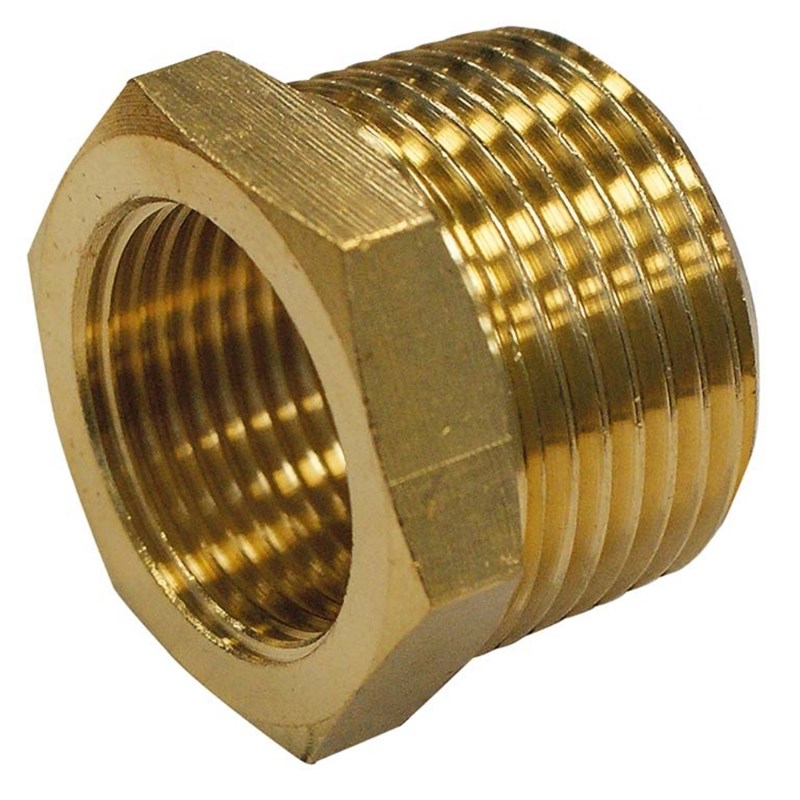

Bush 1" x 3/4" BSPT Brass
SKU:
10013115
The Tom Parker 1" Male x 3/4" Female BSPT Brass Reducing Bush is a compact threaded adaptor designed to reduce a 1" BSPT port to accept a 3/4" BSP threaded fitting. Manufactured from high-quality forged brass, it offers reliable performance in compressed air, plumbing and industrial fluid systems.
Features & Benefits
» Reduces a 1" BSPT threaded port to a 3/4" BSP female connection
» Heavy-duty forged brass construction
» Hexagonal body for easy tightening
» Corrosion-resistant brass material
» Suitable for compressed air, water and industrial fluids
» BSPT tapered male thread for secure sealing
» Compact design for confined installations
» Suitable for plumbing, hydraulic and pneumatic systems
Technical Specifications
» Brand: Tom Parker
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 1" BSPT
» Female Thread Size: 3/4" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 11 TPI
» Female Thread Pitch: 14 TPI
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
