Broach Cutter 30mm x 50 M2 30L RAPL300
SKU:
10010478

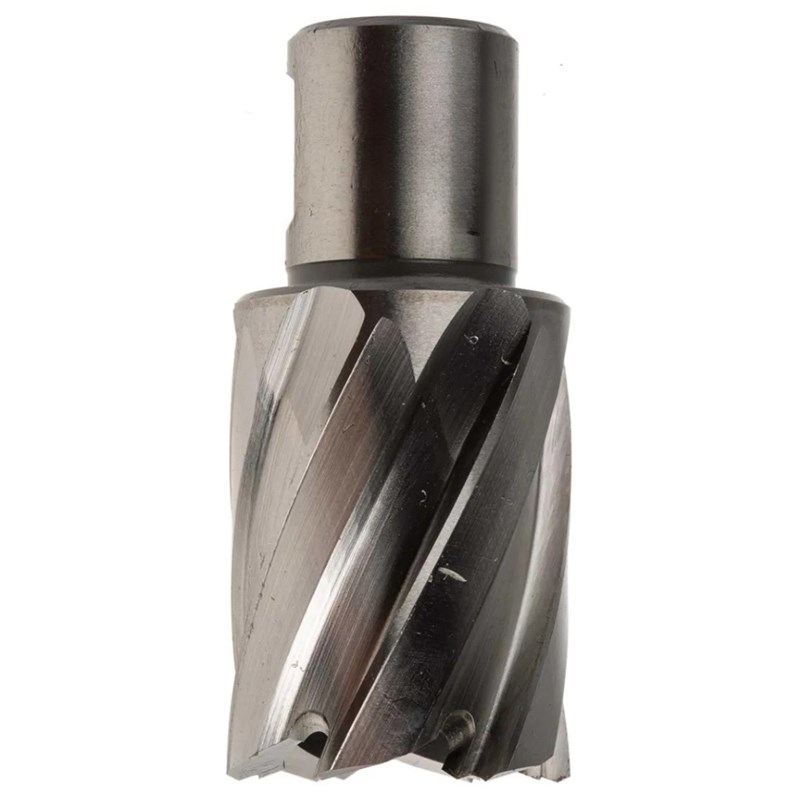

The Rotabroach RAPL300 Raptor M2AL Long Series Annular Cutter 30mm is a premium long-series cutter engineered for deep, precise hole cutting in structural steel and other metals. It highlights M2AL high-speed steel construction, a 50mm cutting depth, and a standard 3/4in Weldon shank for professional magnetic drilling applications.
Features & Benefits
» Professional long-series annular cutter designed for deep hole drilling applications
» Manufactured from premium M2AL high-speed steel for exceptional cutting performance and extended tool life
» Aluminium-alloyed M2 steel improves heat resistance, reduces friction, and minimises wear
» Long-series design provides a maximum cutting depth of 50mm
» Precision cutting geometry delivers clean, accurate holes with minimal burr formation
» Optimised 27.5° helix efficiently evacuates swarf for smoother and faster cutting
» Reinforced wall thickness and stepped body design maximise rigidity while reducing cutting resistance
» Step-hardened cutting teeth provide outstanding wear resistance and prolonged service life
» 20° clearance angle reduces vibration, chatter, and operator fatigue during drilling
» Suitable for structural steel, mild steel, alloy steels, aluminium, copper, brass, and engineering plastics
» Compatible with all major magnetic drilling machines using a standard 3/4in Weldon shank
» Designed for use with a suitable long-series pilot pin to ensure accurate centring, coolant delivery, and automatic slug ejection
» Ideal for heavy fabrication, structural steelwork, bridge construction, shipbuilding, engineering, and industrial maintenance applications
Technical Specifications
» Brand: Rotabroach
» Product Range: Raptor M2 Long Series
» Model: RAPL300
» Product Type: Long Series Annular Cutter
» Cutter Diameter: 30mm
» Maximum Cutting Depth: 50mm
» Cutter Material: M2AL High-Speed Steel (HSS)
» Shank Type: 19.05mm (3/4in) Weldon
» Internal Bore Diameter: 6.0mm
» Helix Angle: 27.5°
» Wall Thickness: 4.6mm
» Cutting Teeth Hardness: HRC 65-67
» Shank Hardness: HRC 50-60
» Core Body Hardness: HRC 63-65
» Clearance Angle: 20°
» Maximum Material Tensile Strength: Up To 900 N/mm²
» Approximate Weight: 0.28kg
» Suitable Materials: Structural Steel, Mild Steel, Alloy Steel, Aluminium, Copper, Brass, And High-Density Plastics
» Machine Compatibility: Magnetic Drilling Machines With 3/4in Weldon Arbor
» Recommended Pilot Pin: 6.34mm x 103mm Long Series (Rotabroach SRA50 Or Equivalent)
» Typical Applications: Heavy Fabrication, Structural Steelwork, Bridge Construction, Shipbuilding, Engineering, Petrochemical, Oil & Gas, And Industrial Maintenance
