Back Cap Short (Pkt2) 57Y042 Binzel
SKU:
10063039

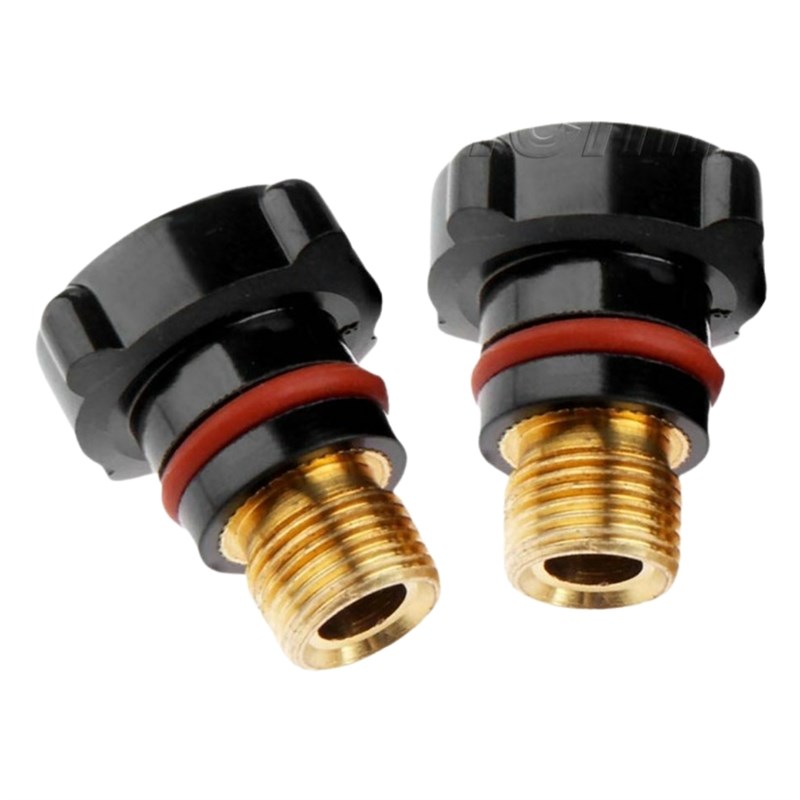

The Abicor Binzel 57Y042 Short TIG Torch Back Cap Pack of 2 is a high-quality replacement consumable designed for 17, 18, and 26 Series TIG welding torches. Its compact button-style design securely retains shortened tungsten electrodes while maintaining an airtight gas seal, providing improved torch manoeuvrability for welding in confined or difficult-to-access areas.
Features & Benefits
» Genuine Abicor Binzel replacement short back caps for 17, 18, and 26 Series TIG torches
» Compact button-style design improves access when welding in restricted spaces
» Securely clamps shortened tungsten electrodes for reliable performance
» Maintains an effective shielding gas seal to promote consistent weld quality and arc stability
» Manufactured from heat-resistant phenolic material for excellent electrical insulation and durability
» Brass threaded insert provides strength and long service life
» Fitted with a silicone O-ring to minimise shielding gas leakage
» Compatible with both air-cooled and water-cooled TIG torch systems
» Precision threaded design allows quick installation and secure retention
» Supplied as a convenient pack of two for maintenance and replacement applications
Technical Specifications
» Brand: Abicor Binzel
» Product Name: Short TIG Torch Back Cap
» Manufacturer Part Number: 712.1053
» Industry Part Number: 57Y04
» Product Type: TIG Torch Back Cap
» Style: Short Button Cap
» Pack Quantity: 2
» Compatible Torch Series: 17, 18 And 26 Series
» Compatible Torch Models: WP-17, WP-18, WP-26, Flex, Valve And Flex-Valve Variants
» Cooling Compatibility: Air-Cooled And Water-Cooled
» Thread Size: 3/8" x 32 UNF
» Tungsten Compatibility: Shortened 175mm Tungsten Electrodes
» Body Material: Heat-Resistant Phenolic Polymer
» Thread Insert Material: Brass
» Seal Type: Silicone Rubber O-Ring
» Length: Approximately 24-25mm
» Diameter: Approximately 17mm
» Approximate Weight Per Cap: 0.01kg
