Ceramic Cup 3/8 (Pkt2) 10N482 Binzel
SKU:
10063041

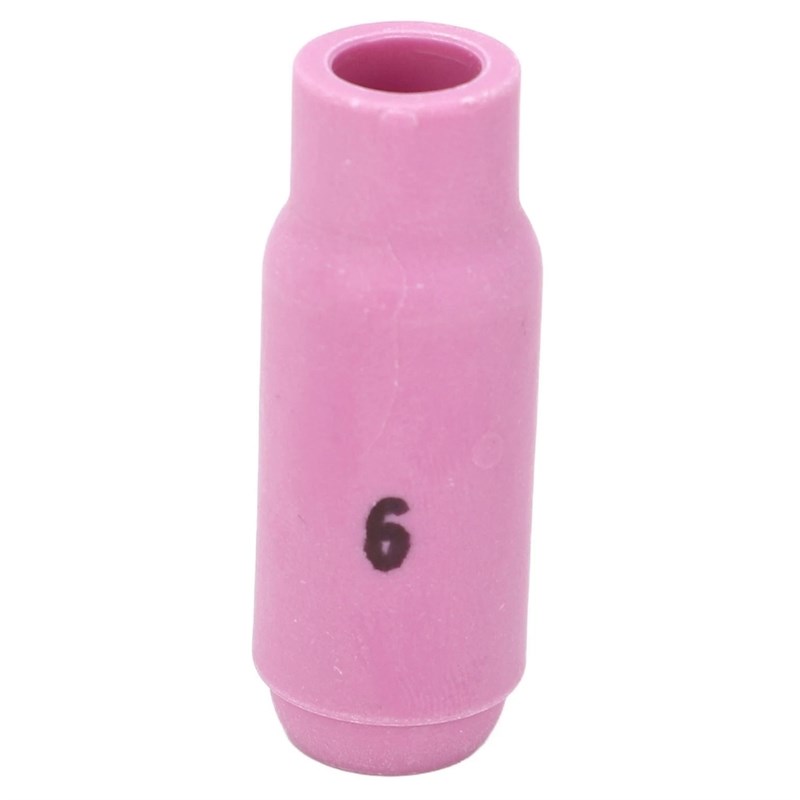

The Abicor Binzel 10N48 #6 TIG Ceramic Gas Cup is an alumina ceramic nozzle designed to provide controlled shielding gas coverage during TIG welding. Featuring an approximately 10mm bore, it is suitable for standard collet body setups on compatible WP-17, WP-18 and WP-26 series TIG torches and is supplied in a packet of 2.
Features & Benefits
» Standard #6 TIG ceramic gas cup designed to direct shielding gas around the tungsten electrode and weld pool
» Approximately 10mm bore provides versatile gas coverage for general TIG welding applications
» Alumina ceramic construction provides excellent heat resistance and electrical insulation
» Designed to withstand the thermal conditions encountered during regular TIG welding
» Internally threaded connection screws directly onto compatible standard TIG collet bodies
» Suitable for standard WP-17, WP-18 and WP-26 series torch configurations
» Compatible with equivalent ABITIG GRIP 17, 18 and 26 series configurations when fitted with the appropriate standard collet body
» Suitable for general fabrication involving materials including steel, stainless steel and aluminium
» Supplied as a convenient packet of 2 ceramic gas cups
Technical Specifications
» Brand: Abicor Binzel
» Part Number: 10N48
» Product Type: TIG Ceramic Gas Cup
» Cup Size: #6
» Bore Diameter: 3/8" (Approximately 9.6–10mm)
» Overall Length: Approximately 47mm
» Material: Alumina Ceramic
» Connection Type: Internally Threaded
» Collet Body Type: Standard
» Compatible Torch Series: WP-17 / WP-18 / WP-26
» Compatible ABITIG Series: ABITIG GRIP 17 / 18 / 26
» Application: TIG Welding Shielding Gas Distribution
» Pack Quantity: 2
