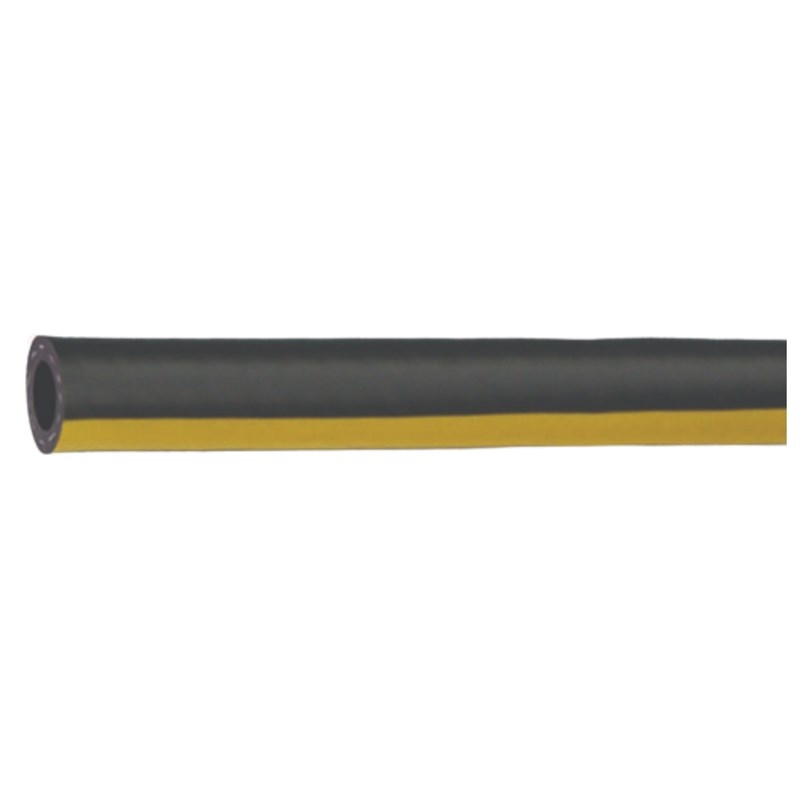

Hose Air 3/4" ID Black TPR 20Bar
SKU:
10054369
The Copely H-GPA19 Rubber Alloy Compressor Hose 19mm ID is a premium heavy-duty air and fluid transfer hose designed to deliver long service life in demanding environments. It highlights advanced PVC/Nitrile rubber-alloy construction, excellent flexibility, and enhanced resistance to abrasion, ozone, and UV ageing.
In Stock
Typical Lead Time: 7 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» Heavy-duty compressor hose designed as a premium alternative to traditional rubber hose
» Manufactured from an advanced phthalate-free PVC and nitrile rubber-alloy blend
» Maintains a flexible rubber-like feel while improving resistance to ageing and wear
» Excellent resistance to abrasion, ozone exposure, and UV degradation
» Reinforced with high-tensile polyester fibres for dependable pressure performance
» Rated to a maximum working pressure of 20 bar (290 PSI)
» 3:1 safety factor with burst pressure up to 60 bar at +23°C
» Suitable for compressed air, water, chemicals, solvents, fuels, oils, and greases
» Silicone-free and cadmium-free formulation makes it suitable for automotive and paint environments
» High-visibility yellow stripe improves identification and site visibility
» Temperature range from -15°C to +60°C supports varied operating conditions
» Certified to BS EN ISO 5774 and compliant with RoHS 3 requirements
Technical Specifications
» Product Name: Copely Rubber Alloy Compressor Hose
» Part Number: H-GPA19
» Brand: Copely Developments (UK)
» Product Type: Heavy Duty Compressor Hose
» Internal Diameter: 19 mm
» Nominal Size: 3/4 in
» Outside Diameter: 28 mm
» Maximum Working Pressure: 20 Bar
» Maximum Working Pressure: 290 Psi
» Burst Pressure: 60 Bar At +23°C
» Safety Factor: 3:1
» Coil Length: 30 m
» Colour: Black With High Visibility Yellow Stripe
» Material: Phthalate Free Nitrile And PVC Rubber Alloy Blend (TPE)
» Reinforcement: High Tensile Polyester Fibre Reinforcement
» Chemical Profile: Silicone Free And Cadmium Free
» Service Temperature Range: -15°C To +60°C
» Compatible Media: Compressed Air, Water, Chemicals, Solvents, Fuels, Oils And Greases
» Compliance: BS EN ISO 5774
» Compliance: RoHS 3 Compliant
» Feature: Enhanced Resistance To Abrasion, Ozone And UV Ageing
» Application: Pneumatic, Automotive And Industrial Fluid Transfer Systems
