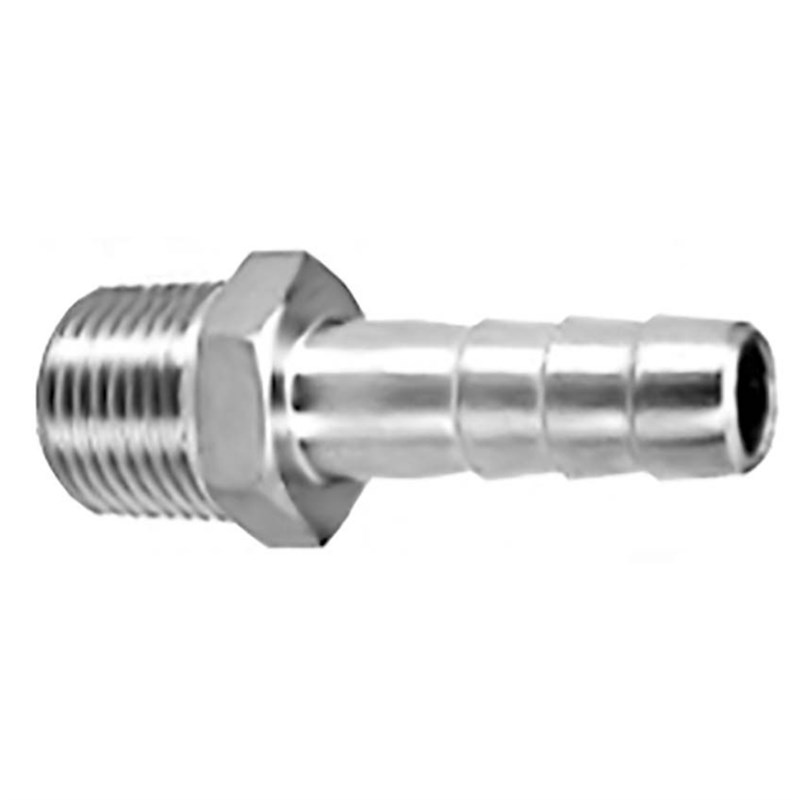

Hose Tail Hex 1.1/2" BSPT x 1.1/2" Stainless
SKU:
10092482
The SJ-F29-24 Hose Tail Adaptor is a heavy-duty brass fitting designed for connecting large bore flexible hose to BSP threaded systems. It highlights a tapered BSPT male thread for secure sealing, a robust 1 1/2in hose barb connection, and dependable high-flow performance in industrial fluid transfer applications.
Features & Benefits
» Heavy-duty hose tail adaptor designed for connecting large bore flexible hose to threaded pipe systems
» 1 1/2in BSPT male tapered thread provides a secure and leak-resistant mechanical seal
» 1 1/2in hose barb designed to suit 1 1/2in (38.1mm) internal diameter flexible hose
» Suitable for high-volume fluid transfer, irrigation, industrial, and pneumatic applications
» Hose barb profile provides strong hose retention when secured with suitable heavy-duty clamps
» Compatible with BSP threaded ports including BSPT and BSPP female connections
» PTFE tape or liquid pipe sealant is recommended to ensure leak-free installation
» Heavy-duty T-bolt or bolt clamps are recommended for secure hose retention under pressure
» Robust fitting design supports dependable performance in demanding industrial environments
» Suitable for workshop, agricultural, pumping, and maintenance installations
» Not compatible with American NPT threaded systems
Technical Specifications
» Product Type: Hosetail Adaptor
» Part Number: SJ-F29-24
» Connection A: 1 1/2 in Male BSPT (British Standard Pipe Taper)
» Connection B: 1 1/2 in Hose Barb
» Hose Compatibility: 1 1/2 in / 38.1 mm Internal Diameter Hose
» Thread Type: BSPT Tapered Male Thread
» Construction: Straight Hose Tail Adaptor Design
» Sealing Method: Tapered Thread Provides Leak Proof Mechanical Seal
» Installation Requirement: Apply PTFE Tape Or Liquid Pipe Sealant To BSPT Threads
» Hose Securing Method: Use Heavy Duty T-Bolt Or Bolt Clamps
» Thread Compatibility: Suitable For BSP Female Ports
» Thread Restriction: Not Compatible With American NPT Threads
» Application: Fluid Transfer And Pneumatic Systems
» Suitable Use: Industrial, Commercial And High Flow Installations
