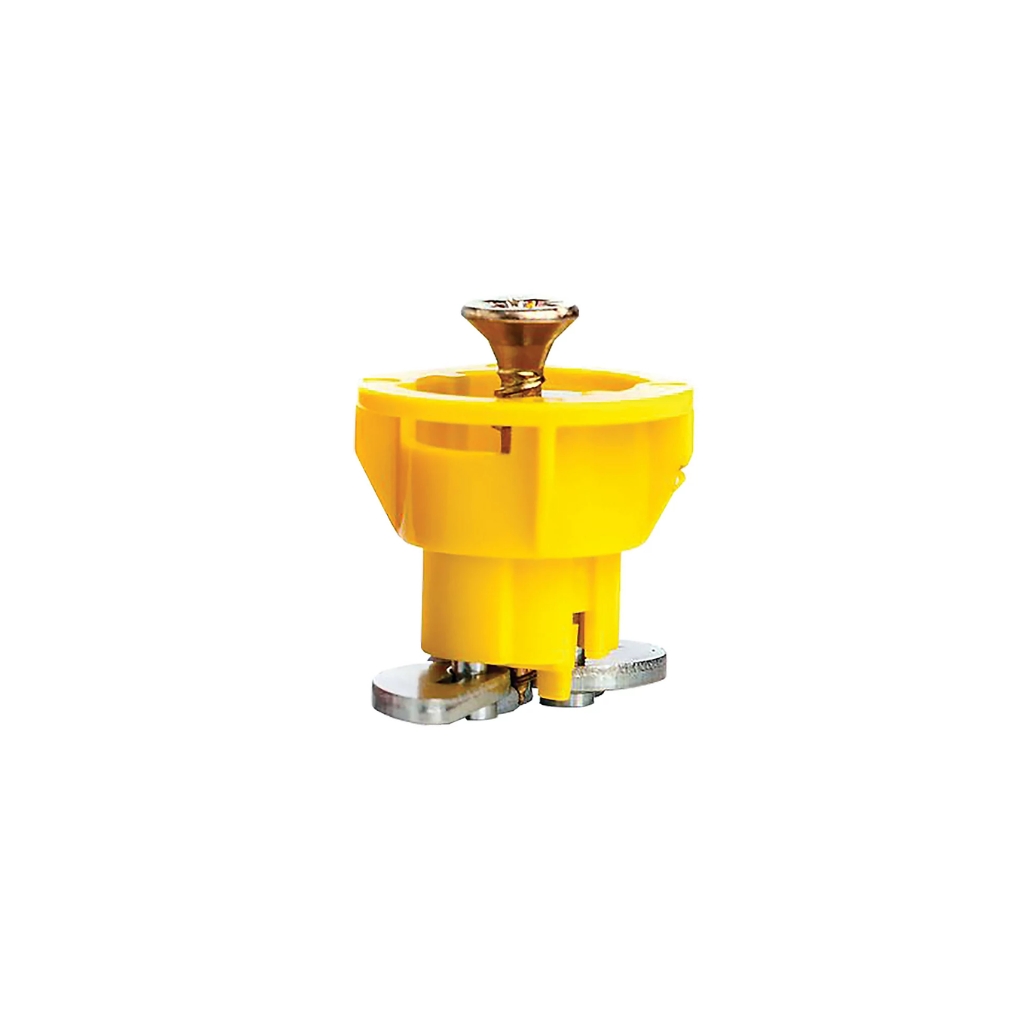

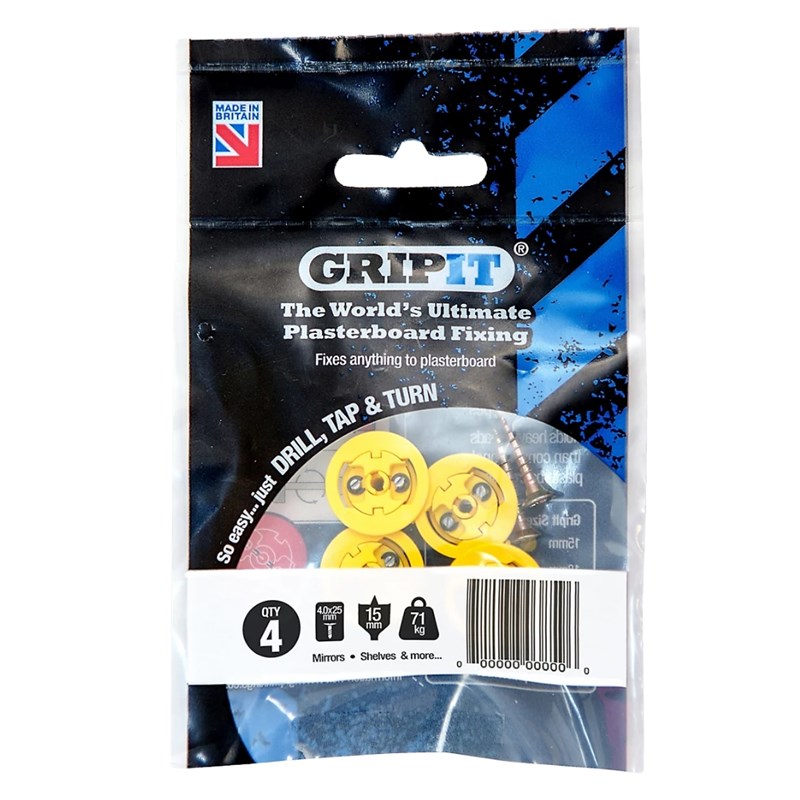

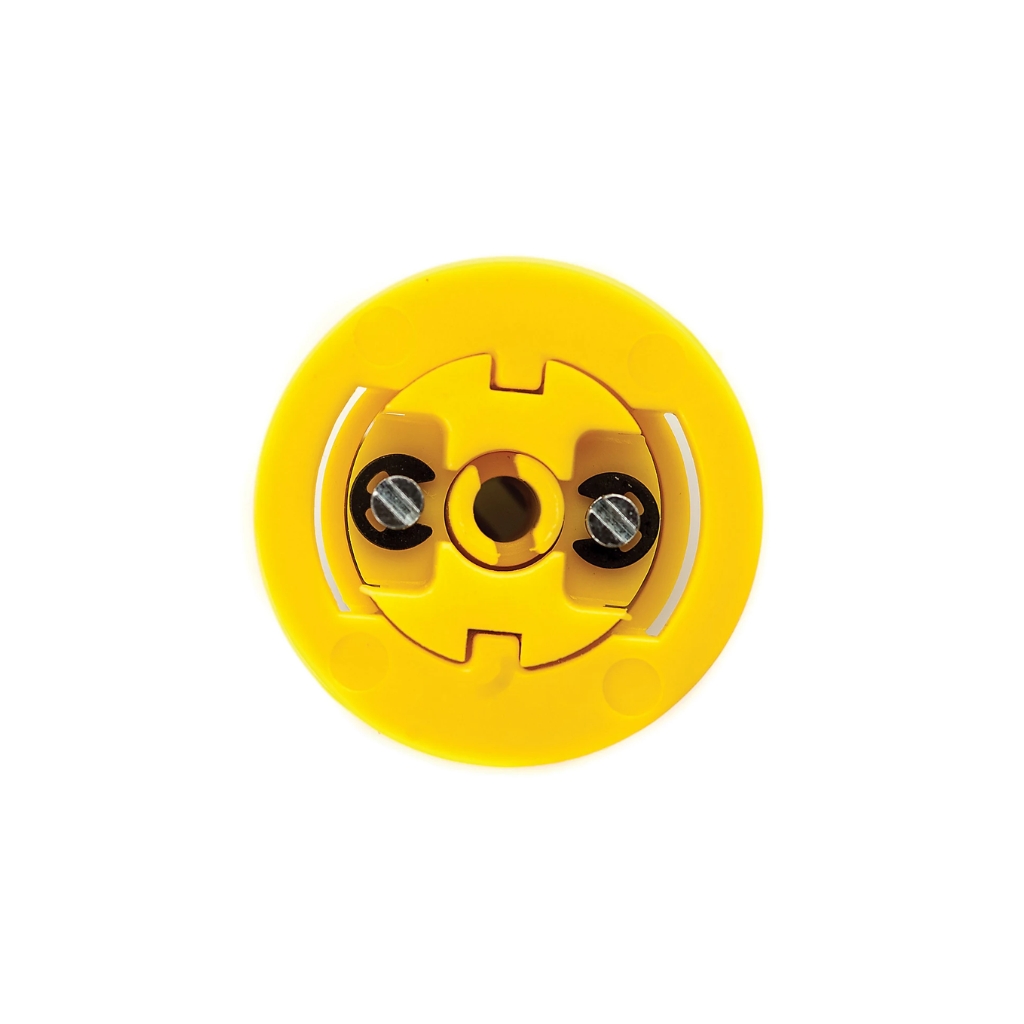

Plasterboard Fixing 15mm Yell Pkt4 152-254 Gripit
SKU:
10072184
The Gripit Yellow 15mm Plasterboard Fixing (4 Pack) is a heavy-duty reusable cavity wall fixing designed to securely anchor medium to heavy fixtures to plasterboard walls. It highlights an innovative 3-way gripping system, simple tool-free wing deployment, and high load capacity for reliable installation in standard and dot & dab plasterboard.
Features & Benefits
» Heavy-duty cavity wall fixing designed specifically for plasterboard installations
» Innovative 3-way gripping system distributes loads across a large surface area behind the board
» Simple three-step installation using Drill, Tap and Turn operation

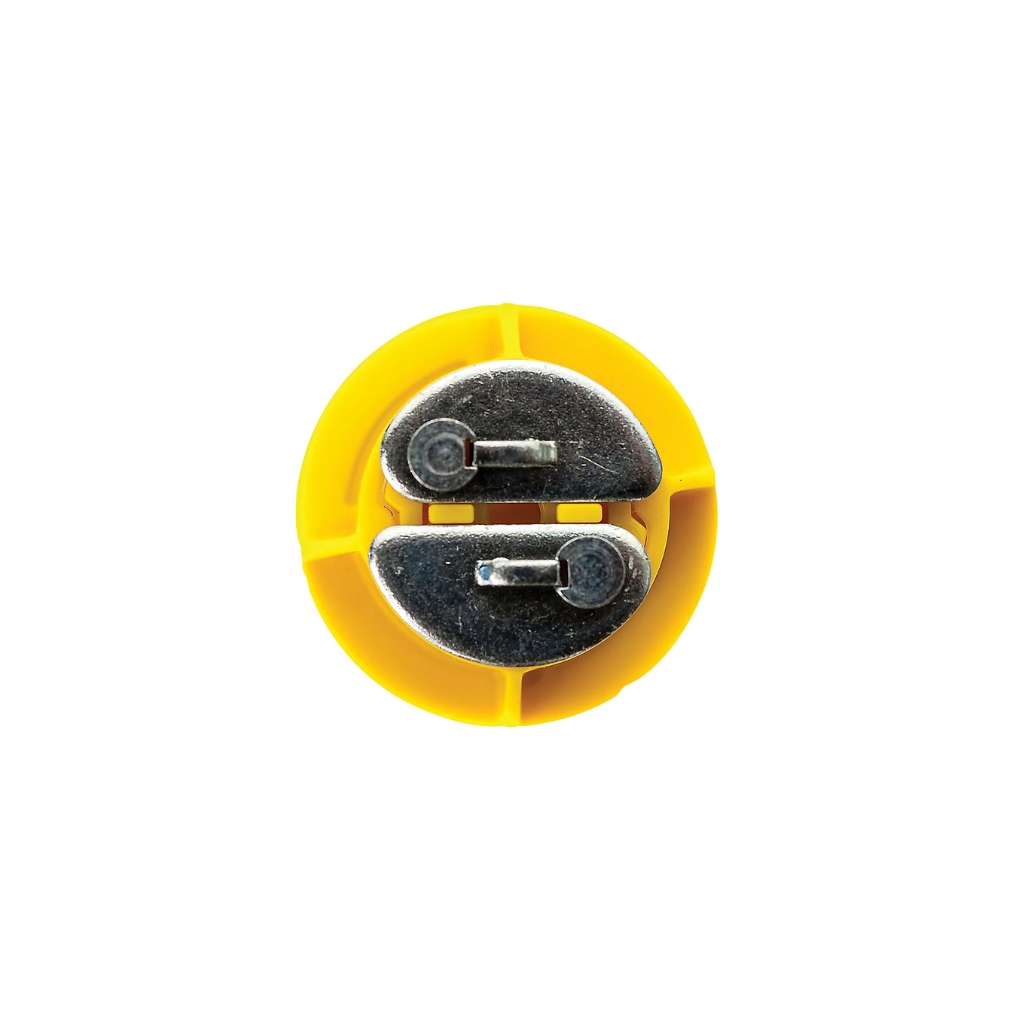

» Slim folding backing wings provide secure anchorage behind plasterboard
» Universal collar automatically adjusts to suit varying plasterboard thicknesses
» Anti-rotation fins prevent the fixing from spinning during installation
» Reusable design allows the wings to retract for easy removal and reinstallation
» Suitable for standard plasterboard, double-board, and dot & dab wall constructions
» Compatible with restricted cavity installations when used with the Gripit Undercutting Tool
» High-strength polyacetal construction provides excellent durability and long service life
» Ideal for hanging mirrors, curtain rails, blinds, shelving, bathroom accessories, and picture frames
» Designed for static wall-mounted loads only and should be hand-tightened using a manual screwdriver
Technical Specifications
» Product Name: Gripit Yellow Plasterboard Fixing
» Manufacturer Part Number: 152-254
» Alternative Part Numbers: GP154
» Pack Quantity: 4
» Fixing Diameter: 15 mm
» Body Length: 20 mm
» Required Drill Bit Size: 15 mm
» Supplied Screw Size: 4.0 mm x 25 mm Pozi Drive Wood Screw
» Internal Thread Size: M4
» Anchor Material: High Durability Acetal (Polyacetal) Plastic
» Compatible Plasterboard Thickness: 9.5 mm To 15 mm
» Minimum Edge Distance: 20 mm
» Safe Working Load: Up To 71 kg Per Fixing
» Ultimate Load Capacity: Up To 142 kg
» Installation Method: Drill, Tap And Turn System
» Grip Mechanism: 3 Way Expanding Wings With Anti Rotation Fins
» Reusability: Fully Removable And Reusable
» Suitable Applications: Curtain Rails, Blinds, Mirrors, Bathroom Accessories, Picture Frames And Lightweight Shelving
» Compatible Wall Systems: Standard Plasterboard, Double Board And Dot & Dab Walls
» Installation Restriction: Tighten By Hand Only – Do Not Use Power Tools
» Usage Restriction: Not Suitable For Dynamic Loads, Cantilever TV Brackets Or Radiators
