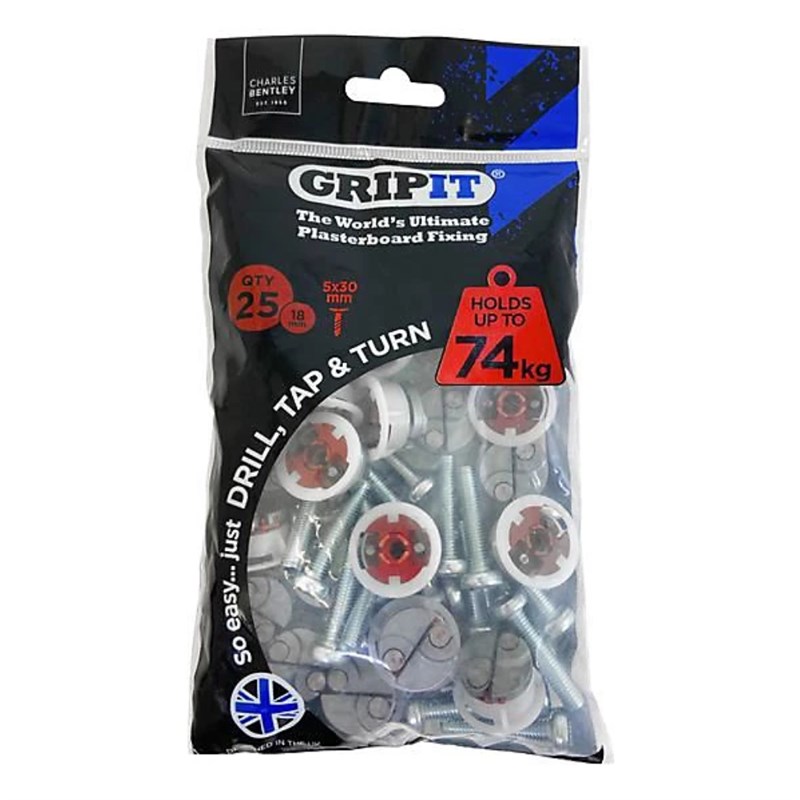

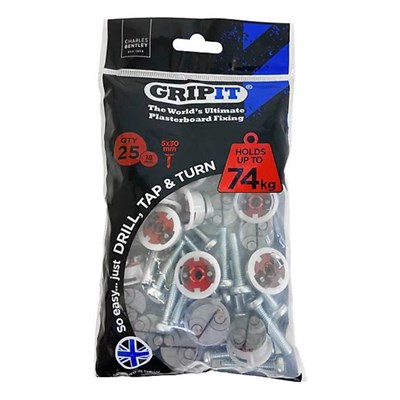

Plasterboard Fixing 18mm Red Pkt25 152-2525 Grip
SKU:
10072187

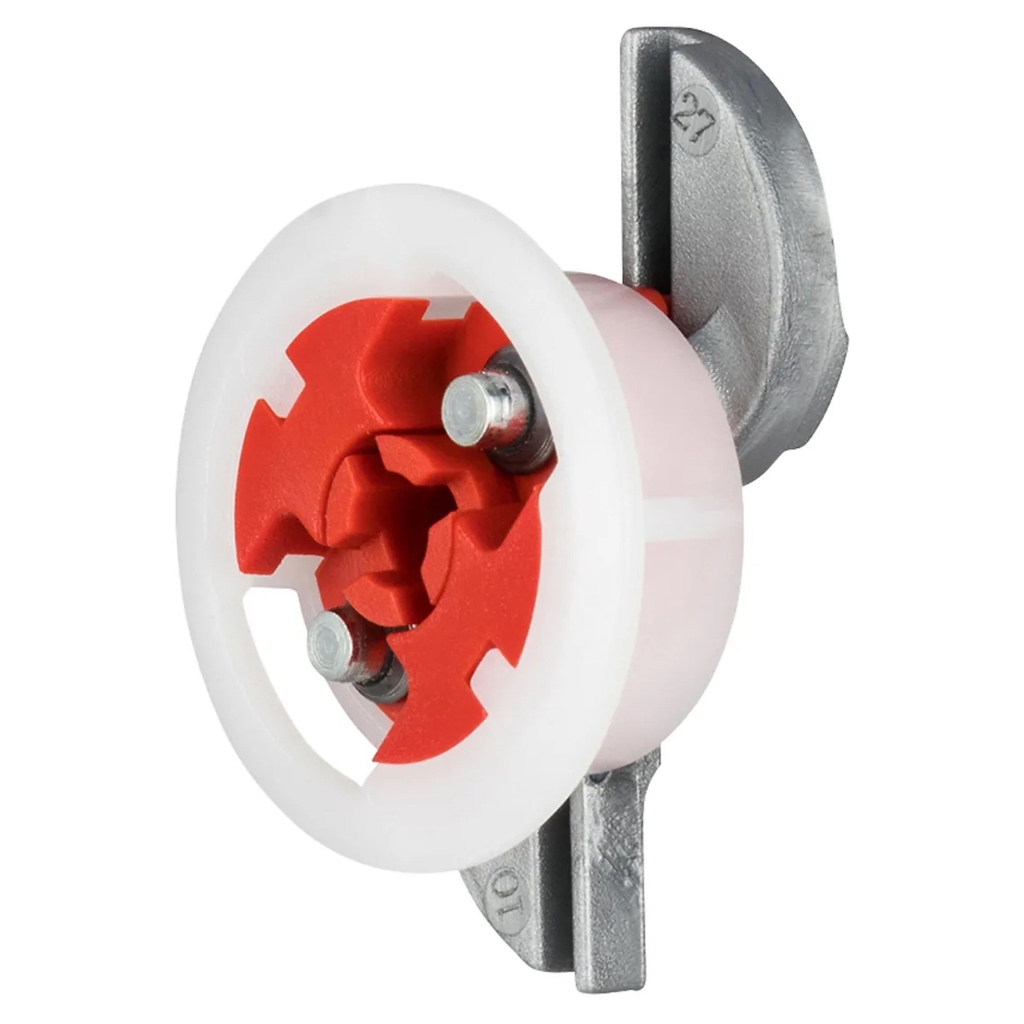

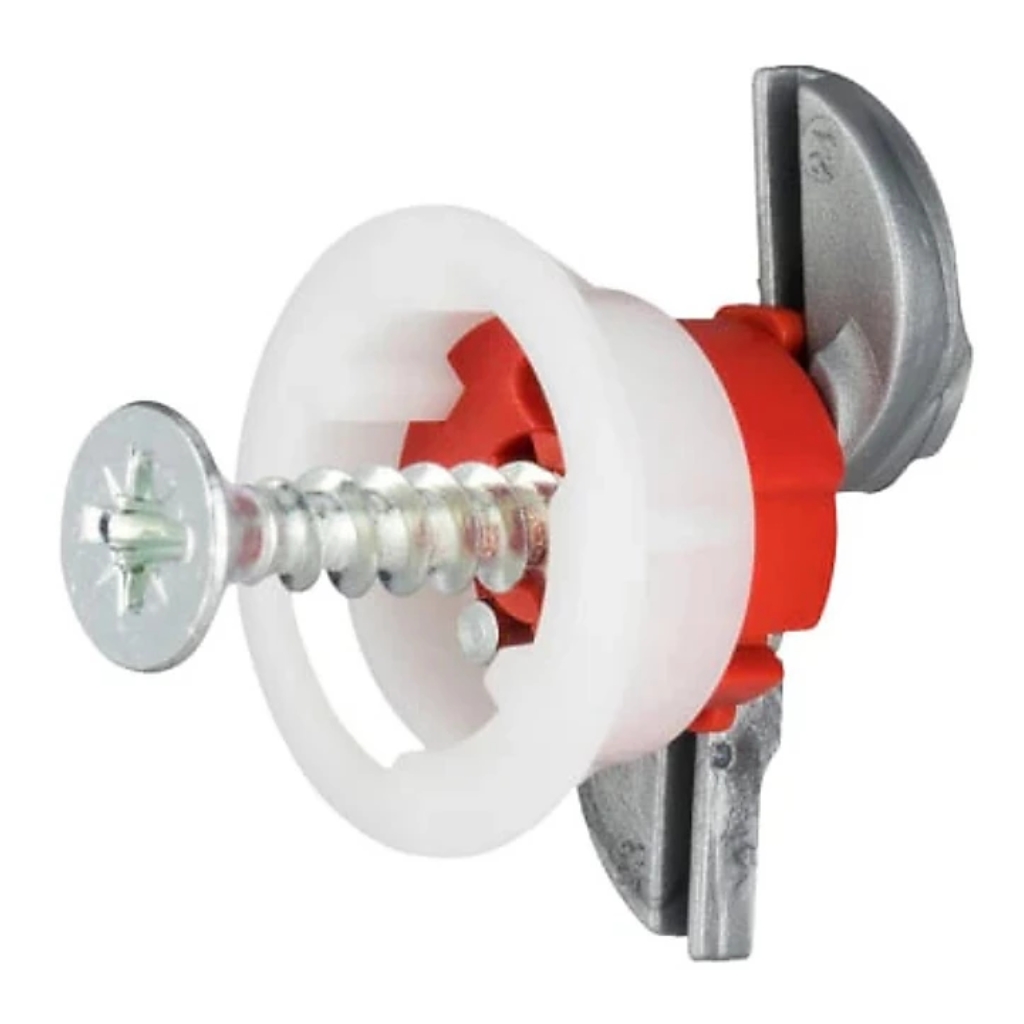

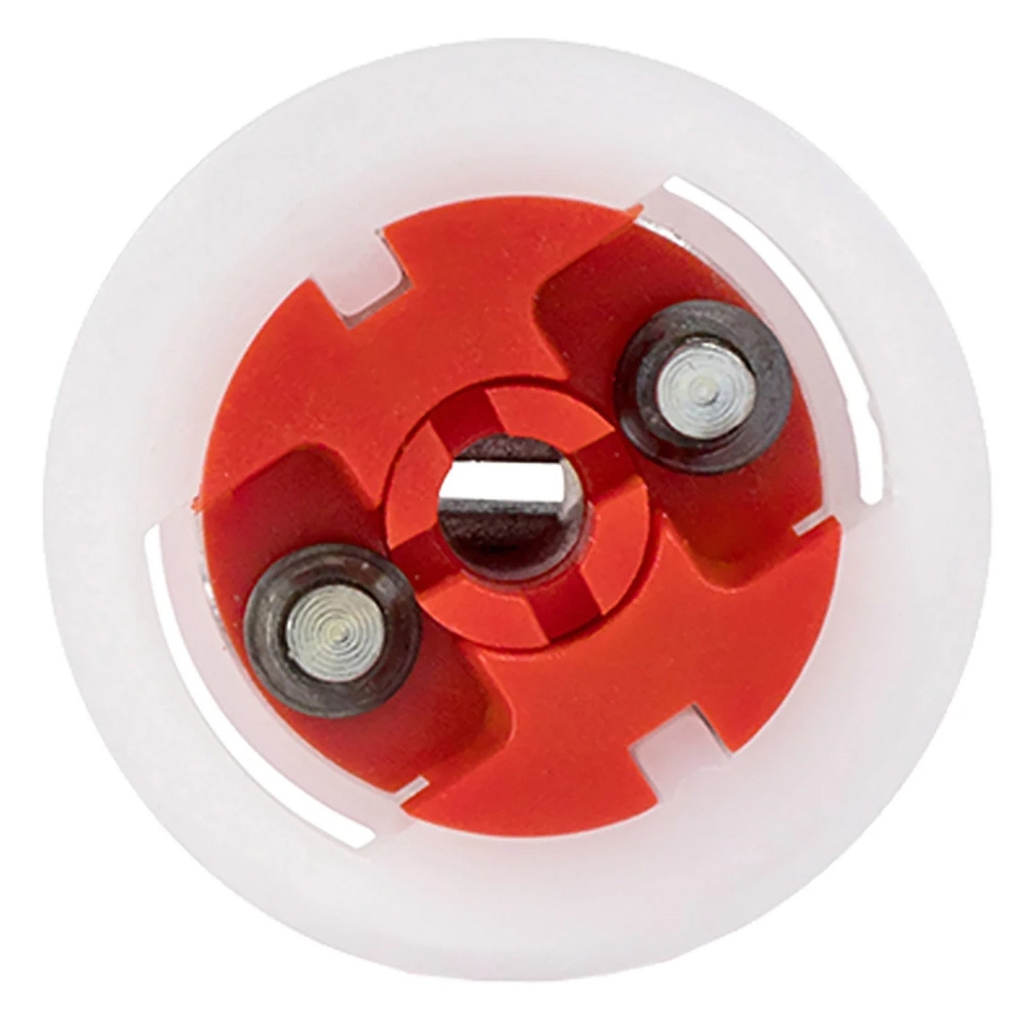

The Gripit Red 18mm Plasterboard Fixing (25 Pack) is a heavy-duty reusable cavity wall fixing designed to securely support high-load fixtures on plasterboard walls. It highlights an innovative 3-way gripping system, auto-adjusting collar, and exceptional load capacity for demanding static wall-mounted installations.
In Stock
Typical Lead Time: 13 Days
Features & Benefits
» Heavy-duty cavity wall fixing designed specifically for high-load plasterboard installations
» Innovative 3-way gripping system distributes loads over a wide surface area behind the wall
» Simple Drill, Tap and Turn installation for fast and secure fitting
» Wide folding wings provide maximum holding strength within the cavity
» Auto-adjusting collar accommodates plasterboard thicknesses from 9.5mm to 15mm
» Anti-rotation design prevents the fixing from spinning during installation
» Fully reusable by retracting the wings for easy removal and repositioning
» Suitable for standard plasterboard, double-board, and dot & dab installations
» Compatible with the Gripit 18mm Undercutting Tool for restricted cavity applications
» Manufactured from high-strength polyacetal for excellent durability and long service life
» Ideal for supporting shelving, AV equipment, lighting tracks, shower units, heated towel rails, and heavy curtain rails
» Designed for static wall-mounted loads and should be installed using a manual screwdriver only
Technical Specifications
» Product Name: Gripit Red Plasterboard Fixing
» Manufacturer Part Number: 152-2525
» Alternative Part Numbers: GP1825, GRP1825
» Pack Quantity: 25
» Fixing Diameter: 18 mm
» Body Length: 20 mm
» Required Drill Bit Size: 18 mm
» Supplied Screw Size: 5.0 mm x 30 mm Countersunk Pozi Drive Wood Screw
» Internal Thread Size: M5
» Anchor Material: High Durability Acetal (Polyacetal) Plastic
» Compatible Plasterboard Thickness: 9.5 mm To 15 mm
» Minimum Edge Distance: 24 mm
» Safe Working Load: Up To 74 kg Per Fixing
» Ultimate Load Capacity: Up To 148 kg
» Installation Method: Drill, Tap And Turn System
» Grip Mechanism: 3 Way Expanding Wings With Anti Rotation Design
» Collar Type: Auto Adjusting To Plasterboard Thickness
» Reusability: Fully Removable And Reusable
» Suitable Applications: Shelf Brackets, Audio Visual Equipment, Lighting Tracks, Shower Units, Heated Towel Rails And Heavy Curtains Or Blinds
» Compatible Wall Systems: Standard Plasterboard, Double Layer Plasterboard And Dot & Dab Walls
» Installation Restriction: Tighten By Hand Only – Do Not Use Power Tools
» Usage Restriction: Not Suitable For Dynamic Loads, Articulated TV Brackets Or Cantilever Applications
