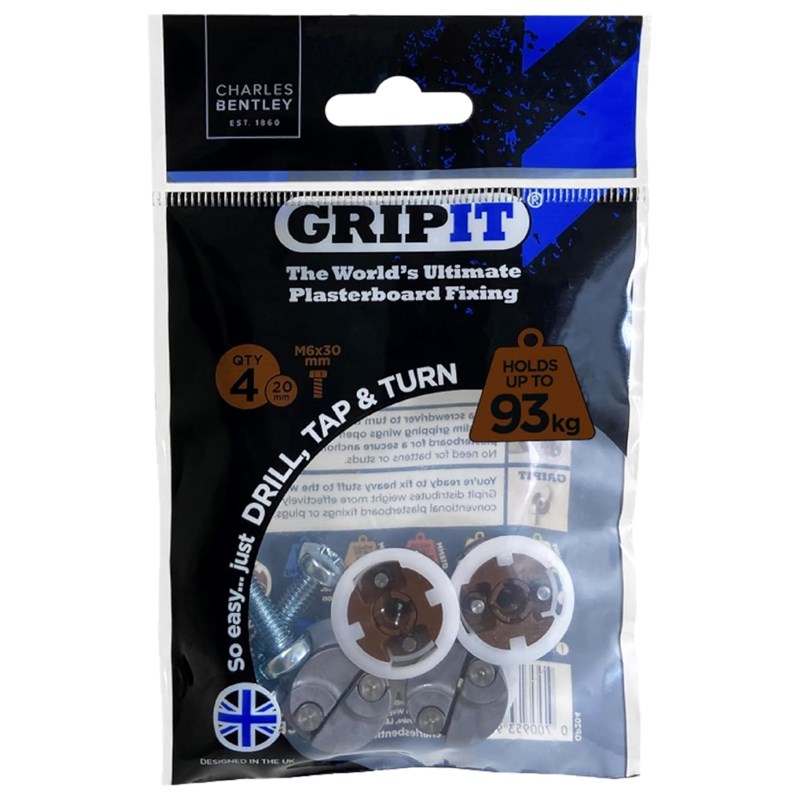

Plasterboard Fixing 20mm Brown Pkt4 202-304 Grip
SKU:
10072188

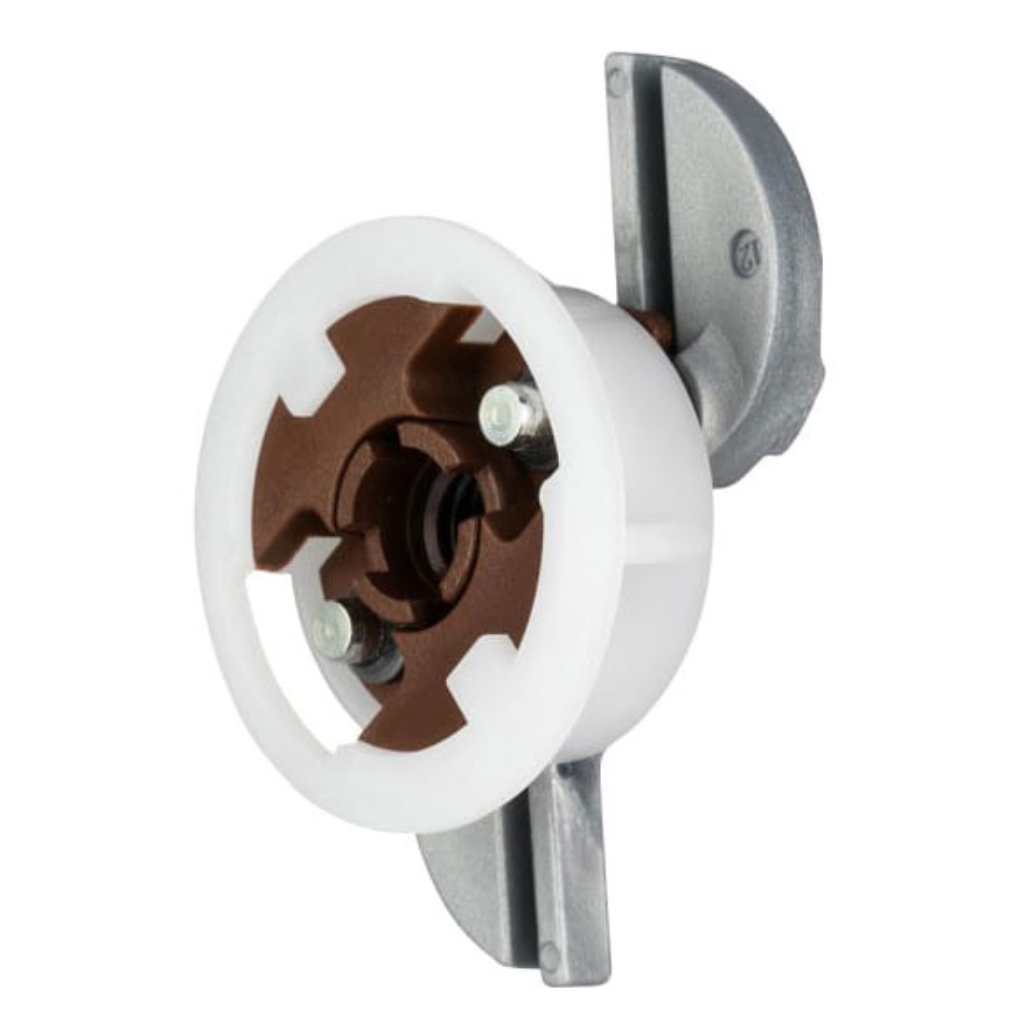

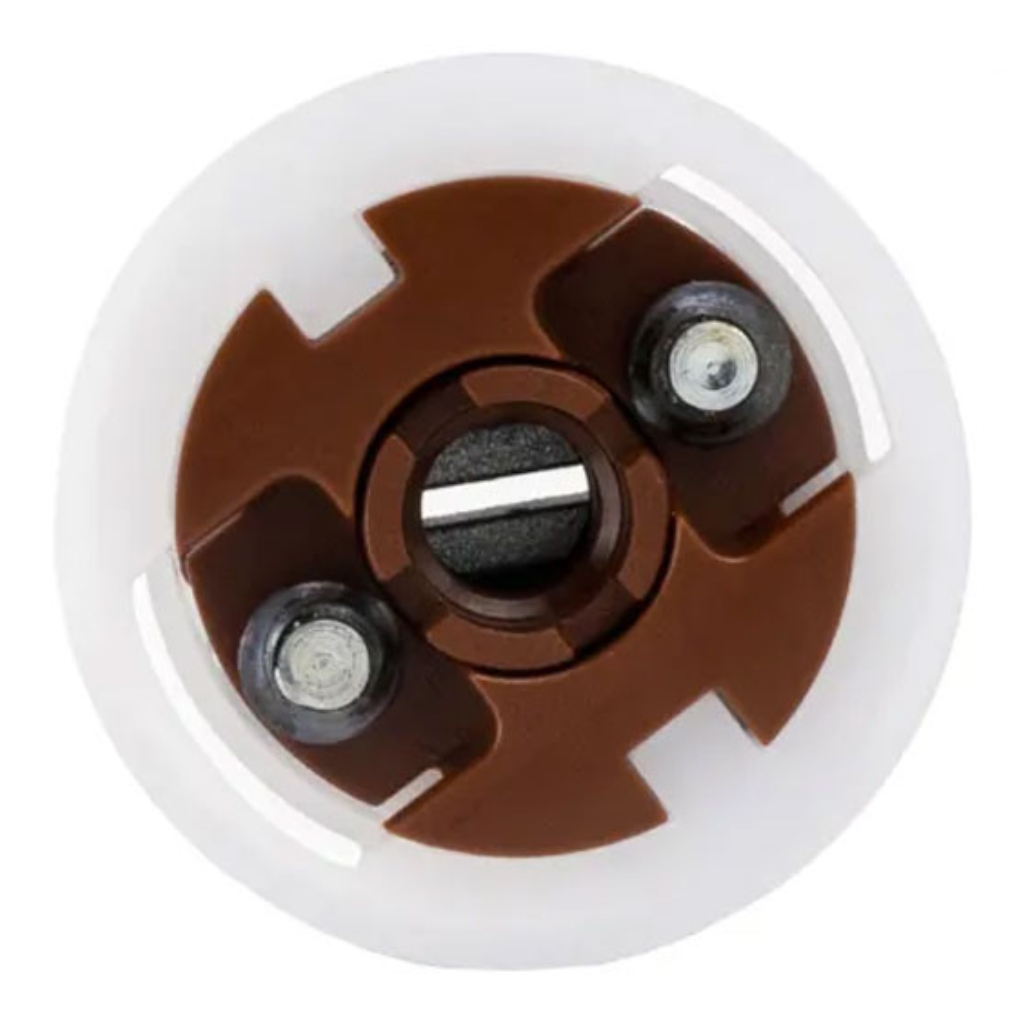

The Gripit Brown 20mm Plasterboard Fixing (4 Pack) is an ultra-heavy-duty reusable cavity wall fixing designed to securely support substantial static loads on plasterboard walls. It highlights an innovative 3-way gripping system, integrated M6 machine bolt insert, and exceptional load capacity for demanding domestic and commercial installations.
Features & Benefits
» Ultra-heavy-duty cavity wall fixing designed for high-load plasterboard installations
» Innovative 3-way gripping system distributes loads over a wide surface area behind the wall
» Integrated metal insert accepts standard M6 machine bolts for superior clamping strength
» Simple Drill, Tap and Turn installation for fast and secure fitting
» Wide folding backing wings provide exceptional holding power within plasterboard cavities
» Auto-adjusting collar accommodates plasterboard thicknesses from 9.5mm to 15mm
» Fully reusable by retracting the wings for easy removal and repositioning
» Suitable for standard, double-layered, and moisture-resistant plasterboard
» Compatible with the Gripit 20mm Undercutting Tool for restricted cavity applications
» Manufactured from high-strength polyacetal for outstanding durability and long service life
» Ideal for heavy shelving, kitchen wall cabinets, wall-hung basins, water heaters, and traditional horizontal radiators
» Designed for static wall-mounted loads and should be installed using hand tools only
Technical Specifications
» Product Name: Gripit Brown Plasterboard Fixing
» Manufacturer Part Number: 202-304
» Alternative Part Numbers: GRP204, GP204
» Pack Quantity: 4
» Fixing Diameter: 20 mm
» Body Depth: 14 mm – 20 mm
» Required Drill Bit Size: 20 mm

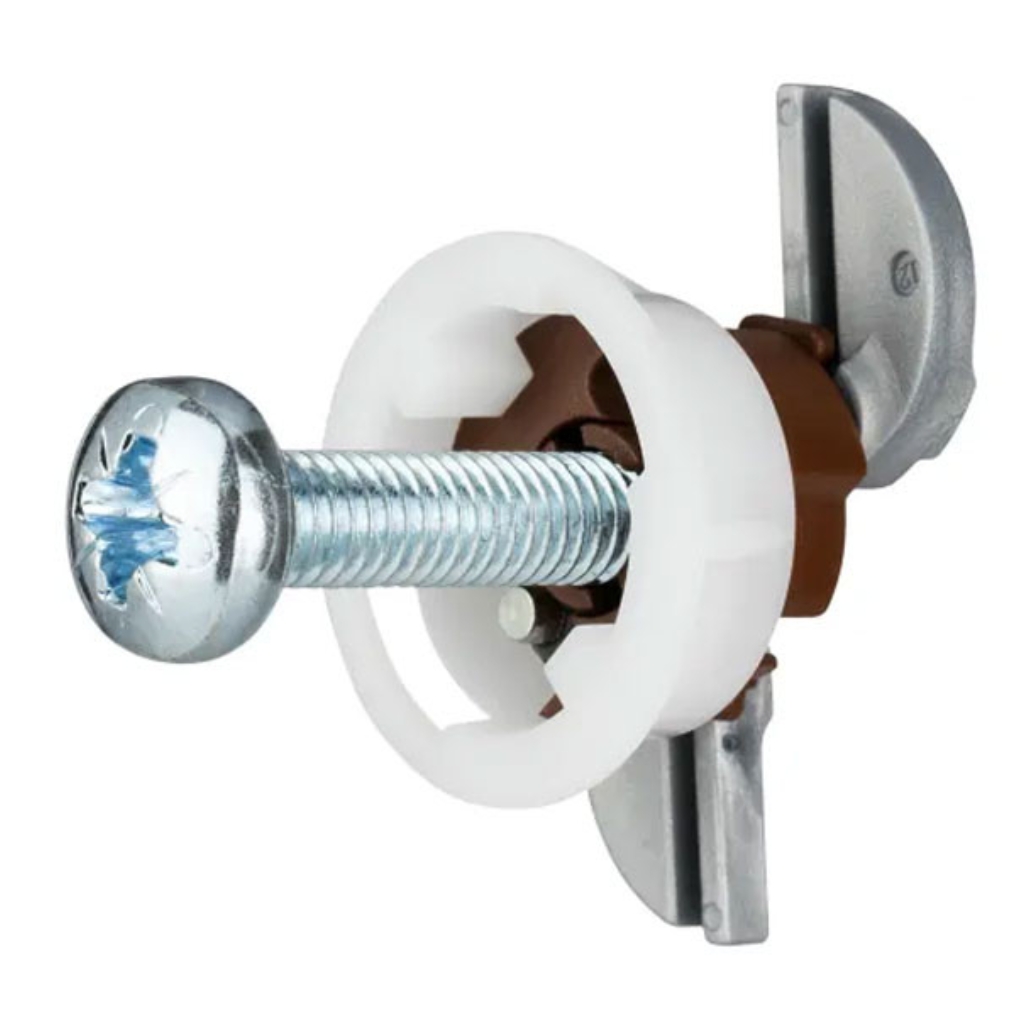

» Supplied Bolt Size: M6 x 30 mm Countersunk / Pan Head Pozi Drive Machine Bolt
» Internal Thread Size: M6
» Anchor Material: High Durability Acetal (Polyacetal) Plastic
» Compatible Plasterboard Thickness: 9.5 mm To 15 mm
» Minimum Edge Distance: 28 mm
» Safe Working Load: Up To 93 kg Per Fixing
» Ultimate Load Capacity: Up To 160 kg
» Installation Method: Drill, Tap And Turn System
» Grip Mechanism: Expanding Wing System With M6 Threaded Metal Insert
» Collar Type: Auto Adjusting To Plasterboard Thickness
» Reusability: Fully Removable And Reusable
» Suitable Applications: Radiators, Wall Hung Basins, Kitchen Wall Cabinets, Water Heaters And Heavy Shelving Units
» Compatible Wall Systems: Standard, Double Layer And Moisture Resistant Plasterboard, Including Dot & Dab Installations
» Installation Restriction: Tighten By Hand Only – Do Not Use Power Tools
» Usage Restriction: Not Suitable For Vertical Radiators, Dynamic Loads Or Articulating TV Wall Brackets
