Plasterboard Fixing 25mm Blue Pkt25 252-2530 Grip
SKU:
10072191

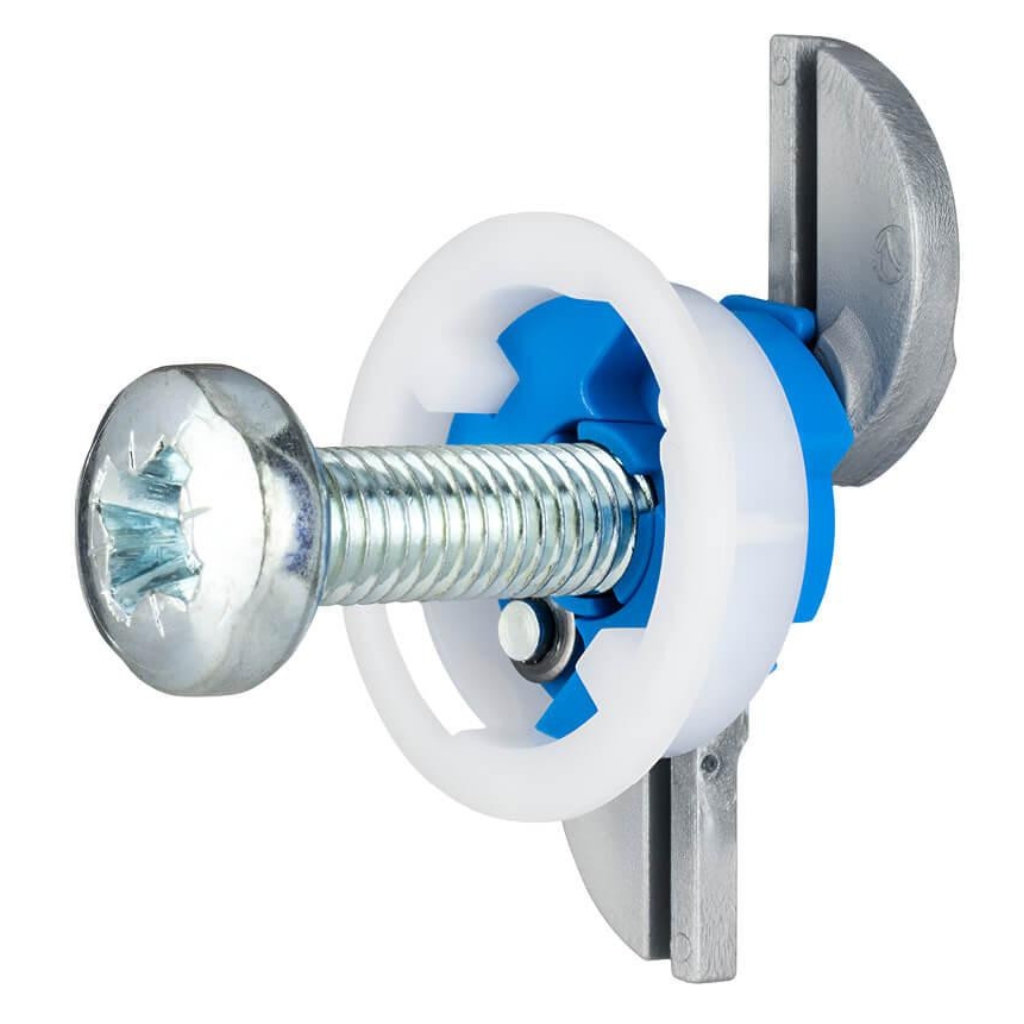

The GripIt Blue 25mm Plasterboard Fixing (25 Pack) is an ultra-heavy-duty reusable cavity wall fixing designed to support substantial static loads on plasterboard walls. It highlights an integrated M8 machine bolt system, deployable steel backing wings, and exceptional load capacity for demanding trade and commercial installations.
In Stock
Typical Lead Time: 11 Days
Features & Benefits
» Ultra-heavy-duty cavity wall fixing designed specifically for high-load plasterboard installations
» Bulk trade pack ideal for professional contractors and large-scale installation projects
» Engineered to securely support substantial static fixtures on standard plasterboard

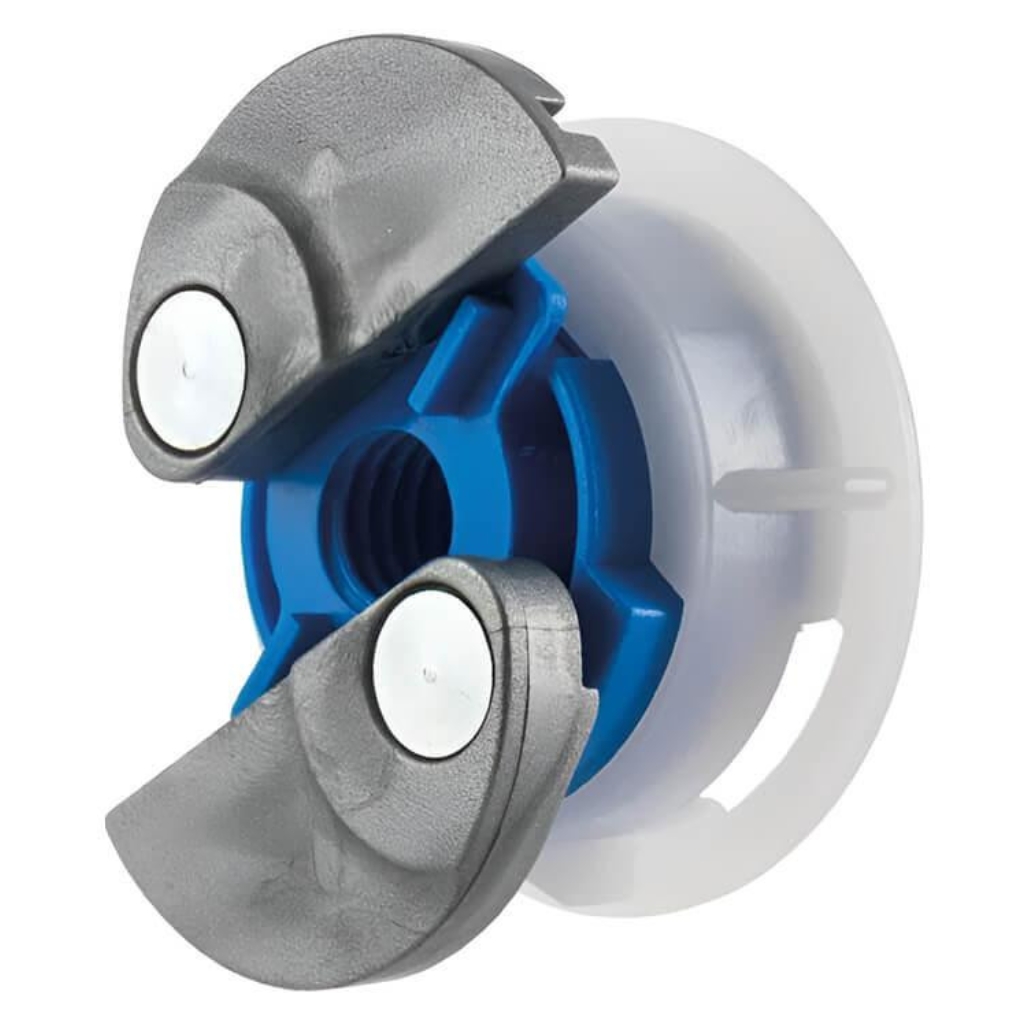

» Heavy-duty steel backing wings distribute loads over a wide surface area behind the board
» Integrated cam mechanism provides a simple Drill, Tap and Turn installation process
» Accepts M8 machine bolts for superior clamping force and secure fixing
» Suitable for plasterboard thicknesses from 9.5mm to 15mm
» Fully removable and reusable by reversing the internal cam mechanism
» Compatible with dot & dab and double-thickness plasterboard installations when used with the GripIt Undercutting Tool
» Manufactured from high-strength acetal plastic with steel reinforcement for maximum durability
» Ideal for securing boilers, kitchen wall cabinets, traditional radiators, and large wall-mounted televisions
» Designed for static wall-mounted loads and suitable for professional trade applications
Technical Specifications
» Product Name: GripIt Blue Plasterboard Fixing
» Manufacturer Part Number: 252-2530

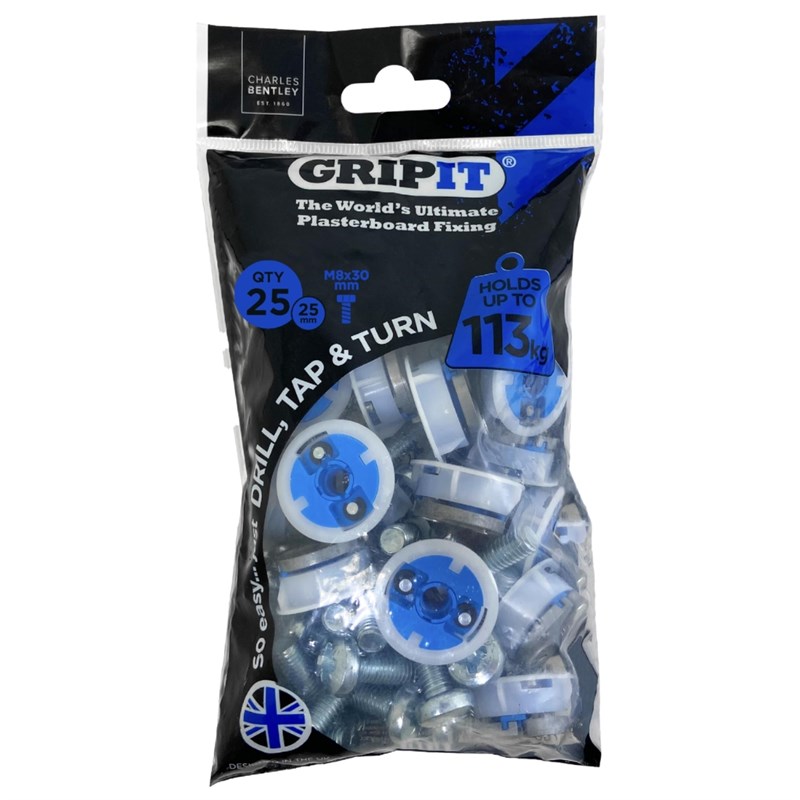

» Pack Quantity: 25
» Fixing Diameter: 25 mm
» Body Length: 20 mm
» Required Drill Bit Size: 25 mm Flat Spade Bit
» Required Bolt Size: M8 x 30 mm
» Drive Type: Pozi (PZ) / Slotted Cam Mechanism
» Anchor Material: Acetal Plastic Body With Steel Backing Wings
» Compatible Plasterboard Thickness: 9.5 mm To 15 mm
» Minimum Cavity Depth: Shallow Clearance Required Behind Plasterboard For Wing Deployment
» Minimum Fixing Centre Spacing: 100 mm
» Minimum Edge Distance: 28 mm
» Safe Working Load: Up To 113 kg Per Fixing
» Ultimate Load Capacity: Up To 225 kg
» Installation Method: Drill, Tap And Turn System
» Reusability: Fully Removable And Reusable
» Suitable Applications: Domestic Boilers, Kitchen Wall Cabinets, Horizontal Radiators And Large Wall Mounted Televisions
» Compatible Wall Systems: Standard, Double Layer And Dot & Dab Plasterboard (With GripIt Undercutting Tool Where Required)
» Installation Restriction: Tighten By Hand Only – Do Not Use Power Tools
» Usage Restriction: Not Suitable For Cantilever TV Brackets Or Vertical Radiators
