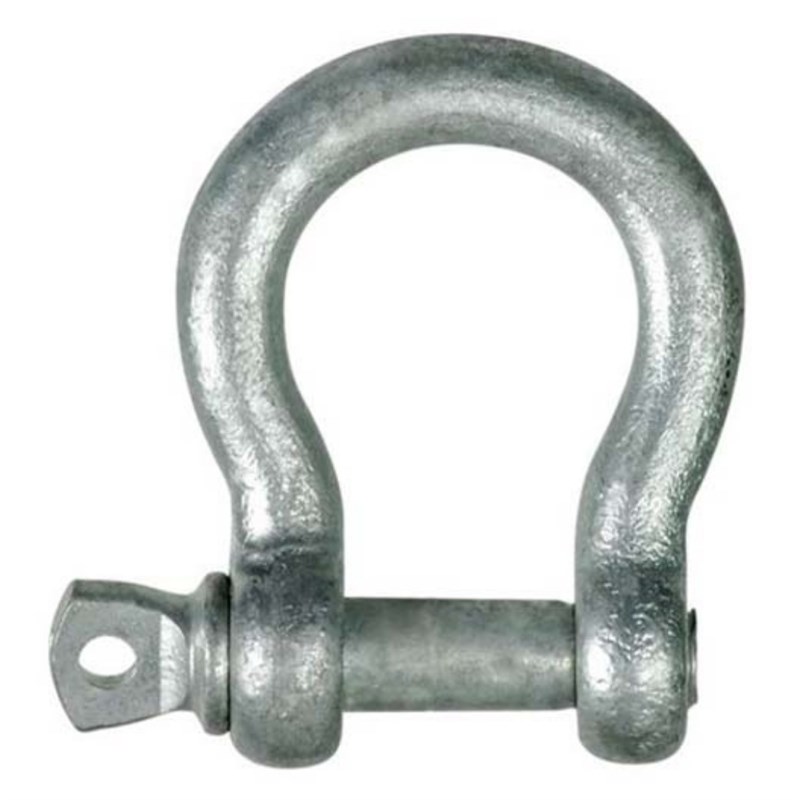

Shackle Bow 6.5T Green Screw Pin SH0038
SKU:
10008939
The Green Pin® 6.5 Tonne Screw Pin Bow Shackle is a premium-grade lifting shackle engineered for demanding rigging, crane, marine and industrial lifting applications. Manufactured from quenched and tempered high-tensile steel with a hot-dip galvanised finish, it is fully certified for overhead lifting and multi-directional loading.
Features & Benefits
» Premium Green Pin® bow shackle designed for professional lifting, rigging and crane operations
» Certified 6.5 tonne Working Load Limit (WLL) for overhead lifting applications
» Bow design accommodates multi-directional loading and multiple sling configurations
» Manufactured from quenched and tempered Grade 6 high-tensile steel for exceptional strength
» Heavy hot-dip galvanised finish provides outstanding corrosion resistance in marine and outdoor environments
» Removable screw collar pin allows quick installation while protecting slings and wire ropes from thread damage
» Minimum 6:1 safety factor provides an excellent margin of safety for demanding lifting operations
» Suitable for use in construction, marine, offshore, industrial and commercial lifting applications
» Certified to internationally recognised lifting and rigging standards
Technical Specifications
» Brand: Green Pin® (Van Beest)
» SKU / Model: SH0038
» Product Type: Screw Pin Bow Shackle
» Working Load Limit (WLL): 6.5 Tonnes (6,500kg)
» Body Diameter: 22mm
» Pin Diameter: 25mm
» Jaw Opening: 36mm
» Internal Length: 83mm
» Inside Bow Width: 58mm
» Net Weight: Approx. 1.50kg
» Material: Grade 6 Alloy / High-Tensile Carbon Steel, Quenched and Tempered
» Finish: Heavy Hot-Dip Galvanised
» Safety Factor: 6:1 Minimum Breaking Load (39 Tonnes)
» Operating Temperature: -40°C to +200°C
» Pin Type: Removable Screw Collar Pin
» Certification: EN 13889, US Fed. Spec. RR-C-271 Type IVA, ASME B30.26, DNV Type Approved
» Suitable For: Overhead Lifting, Crane Operations, Marine, Offshore and Industrial Rigging
