Bush 1/4" x 1/8" BSPT Brass
SKU:
10013105

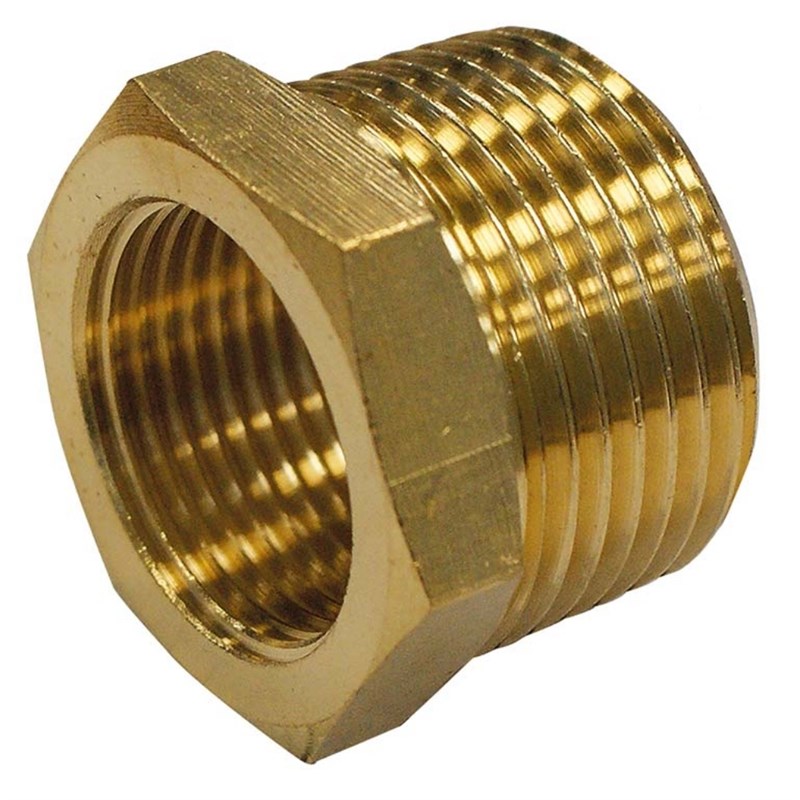

The Tom Parker 1/4" Male x 1/8" Female BSPT Brass Reducing Bush is a compact threaded adaptor designed to reduce a 1/4" BSPT port to accept a 1/8" BSP threaded fitting. Manufactured from high-quality forged brass, it is ideal for pneumatic, instrumentation and general industrial fluid systems.
Features & Benefits
» Reduces a 1/4" BSPT threaded port to a 1/8" BSP female connection
» Manufactured from high-quality forged brass
» Corrosion-resistant construction for long service life
» Hexagonal body for secure installation
» Suitable for compressed air, water and light oils
» BSPT tapered male thread provides a pressure-tight seal
» Compact design for restricted installation spaces
» Ideal for pneumatic, hydraulic and instrumentation systems
Technical Specifications
» Brand: Tom Parker
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 1/4" BSPT
» Female Thread Size: 1/8" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 19 TPI
» Female Thread Pitch: 28 TPI
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
