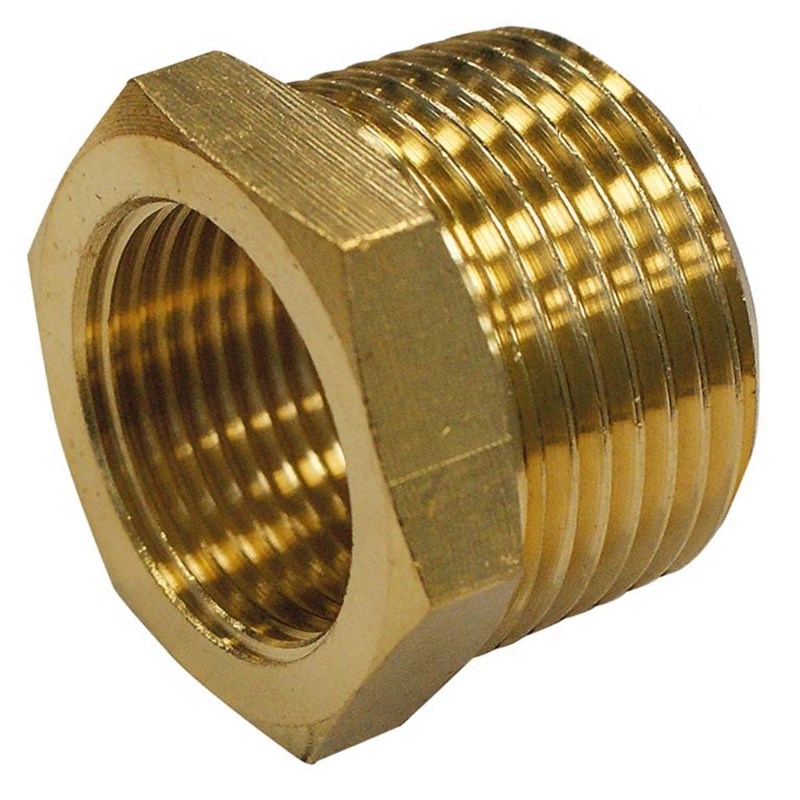

Bush 1/2" x 1/4" BSPT Brass
SKU:
10013108
The Tom Parker 1/2" Male x 1/4" Female BSPT Brass Reducing Bush is a compact threaded adaptor designed to reduce a 1/2" BSPT port to accept a 1/4" BSP threaded fitting. Manufactured from forged brass, it is ideal for pneumatic, plumbing and industrial applications.
Features & Benefits
» Reduces a 1/2" BSPT threaded port to a 1/4" BSP female connection
» Durable forged brass construction
» Hexagonal body for simple installation
» Corrosion-resistant finish
» Suitable for compressed air, water and oils
» BSPT tapered male thread ensures reliable sealing
» Compact, space-saving design
» Suitable for industrial, hydraulic and pneumatic systems
Technical Specifications
» Brand: Tom Parker
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 1/2" BSPT
» Female Thread Size: 1/4" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 14 TPI
» Female Thread Pitch: 19 TPI
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
