Bush 1/2" x 3/8" BSPT Brass
SKU:
10013109

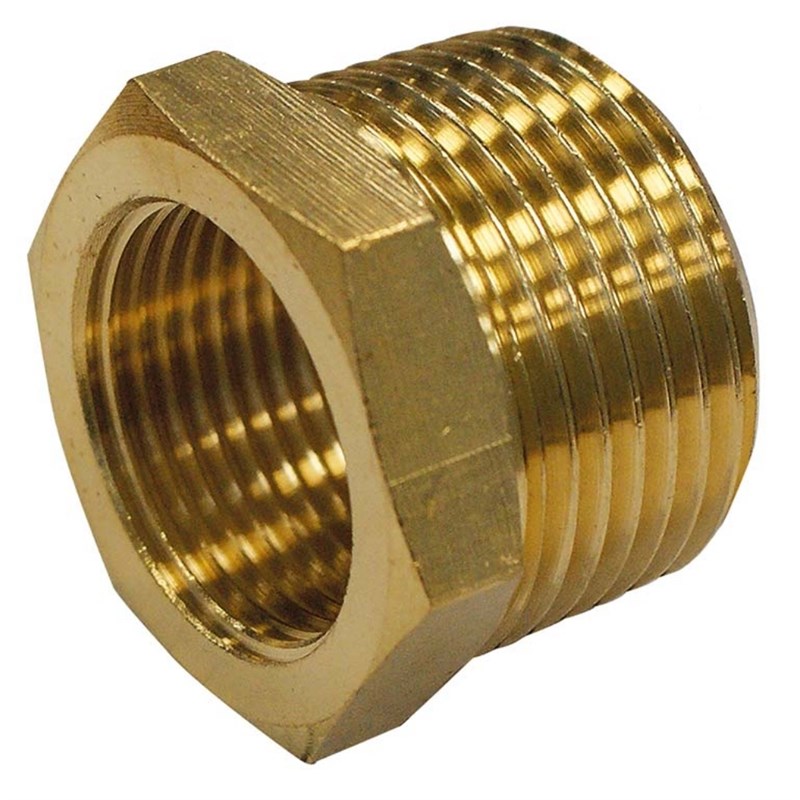

The Tom Parker 1/2" Male x 3/8" Female BSPT Brass Reducing Bush is a compact brass adaptor designed to reduce a 1/2" BSPT threaded port to accept a 3/8" BSP threaded fitting. It is manufactured from forged brass for long-lasting performance in industrial, pneumatic and plumbing applications.
Features & Benefits
» Reduces a 1/2" BSPT threaded port to a 3/8" BSP female connection
» Heavy-duty forged brass construction
» Hexagonal body for easy installation
» Excellent corrosion resistance
» Suitable for compressed air, water and industrial fluids
» BSPT tapered male thread provides a pressure-tight seal
» Compact, space-saving design
» Suitable for hydraulic, pneumatic and plumbing systems
Technical Specifications
» Brand: Tom Parker
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 1/2" BSPT
» Female Thread Size: 3/8" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 14 TPI
» Female Thread Pitch: 19 TPI
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
