Bush 3/4" x 1/4" BSPT Brass
SKU:
10013110

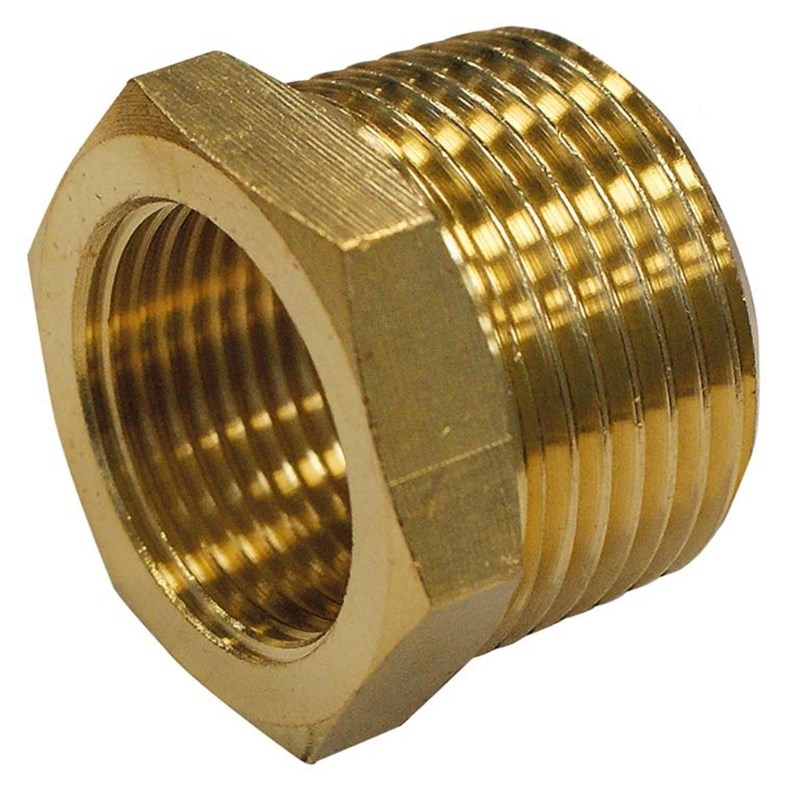

The Tom Parker 3/4" Male x 1/4" Female BSPT Brass Reducing Bush is a compact brass adaptor designed to reduce a 3/4" BSPT threaded port to accept a 1/4" BSP threaded fitting. It is manufactured from forged brass for dependable use in industrial, pneumatic and plumbing applications.
Features & Benefits
» Reduces a 3/4" BSPT threaded port to a 1/4" BSP female connection
» Manufactured from forged brass for strength and durability
» Corrosion-resistant construction
» Hexagonal body provides easy installation
» Suitable for compressed air, water and industrial fluids
» BSPT tapered male thread ensures reliable sealing
» Compact design saves installation space
» Suitable for plumbing, hydraulic and pneumatic applications
Technical Specifications
» Brand: Tom Parker
» Product Type: Brass Reducing Bush
» Configuration: Hexagon Head Reducing Bush
» Male Thread Size: 3/4" BSPT
» Female Thread Size: 1/4" BSP
» Male Thread Standard: ISO 7-1 / BS 21
» Male Thread Pitch: 14 TPI
» Female Thread Pitch: 19 TPI
» Material: High-Tensile Forged Brass (C3771 / CZ121)
» Finish: Natural Brass
» Maximum Working Pressure: 30–40 Bar
» Operating Temperature: -20°C To +150°C
» Suitable Media: Compressed Air / Water / Glycol Mixtures / Inert Gases / Alcohols / Light Hydraulic Oils / Mineral Oils
