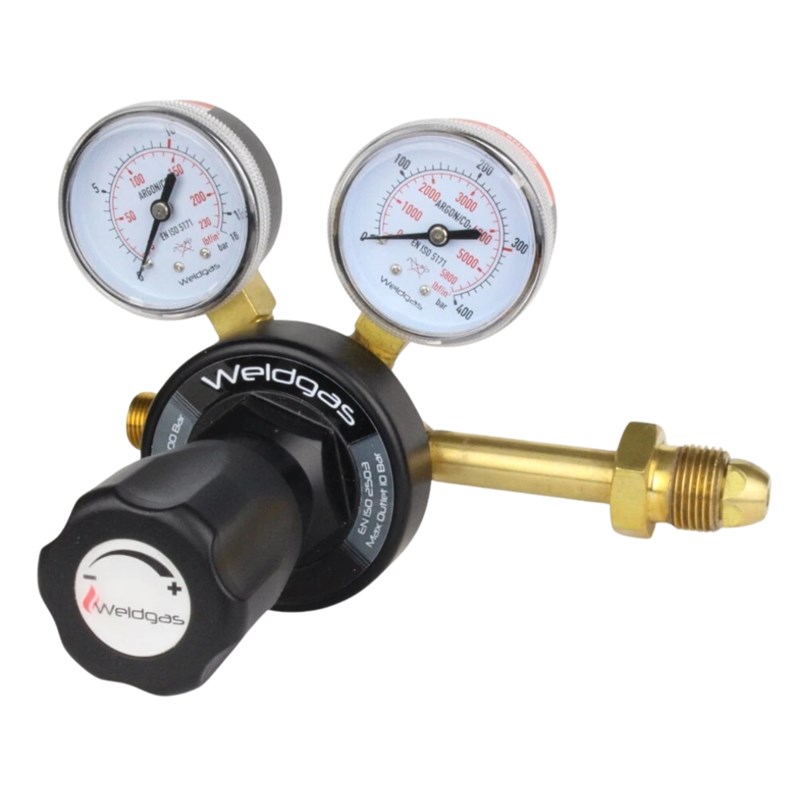

Regulator Arg/Co2 S/Stge 2G Side Entry GAS0011
SKU:
10063132
The Weldgas GAS0011 Single Stage 2 Gauge Side Entry Argon/CO2 Regulator is a heavy-duty gas regulator designed to provide controlled shielding gas delivery for MIG and TIG welding applications. Featuring dual gauges, a 0–35L/min flow range and a side-entry configuration, it is suitable for use with pure argon and Argon/CO2 gas mixtures.
In Stock
Typical Lead Time: 12 Days
Features & Benefits
» Single-stage regulator designed for controlled delivery of argon and Argon/CO2 shielding gases
» Side-entry configuration is suitable for cylinders with side outlet valves while maintaining an upright gauge position
» Dual-gauge design provides clear indication of cylinder contents pressure and gas delivery flow
» Adjustable 0–35L/min outlet flow range supports a wide variety of MIG and TIG welding applications
» Rated for cylinder inlet pressures up to 300bar
» Encapsulated valve design provides consistent pressure regulation and controlled gas delivery
» Heavy-duty forged brass body provides durability for demanding workshop and industrial environments
» Fibre-reinforced neoprene diaphragm provides flexibility and resistance to pressure cycling
» Integrated 10μm sintered bronze inlet filter helps prevent cylinder debris from entering the regulator mechanism
» 50mm high-contrast gauge dials provide clear visibility of operating information
» Manufactured in accordance with BS EN ISO 2503 with gauges conforming to BS EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS0011
» Product Type: Argon/CO2 Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Compatible Gases: Argon And Argon/CO2 Mixtures
» Maximum Inlet Pressure: 300bar
» Outlet Flow Range: 0–35L/min
» Entry Configuration: Side Entry
» Inlet Connection: G 5/8in BSP Right-Hand Male
» Inlet Standard: BS 341 No. 3
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Outlet Flow Rate
» Body Material: Forged Brass
» Bonnet Material: Zinc Alloy
» Gauge Casing Material: Steel
» Diaphragm Material: Fibre-Reinforced Neoprene
» Valve Seat Material: PCTFE/PTFE Composite
» Inlet Filter: 10μm Sintered Bronze
» Handwheel Material: ABS Plastic
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
» Warranty: 2 Years
