Broach Cutter 18mm x 50 M2 18L RAPL180
SKU:
10010471

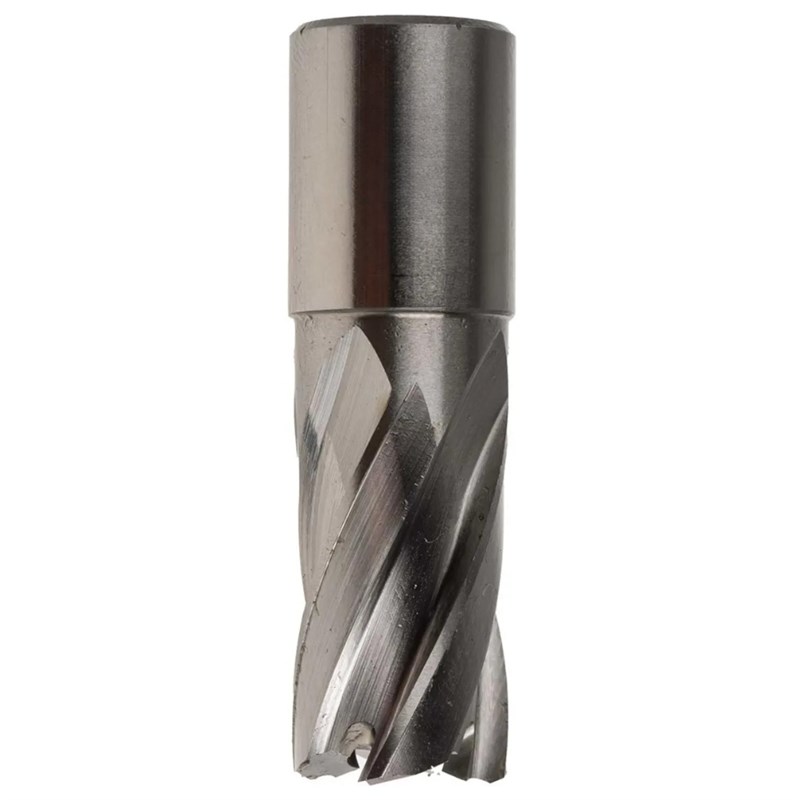

The Rotabroach RAPL180 Raptor M2AL Long Series Annular Cutter 18mm is a premium long-series cutter designed for deep, precise hole cutting in structural steel and other metals. It highlights M2AL high-speed steel construction, a 50mm cutting depth, and a 3/4in Weldon shank for professional magnetic drilling applications.
Features & Benefits
» Professional long-series annular cutter designed for deep hole drilling applications
» Manufactured from premium M2AL high-speed steel for exceptional cutting performance and durability
» Aluminium-alloyed M2 steel provides improved heat resistance, reduced friction, and extended tool life
» Long-series design offers a maximum cutting depth of 50mm
» Precision cutting geometry delivers fast, accurate holes with minimal burr formation
» 27.5° helix angle efficiently evacuates swarf for smoother cutting performance
» Reinforced wall thickness and stepped body design maximise cutter rigidity while reducing cutting drag
» Step-hardened cutting teeth provide outstanding wear resistance and long service life
» Engineered with a 20° clearance angle to minimise vibration and improve cutting stability
» Suitable for structural steel, mild steel, alloy steels, aluminium, copper, brass, and engineering plastics
» Compatible with all major magnetic drilling machines using a standard 3/4in Weldon shank
» Designed for use with a suitable long-series pilot pin to ensure accurate centring, coolant delivery, and automatic slug ejection
» Ideal for construction, fabrication, rail, oil and gas, engineering, mining, and industrial maintenance applications
Technical Specifications
» Brand: Rotabroach
» Product Range: Raptor M2 Long Series
» Model: RAPL180
» Product Type: Long Series Annular Cutter
» Cutter Diameter: 18mm
» Maximum Cutting Depth: 50mm
» Cutter Material: M2AL High-Speed Steel (HSS)
» Shank Type: 19.05mm (3/4in) Weldon
» Internal Bore Diameter: 6mm
» Helix Angle: 27.5°
» Wall Thickness: 4.6mm
» Cutting Teeth Hardness: HRC 65-67
» Shank Hardness: HRC 50-60
» Core Body Hardness: HRC 63-65
» Clearance Angle: 20°
» Maximum Material Tensile Strength: Up To 900 N/mm²
» Approximate Weight: 0.20kg
» Suitable Materials: Structural Steel, Mild Steel, Alloy Steel, Aluminium, Copper, Brass, And High-Density Plastics
» Machine Compatibility: Magnetic Drilling Machines With 3/4in Weldon Arbor
» Recommended Pilot Pin: 6mm x 103mm Long Series (Rotabroach SRA50 Or Equivalent)
» Typical Applications: Construction, Engineering, Steel Fabrication, Rail, Petrochemical, Oil & Gas, Mining, And Industrial Maintenance
