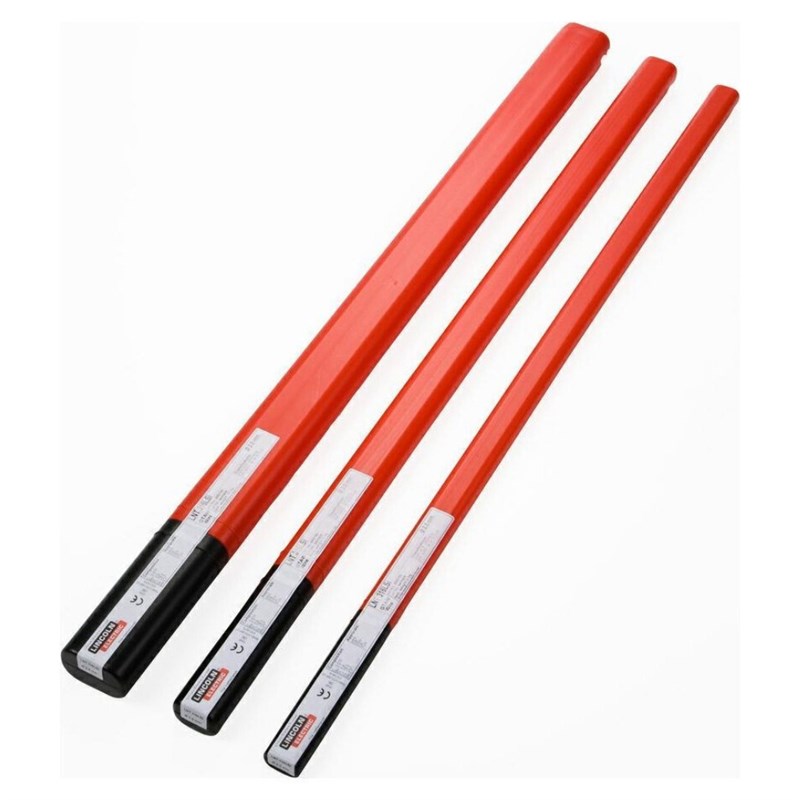

Tig Rod 316L 3.2mm x 5Kg Stainless Lincoln
SKU:
10023994
The Lincoln Electric LNT 316L 3.2mm Stainless Steel TIG Rod is a premium solid filler rod designed for TIG welding 316-series and other compatible austenitic stainless steels. Its larger 3.2mm diameter provides increased filler metal deposition for heavier plate, thick-walled pipework and demanding multi-pass fabrication while its extra-low carbon and molybdenum-alloyed composition supports corrosion-resistant welds.
Features & Benefits
» Premium solid 316L stainless steel filler rod designed for professional GTAW/TIG welding applications
» 3.2mm rod diameter provides increased filler metal deposition for heavier plate, thick-walled pipework and multi-pass welding
» Extra-low carbon composition helps minimise chromium carbide precipitation and supports resistance to intergranular corrosion
» Molybdenum-alloyed composition provides enhanced resistance to pitting and crevice corrosion in chloride-containing environments
» Suitable for welding 316, 316L, 316Ti, 316H and other compatible austenitic stainless steel grades
» Designed for use with 100% Argon shielding gas for clean and controlled TIG welding
» Suitable for all standard welding positions except vertical down
» Excellent low-temperature toughness supports demanding applications exposed to sub-zero service conditions
» 1000mm straight rod format provides convenient manual filler addition during TIG welding
» Supplied in a protective 5kg tube for professional workshop and production applications
» Suitable for applications including marine fabrication, chemical processing equipment, heavy stainless steel pipework and corrosion-resistant structures
» Classified to AWS A5.9 ER316L and EN ISO 14343-A W 19 12 3 L
Technical Specifications
» Brand: Lincoln Electric
» Product Range: LNT 316L
» Product Type: Stainless Steel TIG Filler Rod
» Alloy Grade: 316L
» AWS Classification: AWS A5.9 ER316L
» ASME Classification: ASME SFA-A5.9 ER316L
» EN ISO Classification: EN ISO 14343-A W 19 12 3 L
» Material Number: 1.4430
» Welding Process: GTAW / TIG
» Rod Type: Solid
» Rod Diameter: 3.2mm
» Rod Length: 1000mm
» Pack Weight: 5kg
» Packaging Type: Protective Tube
» Current Type: DC
» Polarity: DC-
» Typical Welding Current: 150–220A
» Recommended Shielding Gas: 100% Argon / I1
» Welding Positions: PA, PB, PC, PF And PE
» Vertical-Down Welding: Not Suitable
» Carbon Content: Approximately 0.01%
» Manganese Content: Approximately 1.50%
» Silicon Content: Approximately 0.50%
» Chromium Content: Approximately 18.5%
» Nickel Content: Approximately 12.0%
» Molybdenum Content: Approximately 2.7%
» Yield Strength: ≥400MPa
» Tensile Strength: ≥510MPa
» Elongation: ≥30%
» Charpy V-Notch Impact Value At +20°C: Approximately 140J
» Charpy V-Notch Impact Value At -120°C: ≥60J
