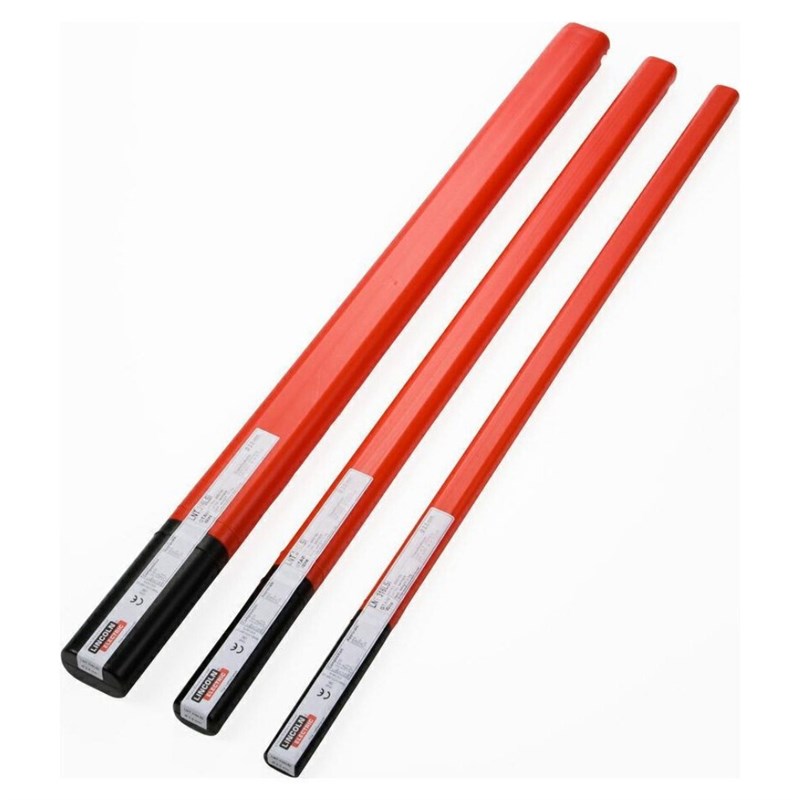

Tig Rod LNT Ni 1 2.4mm 5Kg Lincoln
SKU:
10024002
The Lincoln Electric LNT Ni1 2.4mm TIG Welding Rod is a low-alloy, nickel-bearing solid filler rod designed for welding fine-grained and high-strength steels in demanding low-temperature applications. Its controlled nickel composition provides excellent sub-zero impact toughness, making it particularly suitable for offshore structures, pipelines, pressure vessels and LNG-related fabrication.
Features & Benefits
» Low-alloy nickel-bearing solid filler rod designed for professional GTAW/TIG welding applications
» Approximately 0.9% nickel content provides excellent weld metal toughness for demanding low-temperature service
» Delivers a minimum Charpy V-notch impact value of 47J at -60°C for fabrication exposed to severe sub-zero conditions
» Controlled chemical composition makes the wire suitable for compatible sour-service applications requiring appropriate material and procedure qualification
» 2.4mm rod diameter provides a practical balance of filler deposition and weld pool control for structural and pipe welding
» Suitable for fine-grained structural steels, low-alloy nickel steels and compatible pipeline steel grades
» Designed for DC electrode negative polarity with 100% Argon shielding gas
» Suitable for all standard welding positions except vertical down
» 1000mm straight rod format provides convenient manual filler addition during TIG welding
» Supplied in a resealable 5kg protective PE tube to help protect the rods during storage and handling
» Suitable for applications including offshore structures, pipelines, pressure vessels and LNG-related fabrication
» Classified to AWS A5.28 ER80S-Ni1 and EN ISO 636-A W 42 6 W3Ni1
Technical Specifications
» Brand: Lincoln Electric
» Product Range: LNT Ni1
» Manufacturer Part Number: 605136
» Alternative Part Number: 95839
» Product Type: Low-Alloy Steel TIG Filler Rod
» AWS Classification: AWS A5.28 ER80S-Ni1
» ASME Classification: ASME SFA-A5.28 ER80S-Ni1
» EN ISO Classification: EN ISO 636-A W 42 6 W3Ni1
» Welding Process: GTAW / TIG
» Rod Type: Solid
» Rod Diameter: 2.4mm
» Rod Length: 1000mm
» Pack Weight: 5kg
» Packaging Type: Resealable PE Tube
» Current Type: DC
» Polarity: DC-
» Recommended Shielding Gas: 100% Argon / I1
» Recommended Gas Flow Rate: 10–15 L/min
» Welding Positions: PA, PB, PC, PF And PE
» Vertical-Down Welding: Not Suitable
» Carbon Content: Approximately 0.08%
» Manganese Content: Approximately 1.00%
» Silicon Content: Approximately 0.60%
» Nickel Content: Approximately 0.90%
» Phosphorus Content: ≤0.015%
» Sulphur Content: ≤0.015%
» Yield Strength: ≥420MPa
» Tensile Strength: 500–640MPa
» Elongation: ≥22%
» Charpy V-Notch Impact Value At -46°C: ≥80J
» Charpy V-Notch Impact Value At -60°C: ≥47J
