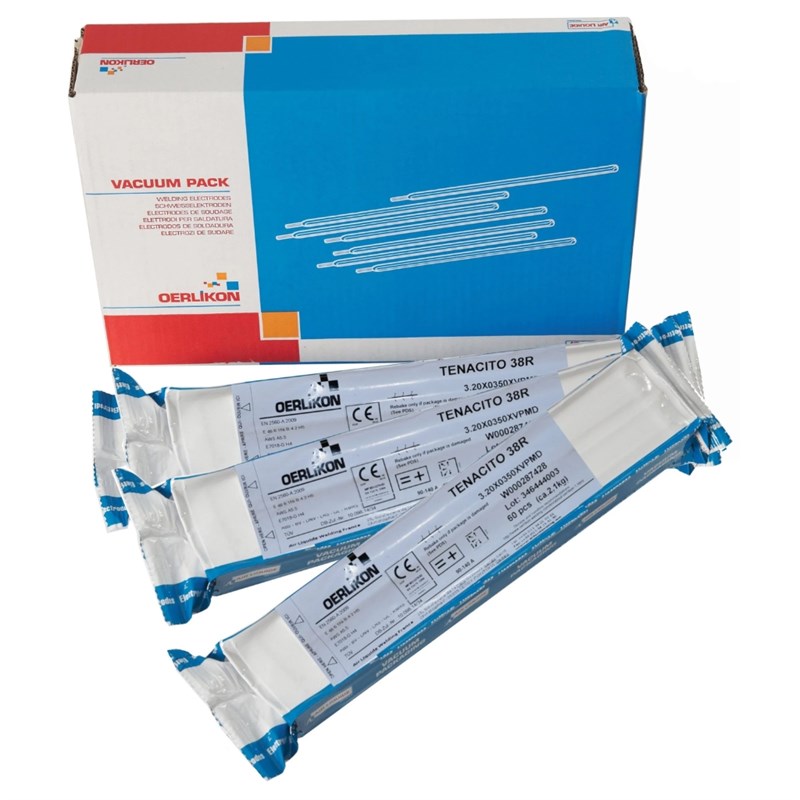

Electrode Tenacito 38R 2.5mm 2.11Kg VacPac
SKU:
10024236
The Oerlikon Tenacito 38R 2.5mm Welding Electrodes are premium low-hydrogen, double-coated basic MMA electrodes designed for high-integrity structural and positional welding. Supplied in a moisture-resistant VacPac, they provide a concentrated, stable arc with excellent low-temperature toughness for demanding fabrication applications.
In Stock
Typical Lead Time: 32 Days
Features & Benefits
» Premium low-hydrogen basic MMA electrode designed for high-integrity structural and fabrication welding
» Double-coated construction produces a concentrated and stable arc for excellent operator control
» 2.5mm diameter is particularly suited to root runs, positional welding and applications requiring controlled weld deposition
» Excellent gap-bridging characteristics support demanding root pass and joint preparation requirements
» Ultra-low diffusible hydrogen performance helps reduce the risk of hydrogen-induced weld cracking
» Approximately 1% nickel alloying provides excellent weld metal toughness at sub-zero temperatures
» Impact toughness of at least 47J at -60°C makes the electrode suitable for demanding low-temperature applications
» Suitable for all welding positions except vertical down
» Designed for DC positive polarity with a recommended welding current of 65–90A
» VacPac packaging protects the electrodes against atmospheric moisture and maintains controlled low-hydrogen condition while sealed
» Suitable for high-yield fine-grained steels with yield strengths up to approximately 460MPa
» Designed for demanding applications including offshore structures, pressure vessels, petrochemical fabrication and high-integrity pipework
Technical Specifications
» Brand: Oerlikon
» Manufacturer: Lincoln Electric
» Product Range: Tenacito 38R
» Product Type: Low-Hydrogen MMA Welding Electrode
» Coating Type: Basic Double-Coated
» AWS Classification: AWS A5.5 E7018-G H4
» EN ISO Classification: EN ISO 2560-A E 46 6 1Ni B 42 H5
» Electrode Diameter: 2.5mm
» Electrode Length: 350mm
» Packet Weight: 2.11kg
» Packaging Type: VacPac
» Recommended Welding Current: 65–90A
» Current Type: DC
» Polarity: DC+
» Welding Positions: All Positions Except Vertical Down
» Yield Strength: ≥460MPa
» Tensile Strength: 530–650MPa
» Elongation: ≥22%
» Charpy V-Notch Impact Value: ≥47J At -60°C
» Diffusible Hydrogen Classification: H4 / H5
» Carbon Content: Approximately 0.06%
» Manganese Content: Approximately 1.3%
» Silicon Content: Approximately 0.4%
» Nickel Content: Approximately 0.95%
» Phosphorus Content: ≤0.012%
» Sulphur Content: ≤0.015%
