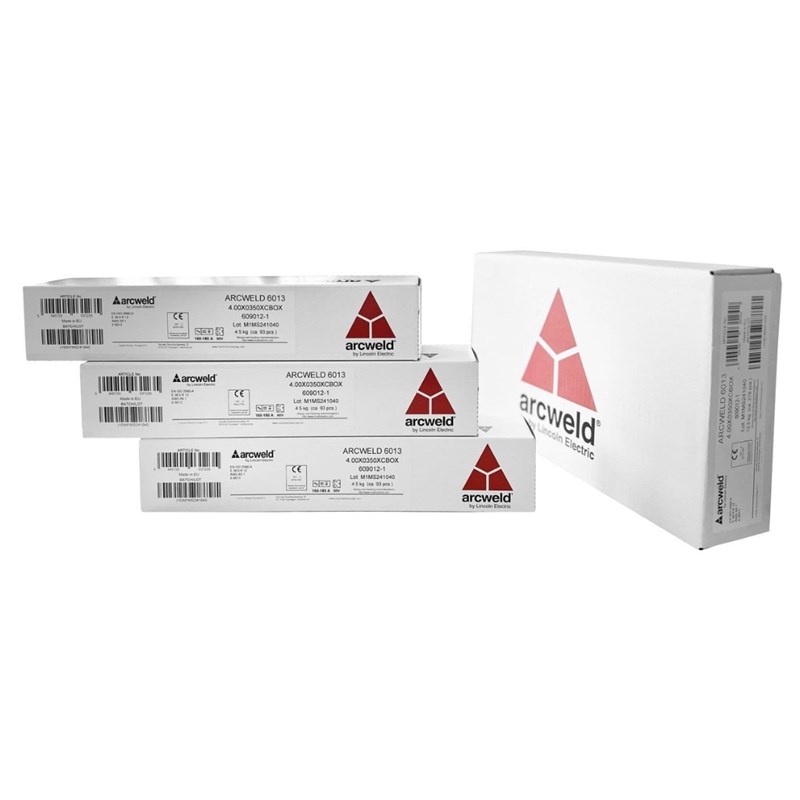

Electrode Arcweld 6013 2.5mm 4.5Kg Pkt Lincoln
SKU:
10023934
The Lincoln Electric Arcweld 6013 2.5mm Welding Electrodes are general-purpose rutile-coated MMA electrodes designed for welding mild and low-carbon steels. Offering easy arc striking, a smooth stable arc and good bead appearance, they are suitable for all-position welding across fabrication, maintenance and repair applications.
In Stock
Typical Lead Time: 7 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» General-purpose E6013 rutile-coated MMA electrode designed for mild and low-carbon steel
» Easy arc ignition and re-striking provide straightforward operation for fabrication, maintenance and repair work
» Smooth and stable arc characteristics provide good operator control and consistent weld deposition
» Suitable for AC, DC positive and DC negative welding power sources
» All-position capability supports flat, horizontal, vertical and overhead welding
» Rutile coating produces a smooth weld bead with low spatter under suitable welding conditions
» Slag is designed for easy removal to reduce post-weld cleaning requirements
» 2.5mm electrode diameter is well suited to lighter fabrication and relatively thin steel sections
» Suitable for applications including sheet metal fabrication, repairs, gates, fencing, steel tubing and general ironwork
» Supplied in a 4.5kg packet for professional workshop and fabrication use
» Classified to AWS A5.1 E6013 and EN ISO 2560-A E 38 0 R 12
Technical Specifications
» Brand: Lincoln Electric
» Product Range: Arcweld 6013
» Product Type: MMA Welding Electrode
» AWS Classification: AWS A5.1 E6013
» EN ISO Classification: EN ISO 2560-A E 38 0 R 12
» Electrode Diameter: 2.5mm
» Electrode Length: 350mm
» Packet Weight: 4.5kg
» Coating Type: Rutile
» Base Materials: Mild Steel And Low-Carbon Steel
» Recommended Welding Current: 60–90A
» Current Type: AC Or DC
» DC Polarity: DC+ Or DC-
» Welding Positions: All Positions
» Minimum Open Circuit Voltage: Approximately 42–45V
» Yield Strength: ≥380MPa
» Tensile Strength: 470–540MPa
» Elongation: ≥22%
» Charpy V-Notch Impact Value: ≥47J At 0°C
