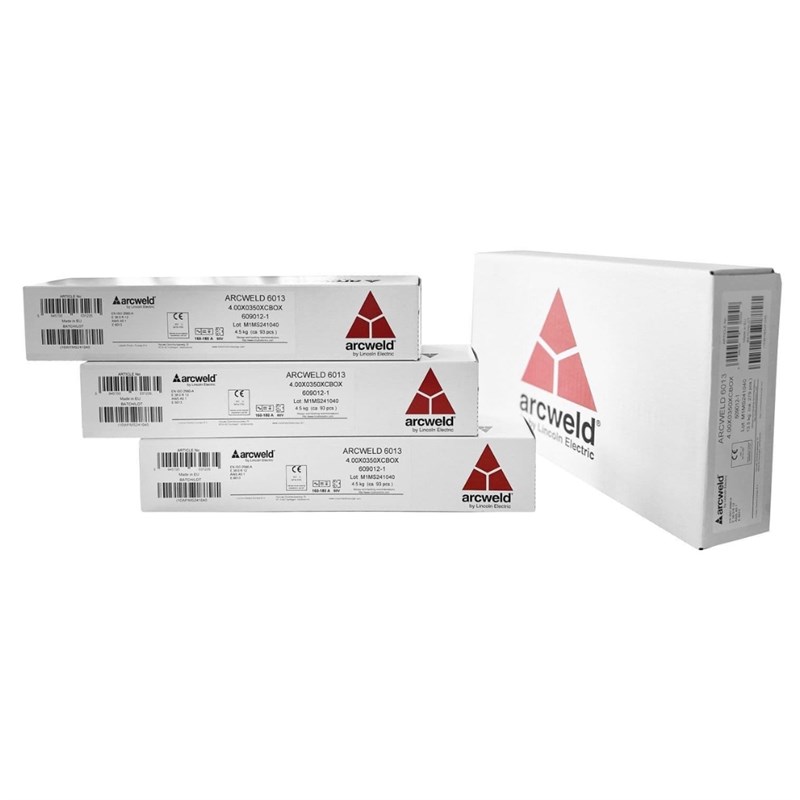

Electrode Arcweld 6013 4.0mm x4.5Kg Pkt Lincoln
SKU:
10023936
The Lincoln Electric Arcweld 6013 4.0mm Welding Electrodes are general-purpose rutile-coated MMA electrodes designed for welding mild and low-carbon steels. The larger 4.0mm diameter provides increased weld metal deposition for heavier fabrication while retaining easy arc striking, stable operation and good slag release.
In Stock
Typical Lead Time: 20 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» General-purpose E6013 rutile-coated MMA electrode designed for mild and low-carbon steel
» 4.0mm electrode diameter provides increased weld metal deposition for heavier fabrication and thicker steel sections
» Easy arc ignition and re-striking support efficient operation during multi-pass welding
» Smooth and stable arc characteristics provide good operator control and consistent weld deposition
» Suitable for AC, DC positive and DC negative welding power sources
» All-position capability supports flat, horizontal, vertical and overhead welding
» Rutile coating produces a consistent weld bead with low spatter under suitable welding conditions
» Slag is designed for easy removal to help reduce post-weld cleaning requirements
» 400mm electrode length is suited to higher-deposition welding on heavier steel sections
» Suitable for structural fabrication, heavy plate work, machinery maintenance and general repair applications
» Supplied in a 4.5kg packet for professional workshop and fabrication use
» Classified to AWS A5.1 E6013 and EN ISO 2560-A E 38 0 R 12
Technical Specifications
» Brand: Lincoln Electric
» Product Range: Arcweld 6013
» Product Type: MMA Welding Electrode
» AWS Classification: AWS A5.1 E6013
» EN ISO Classification: EN ISO 2560-A E 38 0 R 12
» Electrode Diameter: 4.0mm
» Electrode Length: 400mm
» Packet Weight: 4.5kg
» Coating Type: Rutile
» Base Materials: Mild Steel And Low-Carbon Steel
» Recommended Welding Current: 140–190A
» Current Type: AC Or DC
» DC Polarity: DC+ Or DC-
» Welding Positions: All Positions
» Minimum Open Circuit Voltage: Approximately 45V
» Yield Strength: ≥380MPa
» Tensile Strength: 470–540MPa
» Elongation: ≥22%
» Charpy V-Notch Impact Value: ≥47J At 0°C
