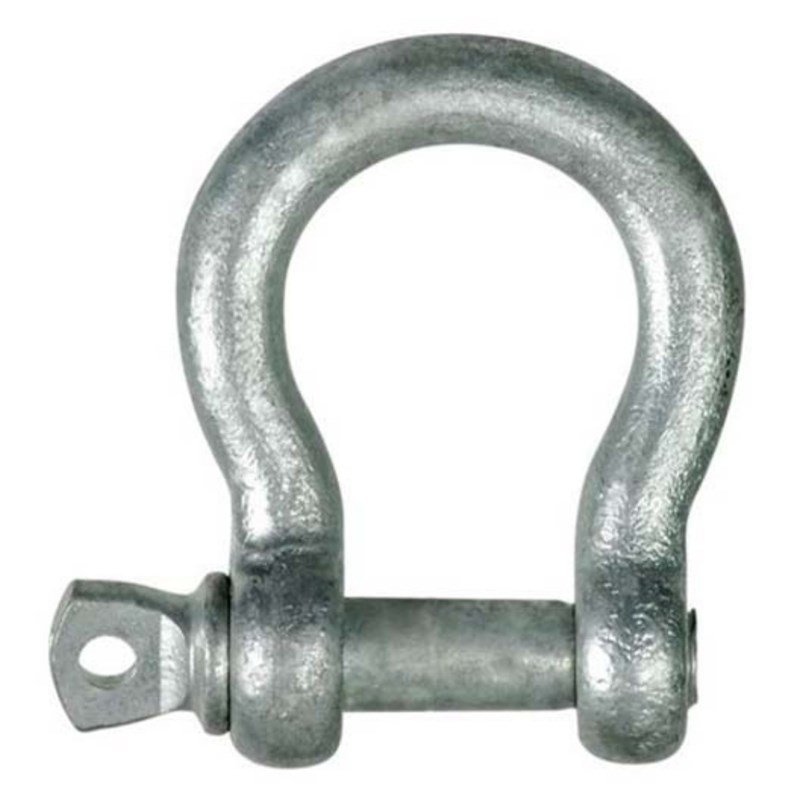

Shackle Bow 12T Green Screw Pin SH0040
SKU:
10008922
The Green Pin® 12 Tonne Screw Pin Bow Shackle is a premium certified lifting shackle designed for heavy-duty rigging, crane, recovery and offshore applications. Manufactured from quenched and tempered high-tensile steel with a hot-dip galvanised finish, it delivers outstanding strength, durability and certified overhead lifting performance.
In Stock
Typical Lead Time: 12 Days
Features & Benefits
» Premium Green Pin® bow shackle engineered for professional lifting, rigging and recovery operations
» Certified 12 tonne Working Load Limit (WLL) for overhead lifting and heavy-duty applications
» Rounded bow profile accommodates multi-directional loading and multiple sling configurations
» Manufactured from quenched and tempered Grade 6 high-tensile steel for exceptional strength and reliability
» Heavy hot-dip galvanised body provides outstanding corrosion resistance in marine and outdoor environments
» Signature Green Pin® powder-coated screw pin offers easy identification and enhanced durability
» Protected screw collar pin design prevents abrasion to wire ropes and synthetic lifting slings
» 6:1 safety factor ensures a high margin of safety for demanding lifting operations
» Ideal for construction, industrial, offshore, marine and recovery applications
» Fully certified to internationally recognised lifting and rigging standards
Technical Specifications
» Brand: Green Pin® (Van Beest)
» SKU / Model: SH0040
» Product Type: Screw Pin Bow Shackle
» Working Load Limit (WLL): 12 Tonnes (12,000kg)
» Body Diameter: 32mm (Approx. 1-1/4")
» Pin Diameter: 35mm
» Jaw Opening: 51mm
» Internal Length: 115mm
» Inside Bow Width: 83mm
» Net Weight: Approx. 4.31kg
» Material: Grade 6 Alloy / High-Tensile Steel, Quenched and Tempered
» Finish: Heavy Hot-Dip Galvanised Body with Green Powder-Coated Pin
» Safety Factor: 6:1 Minimum Breaking Load (72 Tonnes)
» Operating Temperature: -40°C to +200°C
» Pin Type: Removable Screw Collar Pin
» Certification: EN 13889, US Fed. Spec. RR-C-271 Type IVA, ASME B30.26, DNV Type Approved
» Suitable For: Overhead Lifting, Crane Operations, Rigging, Marine, Offshore and Recovery Applications
