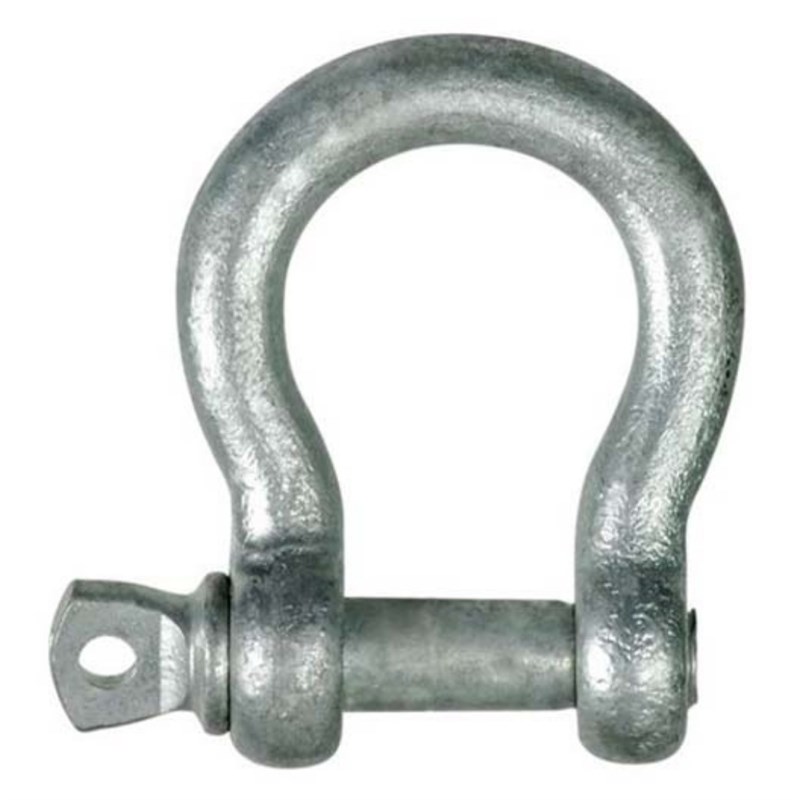

Shackle Bow 19mm Galvanised ZSH2206
SKU:
10008951
The MarineCo 19mm Galvanised Bow Shackle is a heavy-duty forged rigging shackle designed for multi-directional securing and pulling applications. Featuring a rounded bow profile, removable screw collar pin and hot-dip galvanised finish, it is ideal for marine, agricultural and industrial use.
In Stock
Typical Lead Time: 12 Days
Features & Benefits
» Heavy-duty 19mm bow shackle designed for demanding marine and industrial securing applications
» Rounded bow profile accommodates larger attachments and allows greater articulation than a D shackle
» Forged carbon steel construction provides excellent strength and durability
» Heavy hot-dip galvanised finish offers outstanding corrosion resistance in marine and outdoor environments
» Removable screw collar pin enables quick installation and secure fastening
» Suitable for anchor chains, mooring systems, agricultural tie-downs, static rigging and wire rope connections
» Bow design distributes load more effectively where minor angular movement is present
» Ideal for marine, agricultural, commercial and general industrial securing applications
Technical Specifications
» Brand: MarineCo
» SKU / Part Number: ZSH2206
» Product Type: Galvanised Bow Shackle
» Shackle Profile: Bow Type (Anchor / Rounded Profile)
» Body Diameter: 19mm (Approx. 3/4")
» Pin Diameter: 19mm–20mm
» Internal Width: Approx. 36mm–38mm
» Internal Length: Approx. 72mm–80mm
» Material: Forged Carbon Steel
» Finish: Heavy Hot-Dip Galvanised
» Pin Type: Removable Screw Collar Pin
» Suitable Applications: Anchor Chains, Mooring Systems, Agricultural Tie-Downs, Static Rigging, Synthetic Tow Ropes and Wire Rope Connections
» Important: Not Rated or Certified for Overhead Lifting Applications
» Loading Characteristics: Suitable for Straight-Line and Moderate Angular Pulling – Not Intended for Certified Lifting Operations
