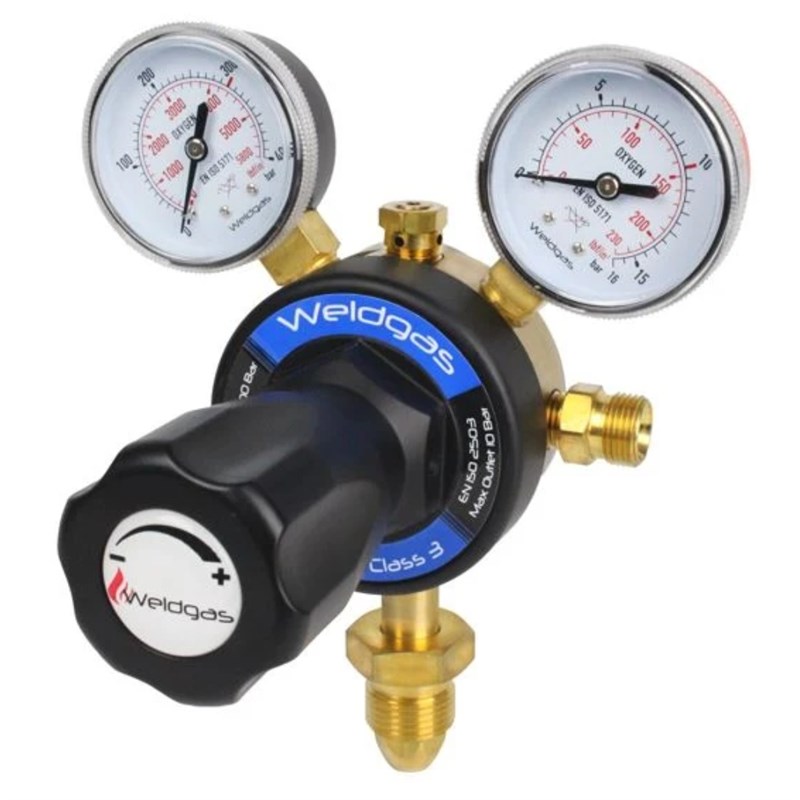

Regulator Oxygen S/Stage 2 Gauge S/Entry GAS1031
SKU:
10068048
The Weldgas GAS1031 Single Stage 2 Gauge Oxygen Regulator is a premium heavy-duty regulator designed for controlled delivery of compressed oxygen in professional welding, cutting, heating and brazing applications. Featuring twin 50mm gauges, a side-entry configuration and an adjustable 0–10bar outlet pressure range, it provides dependable pressure control for demanding industrial use.
Features & Benefits
» Premium single-stage regulator designed specifically for professional compressed oxygen applications
» Suitable for welding, cutting, heating and brazing operations in demanding industrial environments
» Rated for inlet pressures up to 300bar for use with compatible high-pressure industrial oxygen cylinders
» Adjustable 0–10bar outlet pressure range provides controlled oxygen delivery across a variety of applications
» Twin 50mm high-contrast gauges clearly display cylinder contents pressure and regulated outlet pressure
» Side-entry configuration is designed for compatible cylinders with horizontally positioned outlet valves
» Encapsulated valve design with PCTFE/PTFE seating provides dependable pressure regulation
» Hot-forged precision-machined brass body provides robust construction for demanding workshop conditions
» Fibre-reinforced elastomer diaphragm provides responsive and stable pressure control
» Internal sintered bronze filter helps prevent cylinder particulates from reaching the regulator valve mechanism
» Integrated pressure relief valve provides protection against excessive downstream pressure
» Manufactured in accordance with BS EN ISO 2503 with gauges conforming to BS EN ISO 5171
Technical Specifications
» Brand: Weldgas
» Manufacturer Part Number: GAS1031
» Product Type: Oxygen Gas Regulator
» Regulator Type: Single Stage
» Number Of Gauges: 2
» Gas Type: Compressed Oxygen
» Maximum Inlet Pressure: 300bar
» Outlet Pressure Range: 0–10bar
» Entry Configuration: Side Entry
» Inlet Connection: BS 341 No. 3
» Inlet Thread: G 5/8in BSP Right-Hand Female
» Outlet Connection: G 3/8in BSP Right-Hand Male
» Gauge Diameter: 50mm
» Gauge Functions: Cylinder Contents Pressure And Regulated Outlet Pressure
» Body Material: Hot-Forged Brass
» Valve Seat Material: PCTFE/PTFE
» Diaphragm Material: Fibre-Reinforced Elastomer
» Inlet Filter: Sintered Bronze
» Handwheel Material: ABS Plastic
» Safety Device: Pressure Relief Valve
» Regulator Standard: BS EN ISO 2503
» Gauge Standard: BS EN ISO 5171
