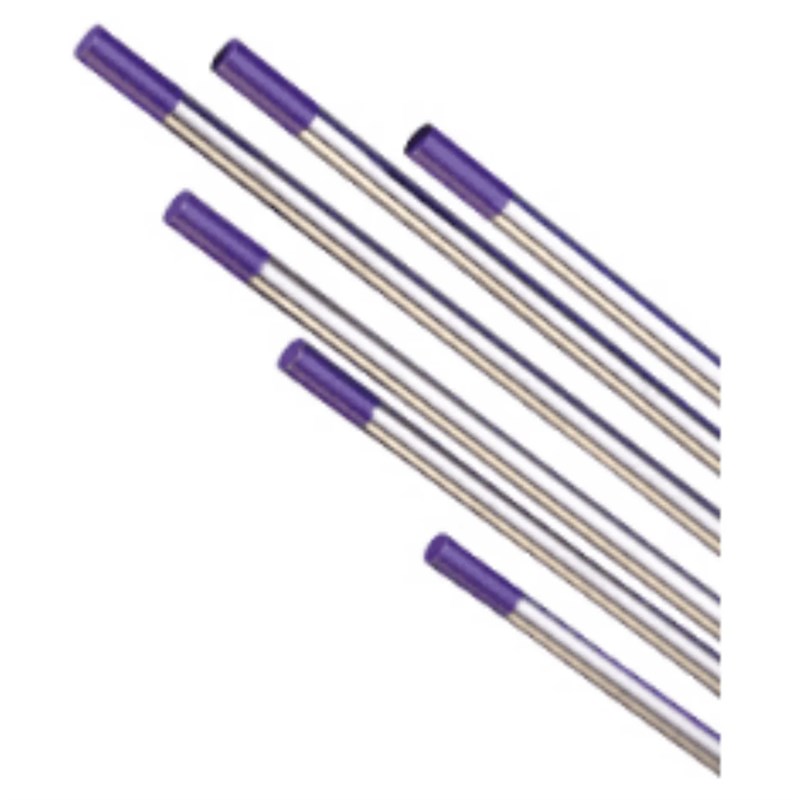

Tungsten E3 3.2mm Purple Tip
SKU:
10071986
The Abicor Binzel 3.2mm E3 Purple Tip Tungsten Electrode is a high-performance, non-consumable TIG welding electrode designed for demanding AC and DC welding applications. Featuring a proprietary rare-earth oxide blend, the E3 electrode provides excellent arc ignition, outstanding arc stability and extended service life without the radioactive properties associated with traditional thoriated tungsten. Its heavy-duty 3.2mm diameter makes it particularly suitable for high-current welding of aluminium, mild steel, stainless steel, titanium, nickel, copper and magnesium alloys.
In Stock
Typical Lead Time: 7 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» Premium E3 tungsten electrode designed for demanding professional and industrial TIG welding
» Proprietary rare-earth oxide blend provides excellent performance across both AC and DC welding applications
» Universal characteristics can help reduce the need to stock multiple specialised tungsten electrode types
» Suitable as a non-radioactive alternative to traditional thoriated tungsten electrodes
» Purple tip provides quick visual identification of the E3 electrode classification
» 3.2mm diameter provides increased current capacity for demanding and heavy-duty fabrication
» Excellent high-frequency arc ignition provides rapid, reliable and repeatable arc starts
» Stable arc characteristics help minimise arc wandering and provide accurate weld control
» Optimised thermal characteristics help reduce tip degradation during prolonged high-current welding
» Excellent tip stability supports consistent performance in manual and automated TIG applications
» Suitable for aluminium, mild steel, stainless steel, titanium, nickel, copper and magnesium alloys
» Ideal for heavy fabrication, structural work and other high-amperage TIG welding applications
» Supplied in a factory pack of 10 electrodes
Technical Specifications
» Brand: Abicor Binzel
» Product Type: TIG Tungsten Electrode
» Part Number: 700.0301.10
» Electrode Type: E3 Rare Earth
» Classification: WGE20 / Rare Earth Oxide Blend
» Electrode Diameter: 3.2mm
» Standard Electrode Length: 175mm
» Tip Colour: Purple / Lilac
» Electrode Type: Non-Consumable
» Radioactive: No
» Welding Polarity: AC / DC
» Typical Operating Range: Approximately 150A To 300A+
» Pack Quantity: 10
» Suitable Materials: Aluminium / Mild Steel / Stainless Steel / Titanium / Nickel / Copper / Magnesium Alloys
» Welding Process: TIG / GTAW
» Standards: ISO 6848 / EN 26848
