Air fed Unit G5-01VC Cpl ADF 617830 Adflo 3M
SKU:
10116205
The 3M Speedglas Heavy-Duty Welding Helmet G5-01VC with Adflo PAPR System 617830 is a complete professional welding and respiratory protection system designed for demanding fabrication, welding and grinding applications. It combines the G5-01 flip-up helmet, G5-01VC variable-colour auto-darkening filter and Adflo powered air respirator to provide integrated eye, face and respiratory protection with adjustable airflow and advanced welding filter controls.
In Stock
Typical Lead Time: 11 Days
Email a Friend
Stock Notice
Not enough Inventory? Submit your email address and desired total quantity below, and we will notify you when stock arrives.
Features & Benefits
» Complete welding and powered-air respiratory system supplied ready for professional use
» G5-01VC auto-darkening filter offers selectable welding shades and variable colour settings for improved viewing comfort
» Natural Colour Technology provides a more realistic view of the workpiece before, during and after welding
» Flip-up welding front reveals a large clear grinding visor for preparation, inspection and grinding tasks
» Adjustable internal airflow allows air to be directed towards the face, visor or divided between both areas

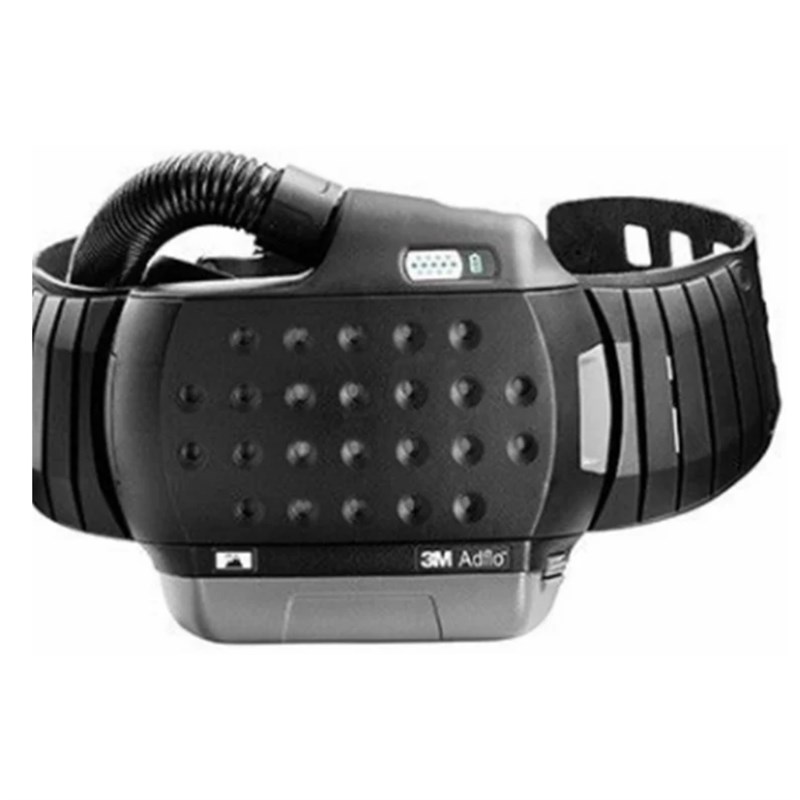

» Adflo powered air respirator supplies filtered air continuously to the helmet during use
» TH3 respiratory classification provides a high level of respiratory protection when the system is correctly configured and used
» Audible and visual alarms warn the wearer of low battery condition or restricted airflow
» Adjustable sensitivity and delay settings allow the welding filter response to be tailored to different welding processes
» Bluetooth connectivity allows compatible welding filter settings and usage information to be accessed through supported 3M applications
» Suitable for MIG/MAG, MMA, TIG, plasma welding, plasma cutting and grinding applications
» Supplied with key Adflo filtration, battery, charging and breathing components for a complete integrated system
Technical Specifications
» Brand: 3M Speedglas
» Product Range: G5-01
» Model: G5-01VC
» Part Number: 617830
» Product Type: Welding Helmet With Powered Air Respirator
» Welding Filter Type: Auto-Darkening Variable Colour
» ADF Viewing Area: 73mm x 109mm
» Light State: Shade 2.5
» Dark Shades: Shade 5 & 8-14
» Colour Settings: 3
» Sensitivity Settings: 5
» Delay Settings: 5
» Switching Time: Approximately 0.1ms
» Grinding Visor Size: 170mm x 104mm
» Respiratory System: 3M Adflo PAPR
» Respiratory Classification: TH3
» Nominal Protection Factor: 500
» Standard Airflow: 170L/min
» Boost Airflow: 200L/min
» Battery Type: Lithium-Ion
» Battery Runtime: Approximately 10-13 Hours
» Connectivity: Bluetooth
» Eye & Face Protection Standard: EN 166:B / EN 175:B
» Respiratory Standard: EN 12941 TH3
» Kit Includes: G5-01 Helmet, G5-01VC Welding Filter, Adflo PAPR, Breathing Tube, Battery, Charger, Particulate Filter, Prefilter, Spark Arrestor, Airflow Indicator, Belt & Storage Bag
