Hydraulic Hose 1/4" 2SNK 450 Bar
SKU:
10102867

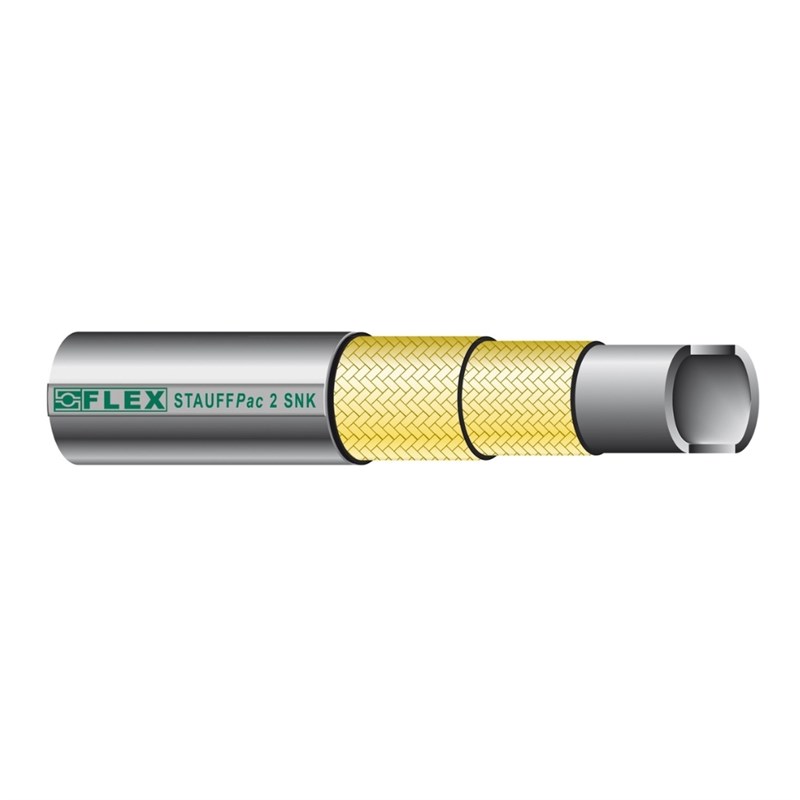

The STAUFF HOS-2SNK-06-A-STM STAUFFPAC Hydraulic Hose is a compact high-pressure double-wire braided hydraulic hose designed for demanding hydraulic systems with limited installation space. It highlights exceptional pressure capability, compact construction, and superior resistance to abrasion, ozone, and weathering.
Features & Benefits
» Compact STAUFFPAC hydraulic hose designed for high-pressure hydraulic systems with restricted installation space
» Manufactured with dual high-tensile steel braid reinforcement for exceptional pressure performance
» Compact 2-wire braid construction allows tighter bend radii and easier routing
» Maximum operating pressure of 450 bar (6,526 PSI) for demanding hydraulic applications
» Oil-resistant synthetic rubber inner tube ensures compatibility with hydraulic oils
» Abrasion-resistant outer cover improves durability in harsh industrial environments
» Ozone and weather-resistant outer layer supports extended outdoor service life
» Suitable for continuous operating temperatures up to +100°C
» Capable of withstanding temporary peak temperatures up to +120°C
» Ideal for compact hydraulic equipment, mobile machinery, and industrial systems
» Flexible construction simplifies installation in confined hydraulic layouts
» Manufactured in the Czech Republic to stringent quality standards
Technical Specifications
» Brand: STAUFF
» STAUFF Material Number: 2020046150
» Manufacturer Code: HOS-2SNK-06-A-STM
» Country Of Origin: Czech Republic
» Hose Type: STAUFFPAC 2 SNK Compact Hydraulic Hose
» Hose Diameter: 1/4in
» Nominal Diameter: DN 06
» Reinforcement: 2 High-Tensile Steel Braids
» Inner Tube Material: Oil-Resistant Synthetic Rubber
» Outer Cover Material: Abrasion, Ozone, And Weather-Resistant Synthetic Rubber
» Maximum Operating Pressure: 450 Bar / 6,526 PSI
» Minimum Operating Temperature: -40°C
» Maximum Continuous Operating Temperature: +100°C
» Maximum Peak Temperature: +120°C
» Application: Compact High-Pressure Hydraulic Systems
