Plasma Nozzle 220671 Powermax45
SKU:
10042289

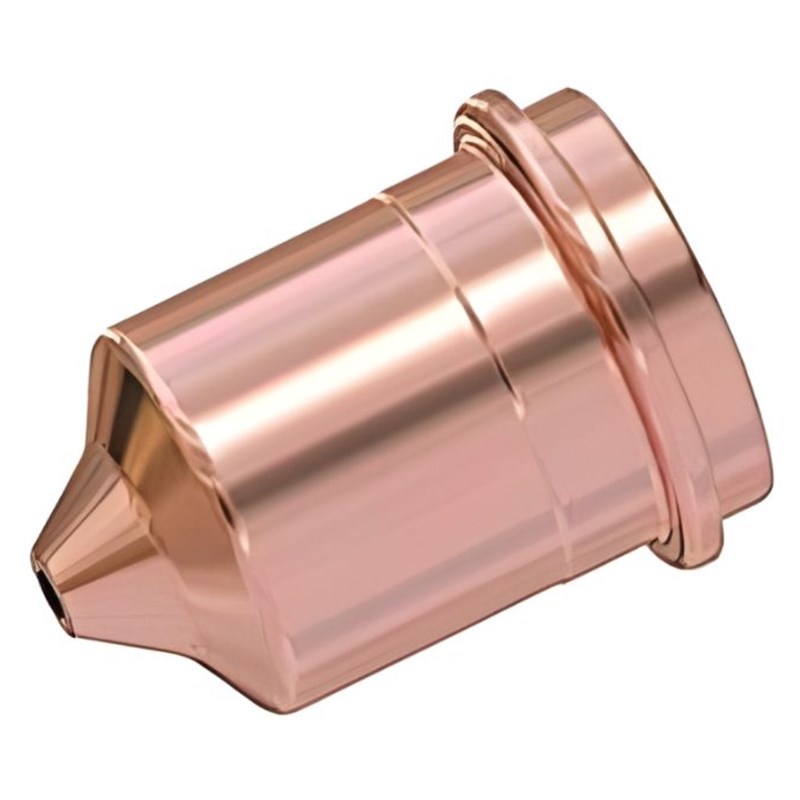

The Hypertherm 220671 Plasma Cutting Nozzle is a genuine torch consumable designed for the original Powermax45 plasma cutting system. Operating from 15A to 45A, its precision-machined copper construction tightly constricts the plasma arc for accurate handheld drag-cutting and mechanised cutting applications.
Features & Benefits
» Genuine Hypertherm consumable engineered specifically for the original Powermax45 plasma cutting system
» Precision nozzle geometry constricts and focuses the plasma arc for clean and controlled metal cutting
» Suitable for operating currents from 15A to 45A
» Supports handheld drag-cutting and mechanised plasma cutting applications
» Compatible with T45V handheld and T45M machine torch configurations
» Precision-machined copper construction provides excellent thermal and electrical conductivity
» Shielded drag-cutting configuration allows direct contact with the workpiece for easier manual cutting
» Supports a recommended handheld mild steel cutting capacity of up to 12mm when used with the appropriate Powermax45 setup
» Supports mild steel severance capacities of up to 25mm under suitable operating conditions
» Designed for use with a clean, dry and oil-free compressed air or nitrogen supply
Technical Specifications
» Brand: Hypertherm
» Manufacturer Part Number: 220671
» Product Type: Plasma Cutting Nozzle
» Current Range: 15A To 45A
» Material: Copper
» Compatible System: Powermax45
» Compatible Hand Torch: T45V
» Compatible Machine Torch: T45M
» Cutting Processes: Drag Cutting And Mechanised Cutting
» Overall Length: Approximately 16.5mm
» Main Outer Diameter: Approximately 10.16mm
» Outer Ring Diameter: Approximately 12.4mm
» Recommended Gas Pressure: 5.5bar
» Recommended Gas Flow: 170L/min
» Compatible Gas: Clean, Dry, Oil-Free Air Or Nitrogen
» Recommended Mild Steel Cut Capacity: 12mm
» Maximum Mild Steel Severance Capacity: 25mm
