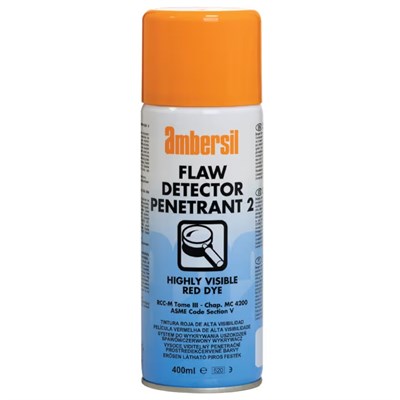

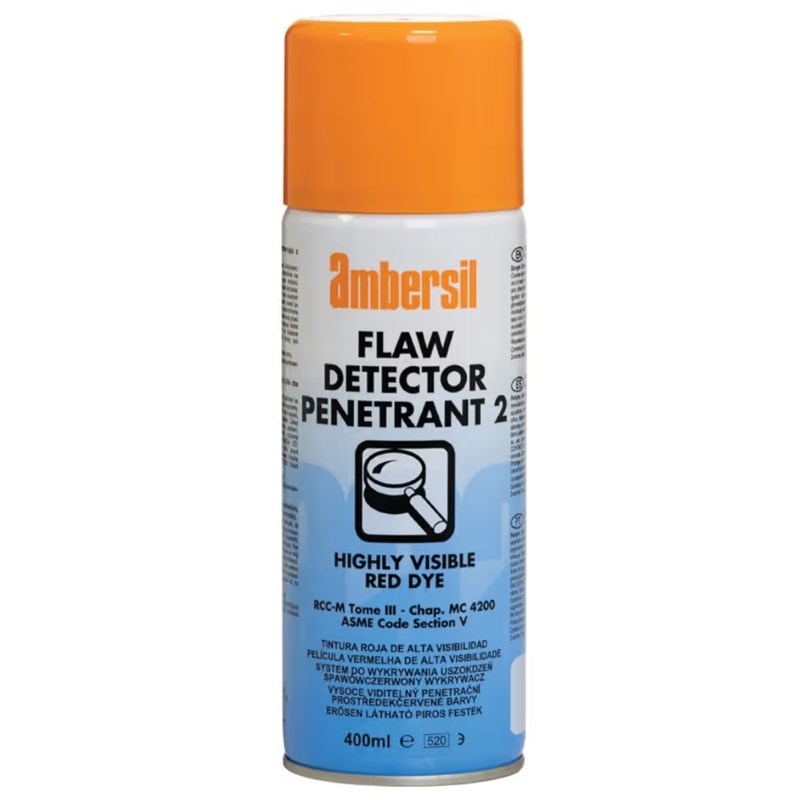

Flaw Detector Dye 400ml Penetrant 2 1030530 3028
SKU:
10042898
The Ambersil Flaw Detector Penetrant 2 is a professional red dye penetrant designed for non-destructive testing (NDT) of welds, castings and metal components. Its high-visibility, water-washable formula helps reveal fine surface defects quickly and accurately during inspection.
Features & Benefits
» Professional-grade red dye penetrant for non-destructive testing (NDT) applications
» Highly visible red dye highlights surface cracks, porosity and other defects with excellent contrast
» Ultra-low surface tension enables penetration into extremely fine surface flaws
» Rapid capillary action provides effective penetration in as little as 10 minutes
» Water-washable formulation allows easy removal of excess dye before applying developer
» Suitable for inspecting welds, castings, forgings and structural metal components
» Compatible with a wide range of materials including steel, ceramics and welded assemblies
» Ideal for engineering, fabrication, manufacturing, maintenance and quality inspection applications
Technical Specifications
» Brand: Ambersil (A CRC Industries Brand)
» Product Name: Flaw Detector Penetrant 2
» Manufacturer Part Numbers: 1030530 / 30289
» Product Type: Red Dye Penetrant for Non-Destructive Testing (NDT)
» Capacity: 400ml
» Appearance: Deep Dark Red Liquid
» Odour: Hydrocarbon / Solvent Blend
» Specific Gravity: 0.816 at 20°C
» Boiling Range: 180°C–250°C
» Flash Point: Above 70°C
» Auto-Ignition Temperature: Above 200°C
» Discharge Rate: Approx. 1.40g/sec
» Can Pressure: 3.5 Bar at 25°C
» Solubility: Water Washable
» Detectable Defect Size: Approx. 20–30 Microns
» Typical Penetration Time: Approximately 10 Minutes
» Suitable Materials: Welds, Castings, Forgings, Structural Steel and Ceramics
