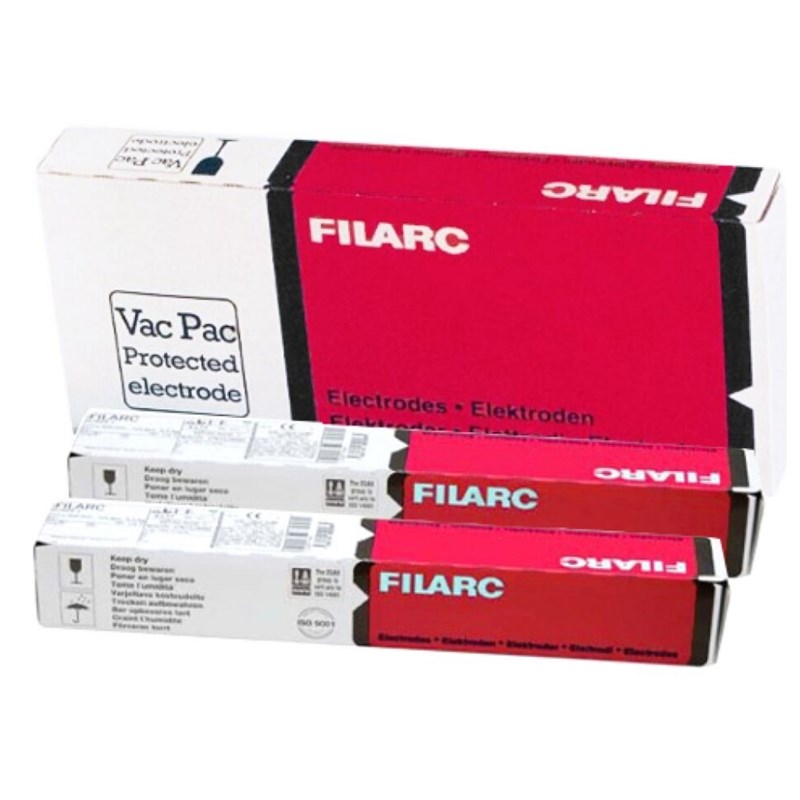

Electrode Filarc 56S 3.2mm 2.2Kg VacPac
SKU:
10024076
The ESAB Filarc 56S Low Hydrogen Welding Electrodes are professional basic-coated stick electrodes designed for structural fabrication, heavy engineering, and pipe welding. They highlight ultra-low hydrogen weld deposits, excellent low-temperature toughness, and reliable AC/DC performance for safety-critical welding applications.
Features & Benefits
» Professional low-hydrogen basic-coated electrodes for structural and heavy fabrication welding
» Ultra-low diffusible hydrogen content helps minimise the risk of hydrogen-induced cold cracking
» Longer 450mm electrode provides excellent productivity for hot passes, fill passes, and cap runs
» Thin basic coating delivers stable arc characteristics with excellent penetration and weld quality
» CTOD-tested for outstanding fracture toughness at sub-zero operating temperatures
» Suitable for welding with AC, DC+, or DC- power sources
» Vacuum-sealed VacPac packaging protects electrodes from moisture contamination and allows immediate use without rebaking while the pack remains sealed
» Produces high-strength weld deposits with excellent mechanical properties and ductility
» Ideal for structural steelwork, pressure vessels, pipelines, offshore fabrication, bridges, and heavy engineering
» Designed for professional fabrication, construction, maintenance, and safety-critical welding applications
Technical Specifications
» Brand: ESAB
» Product Range: Filarc 56S
» Product Code: 57543240G0
» Product Type: Low Hydrogen Stick Welding Electrodes (SMAW/MMA)
» AWS Classification: AWS A5.1 E7016-1 H4R
» EN ISO Classification: EN ISO 2560-A E 42 5 B 1 2 H5
» Electrode Diameter: 3.2mm
» Electrode Length: 450mm
» Coating Type: Basic Low Hydrogen (Thin Coated)
» Diffusible Hydrogen Content: Less Than 4.0ml/100g
» Recommended Welding Current: 80-140A
» Operating Voltage: Approximately 22V
» Suitable Current: AC, DC+, And DC-
» Minimum Open Circuit Voltage: 65V
» Yield Strength: 470MPa
» Tensile Strength: 550MPa
» Elongation: 30%
» Chemical Composition: Carbon 0.06%, Manganese 1.30%, Silicon 0.40%
» Low Temperature Toughness: CTOD Tested To -45°C To -60°C
» Packaging: Hermetically Sealed VacPac
» Pack Weight: 2.2kg
» Suitable Applications: Structural Steelwork, Heavy Fabrication, Pipe Welding, Pressure Vessels, Offshore Structures, Bridges, Heavy Engineering, Hot Passes, Fill Passes, And Cap Runs
