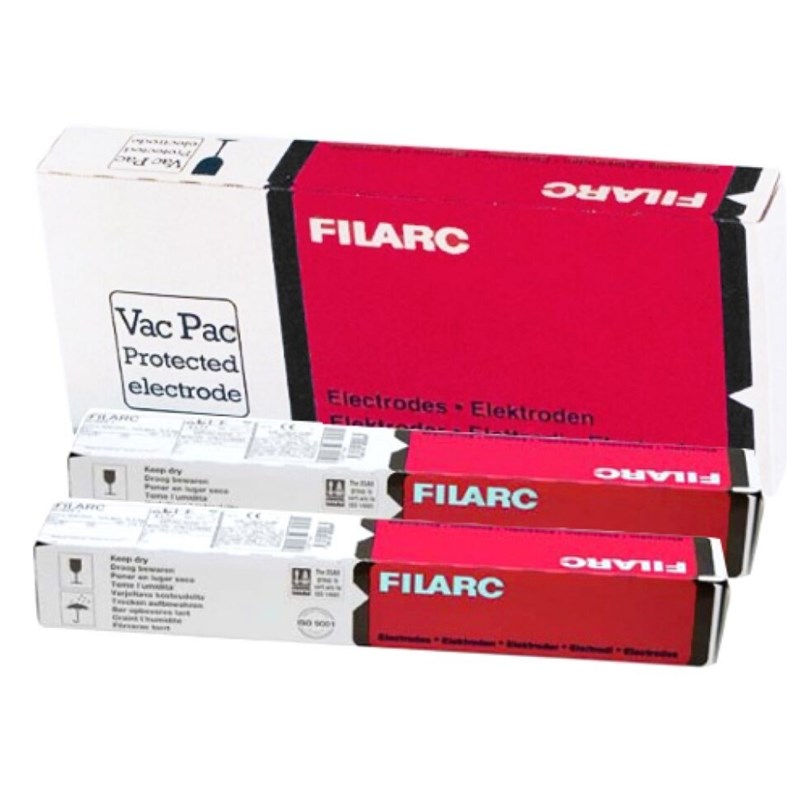

Electrode Filarc 56S 4.0mm 4.0Kg VacPac
SKU:
10024077
The ESAB Filarc 56S 4.0mm Welding Electrodes are professional low-hydrogen, thin basic-coated MMA electrodes designed for high-integrity welding of mild and low-alloy steels. Offering a stable, concentrated arc with excellent root penetration and low-temperature toughness, they are well suited to demanding structural, pressure vessel and offshore fabrication.
Back Ordered
Typical Lead Time: 7 Days
Features & Benefits
» Professional low-hydrogen basic MMA electrode designed for high-integrity mild and low-alloy steel fabrication
» Thin basic coating produces a concentrated and stable arc with excellent operator control
» 4.0mm diameter provides efficient weld metal deposition for structural filling and multi-pass welding applications
» Excellent penetration and gap-bridging characteristics make the electrode particularly suitable for demanding root pass welding
» Low diffusible hydrogen performance helps reduce the risk of hydrogen-induced cracking in critical welded structures
» Suitable for AC and DC welding power sources for versatility across workshop and site equipment
» Supports all standard welding positions except vertical down
» Excellent low-temperature impact toughness supports fabrication exposed to demanding service environments
» VacPac packaging protects the electrodes against atmospheric moisture and maintains their controlled low-hydrogen condition while sealed
» Moisture-resistant electrode classification provides additional resistance to hydrogen increases caused by atmospheric exposure
» Suitable for applications including heavy-walled pipework, pressure vessels, structural steelwork and offshore fabrication
» Classified to AWS A5.1 E7016-1 H4 R and EN ISO 2560-A E 42 5 B 1 2 H5
Technical Specifications
» Brand: ESAB
» Product Range: Filarc 56S
» Product Type: Low-Hydrogen MMA Welding Electrode
» Coating Type: Thin Basic
» AWS Classification: AWS A5.1 E7016-1 H4 R
» EN ISO Classification: EN ISO 2560-A E 42 5 B 1 2 H5
» Electrode Diameter: 4.0mm
» Packaging Type: VacPac
» Recommended Welding Current: 140–200A
» Typical Welding Current: Approximately 170A
» Current Type: AC Or DC
» DC Polarity: DC+ Or DC-
» Minimum Open Circuit Voltage: 65V
» Welding Positions: PA, PB, PC, PD, PE And PF
» Vertical-Down Welding: Not Suitable
» Yield Strength: =420MPa
» Tensile Strength: 500–640MPa
» Elongation: =22%
» Diffusible Hydrogen Classification: H4 / H5
» Carbon Content: Approximately 0.06%
» Manganese Content: Approximately 1.3%
» Silicon Content: Approximately 0.4%
