Hose Check Valve 3/8-5/16 R/H DA5003856RH
SKU:
10069173

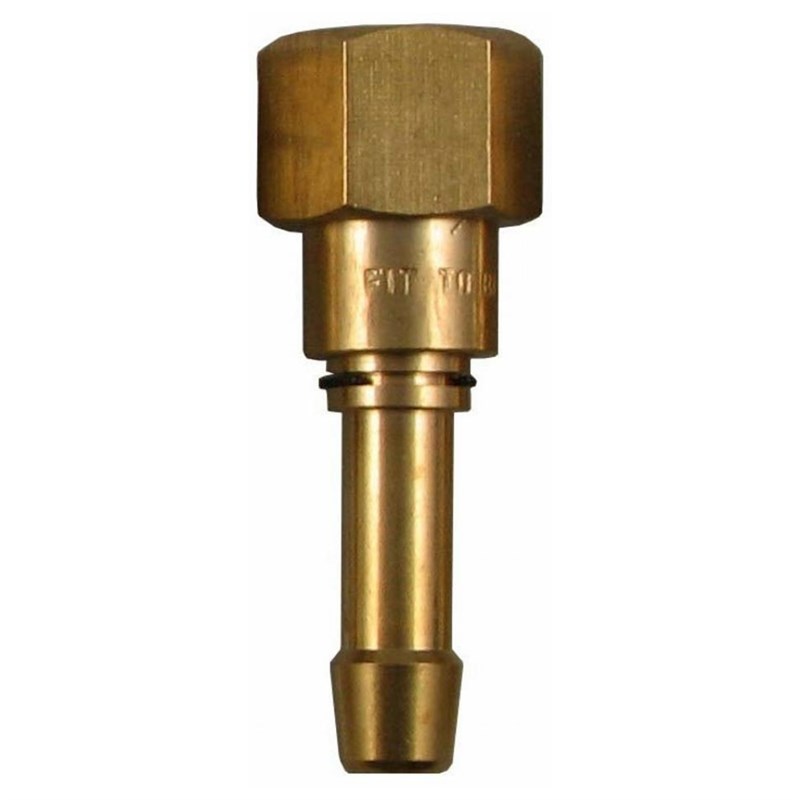

The Weldfast / Weldgas GAS5004 Double Safety Hose Check Valve is an oxygen non-return valve designed for installation at the torch end of oxy-fuel welding and cutting equipment. Featuring a 3/8" BSP female right-hand connection and 5/16" (8mm) hose tail, it helps prevent reverse oxygen flow and the potentially hazardous mixing of gases within the hose system.
Features & Benefits
» Double safety hose check valve designed specifically for oxygen lines on oxy-fuel welding and cutting equipment
» Non-return valve mechanism helps prevent reverse oxygen flow from the torch into the supply hose
» Spring-loaded internal valve automatically closes against reverse pressure to reduce the risk of gas back-feeding
» Right-hand threaded connection identifies the component for use on the oxygen side of the system
» 3/8" BSP female connection provides compatibility with appropriate torch-end fittings
» 5/16" (8mm) serrated hose tail is designed for secure connection to compatible 8mm internal diameter gas hose
» Solid brass body provides a durable construction for demanding workshop and site environments
» Directional design allows oxygen to flow towards the torch while restricting flow in the opposite direction
» Helps reduce the risk of oxygen and fuel gas mixing within the hose system
» Suitable for oxy-fuel welding, brazing, heating and cutting equipment using compatible oxygen hose systems
Technical Specifications
» Brand: Weldfast / Weldgas
» Product Code: GAS5004
» Manufacturer Part Code: DA5003856RH
» Product Type: Double Safety Hose Check Valve
» Valve Type: Non-Return Valve
» Gas Type: Oxygen
» Thread Connection: 3/8" BSP Female
» Thread Direction: Right-Hand
» Hose Tail Size: 5/16" (8mm)
» Compatible Hose Internal Diameter: 8mm
» Body Material: Brass
» Valve Mechanism: Spring-Loaded Non-Return
» Installation Position: Torch End
» Flow Direction: Towards Torch
» Function: Prevention Of Reverse Oxygen Flow
» Application: Oxy-Fuel Welding, Cutting, Brazing And Heating Equipment
