Plug Dinze Type 10-25 5110305 Binzel
SKU:
10024357

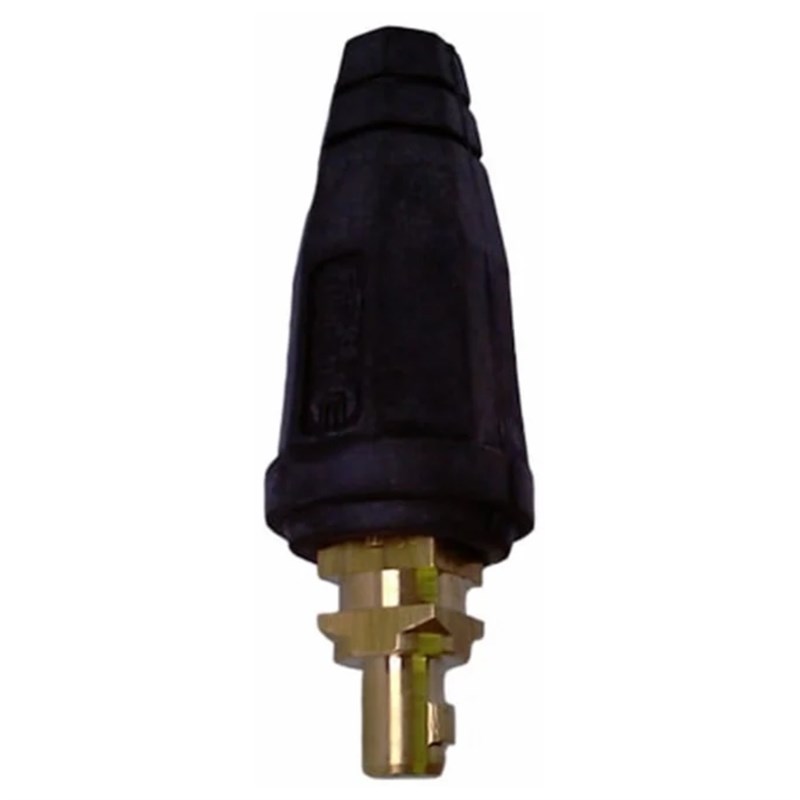

The Abicor Binzel 511.0305 ABIPLUG Male Welding Cable Plug is a professional Dinse-style connector designed for secure connection of 10mm² to 25mm² welding cables to compatible welding power sources. Featuring a 9mm male pin and quarter-turn push-and-twist connection, it provides reliable mechanical retention and efficient electrical current transfer. The precision-machined conductive components and heavy-duty insulating rubber boot provide excellent durability, electrical isolation and heat resistance, making the connector suitable for professional MMA, TIG and MIG welding equipment fitted with compatible 10-25 series sockets.
Features & Benefits
» Genuine Abicor Binzel ABIPLUG male welding cable connector for professional welding equipment
» Designed for welding cables with cross-sectional areas from 10mm² to 25mm²
» 9mm male Dinse-style pin fits compatible 10-25 series welding machine sockets
» Quarter-turn push-and-twist connection provides fast, secure attachment to the power source
» Precision-machined conductive components promote efficient current transfer with minimal electrical resistance
» Four-sided internal construction helps prevent the conductive core from twisting within the insulating boot
» Heavy-duty insulating rubber sleeve provides electrical, thermal and mechanical protection
» Secure connection helps minimise voltage drop, contact heating and premature terminal wear
» Supplied with the conductive lug, copper sleeve, locking grub screw and protective insulating boot
» Suitable for compatible MMA, TIG and MIG welding power sources
Technical Specifications
» Brand: Abicor Binzel
» Product Type: Male Welding Cable Plug
» Series: ABIPLUG / ABI-CM 10-25
» Part Number: 511.0305
» Connection Type: Dinse-Style Male Bayonet
» Connection Method: Quarter-Turn Push And Twist
» Cable Cross-Section Capacity: 10mm² To 25mm²
» Male Pin Diameter: 9mm
» Pin Length To Shoulder: 12mm
» Total Assembled Length: Approximately 74mm
» Brass Lug Length: 37mm
» Internal Cable Hole Depth: 16mm
» Copper Entry Sleeve Bore: 8mm
» Insulating Boot Width: 25mm Across Flats
» Insulating Boot Diameter: 28mm
» Insulating Boot Material: Neoprene Rubber
» Compatible Socket Series: 10-25
» Compatible Welding Processes: MMA, TIG And MIG
» Standard: EN 60974-12 / BS EN 60974-12
