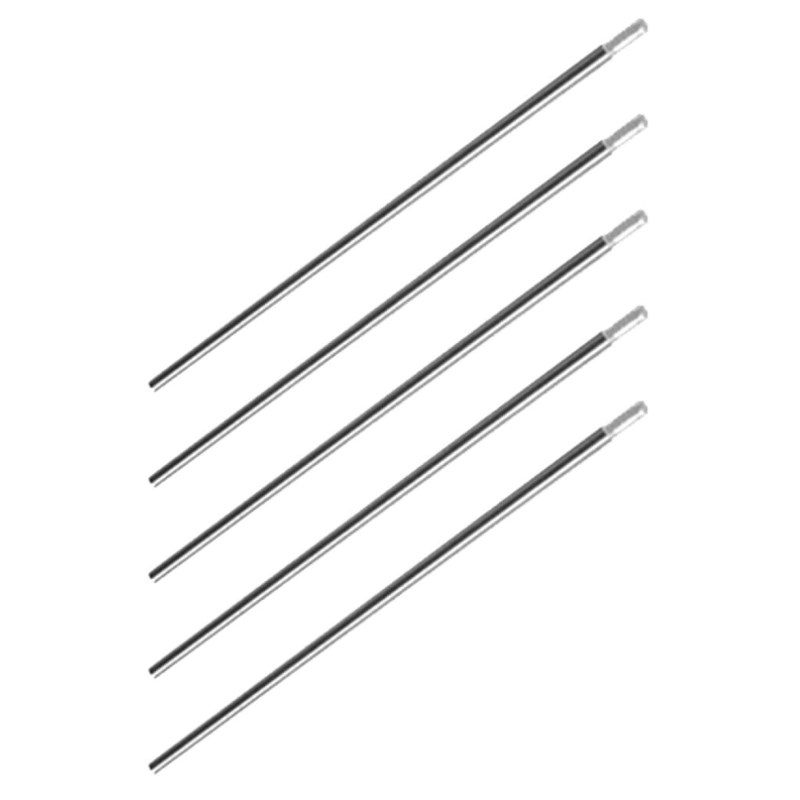

Tungsten Zirconiated 1.6mm White Tip 7000029
SKU:
10024379
The Abicor Binzel 1.6mm 0.8% Zirconiated White Tip Tungsten Electrode is a premium non-consumable TIG welding electrode designed primarily for precision AC welding applications. Featuring 0.8% zirconium oxide (WZ08), it provides excellent arc stability, reliable tip formation and strong resistance to tungsten contamination. Its 1.6mm diameter makes it particularly suitable for controlled TIG welding of aluminium, magnesium and their respective alloys.
Features & Benefits
» Premium 0.8% zirconiated tungsten electrode designed primarily for AC TIG welding
» Optimised for welding aluminium, magnesium and their respective alloys
» Zirconium oxide composition promotes excellent arc stability and consistent welding performance
» Forms a stable, concentric balled or domed tip during appropriate AC welding applications
» Excellent resistance to tip splitting, fragmentation and shedding under AC operation
» Helps minimise the risk of tungsten contamination entering the weld pool
» Stable arc characteristics provide excellent puddle control and accurate weld placement
» 1.6mm diameter is well suited to precision and lower-current TIG welding applications
» White tip provides quick visual identification of the WZ08 zirconiated classification
» Completely free from radioactive thorium
» Suitable for precision fabrication, thin-gauge aluminium work and other demanding AC TIG applications
Technical Specifications
» Brand: Abicor Binzel
» Product Type: TIG Tungsten Electrode
» Part Number: 700.0029
» Electrode Type: 0.8% Zirconiated
» Classification: WZ08
» Zirconium Oxide Content: 0.70% To 0.90%
» Electrode Diameter: 1.6mm
» Electrode Length: 175mm
» Tip Colour: White
» Electrode Type: Non-Consumable
» Preferred Polarity: AC
» DC Suitability: Limited / Not Recommended
» Suitable Materials: Aluminium / Magnesium / Aluminium Alloys / Magnesium Alloys
» Welding Process: TIG / GTAW
» Standards: ISO 6848 / EN 26848
» Radioactive: No
